Longitudical Finned Heating & Pump Cooling for Radiators or Textile Heating Systems

Name: Longitudical Finned Heating & Pump Cooling for Radiators or Textile Heating Systems
Brand: Gele
Availability: InStock
Rating: 4.4 (76 reviews)

FOB Price

USD $10 - $250 / Piece

10 Pieces(Min.Order)

Supply Ability 200 Piece / Pieces per Month
Port Guangzhou China
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Place of Origin:	Guangdong, China	Brand Name:	Gele
Model Number:	fin tube	Structure:	Tube Heat Exchanger	Liquid Flow Rate:	adjustable
Maximum Working Pressure:	3.0MPa	Voltage:	no need	Weight:	customized
Dimension(LWH):	customized	Power(W):	no required	Certification:	CE, Other, CE, ISO9001:2008
Warranty:	one year	After-sales Service Provided:	No overseas service provided

Product Description

Heat exchanger or industrial radiator fin tubes machine& fin coils& spiral pipes

Product Description

Tube material: GB8163 grade carbon steel, A179 Grade/ S/S304 or S/S316 Grade stainless steel, Coppe

Fin material: GB8163 grade carbon steel, A179 Grade/ S/S304 or S/S316 Grade stainless steel, Copper, Aluminium

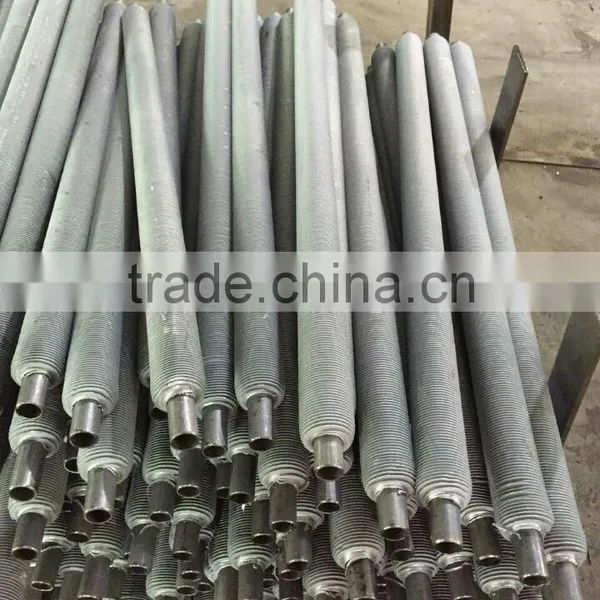

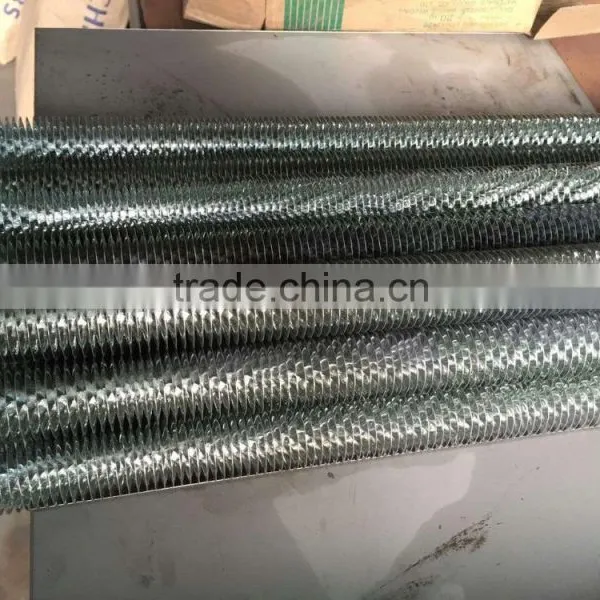

Processing/ Structure: spiral finned tube, extruded finned tube, strainght finned tube

Making Standard: GB/T14296-93

Fin tube detailed specification
Material	Specification	Fin OD	Heat exchanging area(M2)	Fin height	Fin thickness	Fin distance
Carbon steel tube with extruded aluminium fin	ODΦ18 X 2.0	Φ38	0.72	10	0.3	3
	ODΦ21 X 2.0	Φ45	0.96	12	0.3	3
	ODΦ21 X 2.0	Φ51	1.15	15	0.3	3
	ODΦ25 X 2.5	Φ50	1.2	12.5	0.3	3
	ODΦ25 X 2.5	Φ55	1.37	15	0.3	3
	ODΦ32 X 2.5	Φ62	1.56	15	0.3	3

Carbon steel tube with crimped carbon steel fin	ODΦ18 X 2.0	Φ38	0.57	10	0.3	4 to 5
	ODΦ21 X 2.0	Φ51	0.68	15	0.3	5 to 8
	ODΦ21 X 2.0	Φ45	0.76	12	0.3	5 to 8
	ODΦ25 X 2.5	Φ50	0.96	15	0.3	5 to 8
	ODΦ25 X 2.5	Φ55	1	15	0.3	5 to 8
	ODΦ32 X 2.5	Φ62	1.1	15	0.3	8 to 10
	ODΦ32 X 2.5	Φ72	1.21	20	0.3	8 to 10

Stainless steel tube with crimped stainless steel fin	ODΦ18 X 2.0	Φ38	0.62	10	0.3	4
	ODΦ21 X 2.0	Φ51	0.75	15	0.3	5
	ODΦ21 X 2.0	Φ45	0.87	12	0.3	5
	ODΦ25 X 2.5	Φ50	1	12.5	0.3	5
	ODΦ25 X 2.5	Φ55	1.25	15	0.3	5

Stainless steel tube with extruded aluminium fin	ODΦ18 X 2.0	Φ38	0.72	10	0.3	3
	ODΦ21 X 2.0	Φ51	0.96	12	0.3	3
	ODΦ21 X 2.0	Φ45	1.15	15	0.3	3
	ODΦ25 X 2.5	Φ50	1.2	12.5	0.3	3
	ODΦ25 X 2.5	Φ55	1.37	15	0.3	3
	ODΦ32 X 2.5	Φ62	1.56	15	0.3	3
All the unite is in mm

The specification can be designed as per customer's requirement.

Product Applications

End Application of Gele Heat Exchanger/ Radiator included GREENHOUSE, timber dryer, dry kiln, gravure printing M/C,printing and dyeing M/Dyeing and

finishing M/C, hot air stenter M/C,heat framing M/C, drying M/C, textile printing M/C,flat bed printing M/C, roto screen

printing M/C, ,rotogravure printing machine M/C;drying foodstuff, tea leaf, airconditioner; airflow drying starch

(starch dryer) and feedstuff, paper M/C,vegetable dehydration tunnel, oven drying , drying machine for plastic & leather

grunting , CAC heating and refrigeration, workshop constant temperature warming, drying and cooling brewer's malt,

tobacco splitting, swelling & drying ,drying dyestuff, chemical fiber, soda, latex, PVC, glutin , leather finishing M/C,

blanket setting machine, Laminating M/C, Oven

Production Flow

Heat exchanger manufacturing process in our factory
