Home > Products > multi-band antennas > High Quality GPS+WIFI Combination External Antenna

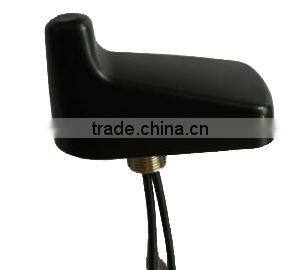

High Quality GPS+WIFI Combination External Antenna
- Guangzhou
- T/T Credit Card
You May Like
Product Details
| Brand Name | G-Antetech | Model Number | GA-GPS/WIFI-01 |
Product Description
Specifications
1.High quality GPS+WIFI Combination external antenna,2.GPS LNA Gain:28dBi;
3.Connector type: SMA /SMB/SMC or others
4. IP67
Combination GPS+WIFI Antenna
| Item | Specifications | ||
| GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±1MHz |
| Band Width | CF±5MHz | ||
| Polarization | RHCP | ||
| Gain | 2dBic(Zenith) | ||
| V.S.W.R | <1.5 | ||
| Impendance | 50Ω | ||
| Axial Ratio | 3dB(max) | ||
| LNA | Gain | 28±2dB | |
| Noise Figure | <1.5 | ||
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | ||
| V.S.W.R | <2.0 | ||
| Supply Voltage | 2.2~5V DC | ||
| Current Consumption | 5~15mA | ||
| WIFI Antenna | Frequency Range | 2400~2500MHz | |
| Band Width | 100MHz | ||
| Polarization | Linear | ||
| Gain | 3dBi | ||
| V.S.W.R | <2.0 | ||
| Impendance | 50Ω | ||
| Mechanical | Cable | RG174 | |
| Connector | SMA/MCX/FAKRA or others | ||
| Material | ABS | ||
| Mounting Method | Screw | ||
| Environmental | Operating Temperature | -40'C~+85'C | |
| Relative Humidity | Up to 95% | ||
| Ingress Protection | IP65~IP67 (exclude cable outlet) | ||
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
| Environmentally Friendly | ROHS Compliant | ||
