Low Noise Screw Mounting GPS Active Antenna 2.2~5V
- Guangzhou shenzhen HK
- T/T Money Gram Credit Card
You May Like
-
Free Sample High Quality GPS Active Built-in Internal Antenna 25x25mm
-
GPS Built-in Antenna With Switch
-
GPS Active Built-in Internal Antenna Size 15x15x7.5mm
-
(China Facotry) Free Sample Competitive GPS Marine Active Antenna
-
China Supplier High Quality GPS Active External Antenna
-
High Quality GPS Built-in Antenna Small Size 13x13mm
Product Details
| Place of Origin | Guangdong, China | Brand Name | G-antetech | |
| Model Number | GA-GPS-04 |
Product Description
Specifications
1.GPS Active external antenna with Screw mouting2.Center Frequency 1575.42MHz+-3 MHz
3Connector SMA/SMB/SMC/BNC/FME/TNC/MCX

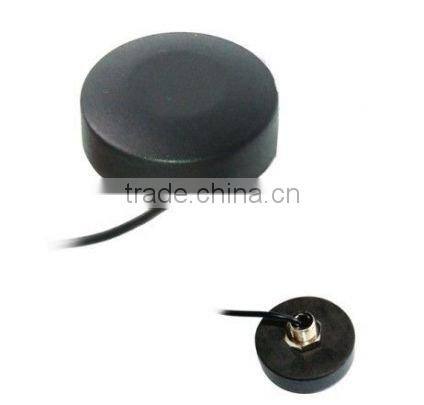

Low Noise Screw mounting GPS Active antenna 2.2~5V
Item | Specifications | |
Antenna | Center Frequency | 1575.42±1MHz |
Band Width | CF±5MHz | |
Polarization | RHCP | |
Gain | 5dBic(Zenith) | |
V.S.W.R | <1.5 | |
Impendance | 50Ω | |
Axial Ratio | 3dB(max) | |

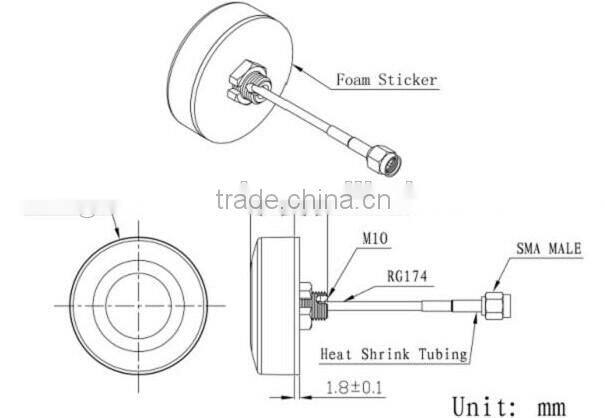

Dimension | 46*15mm | |
LNA | Gain | 28±2dB |
Noise Figure | <1.5 | |
Filter Insertion Loss | <3dB | |
Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
Supply Voltage | 2.2~5V DC | |
Current Consumption | 5~15mA | |
V.S.W.R | <2.0 | |
Mechanical | Cable | RG174 |
Connector | SMA/MCX or others | |
Radome Material | ABS | |
Mounting Method | Screw | |
Environmental | Operating Temperature | -40℃~+85℃ |
Relative Humidity | Up to 95% | |
Ingress Protection | IP67 (exclude cable outlet) | |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
Environmentally Friendly | ROHS Compliant | |

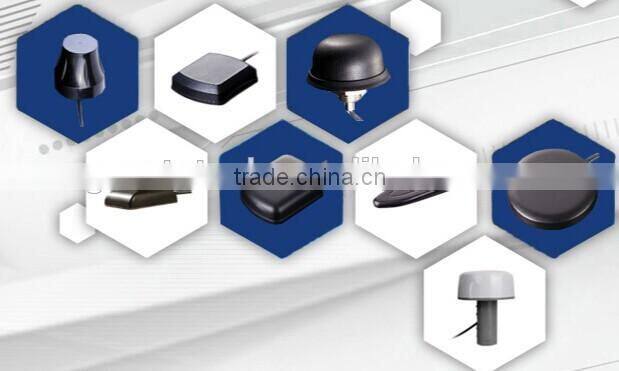

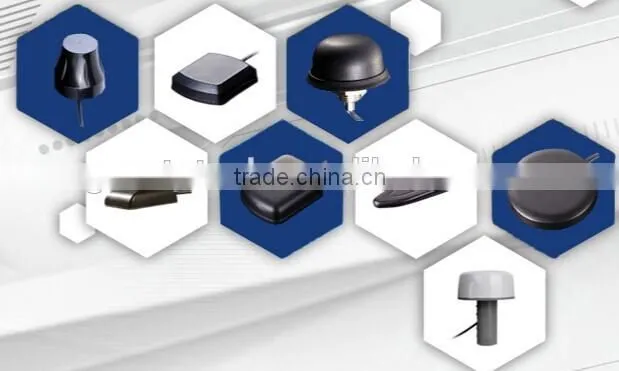

Our Other GPS Antennas as followings
