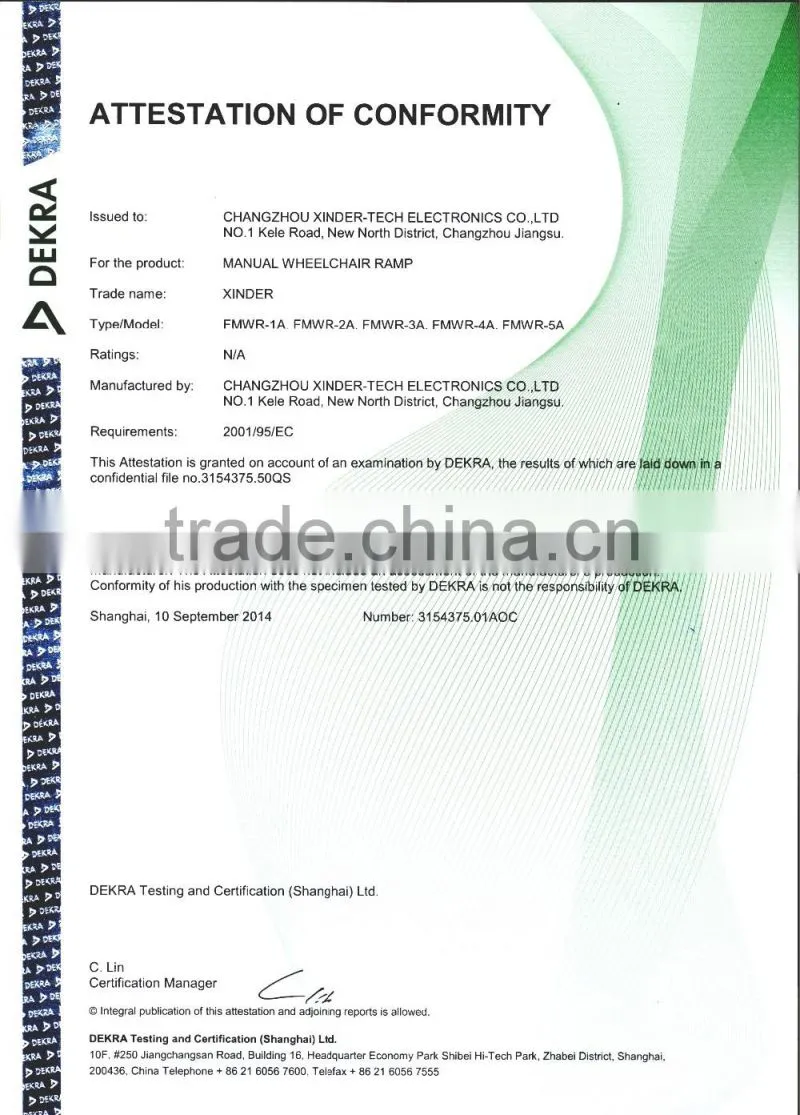

Help CenterHandicap Disabled Manual Wheelchair Ramp Slope for City Bus With CE Certificate
Related Products
-
CE Certificated Customization Folding Manual Wheelchair Ramp With 350kg Loading for BusNegotiableMOQ: 1 Piece -
XINDER CE MWR Model Manual Folding Wheelchair Ramp for Disabled and Wheelchairs Used on Low Floor City BusNegotiableMOQ: 1 Piece
-
XINDER Manual Wheelchair Bus Ramp for Disabled With CE Qualified From ChinaUS$ 1,000 - 1,000MOQ: 1000 Sets
-
350KG CE Quality EWR Electric Portable Wheelchair Ramp for the Disabled and Old Used on Low Floor City BusNegotiableMOQ: 1 Piece
-
350KG Loading Electric Wheelchair Ramp for City BusNegotiableMOQ: 1 Piece
1. Introduction

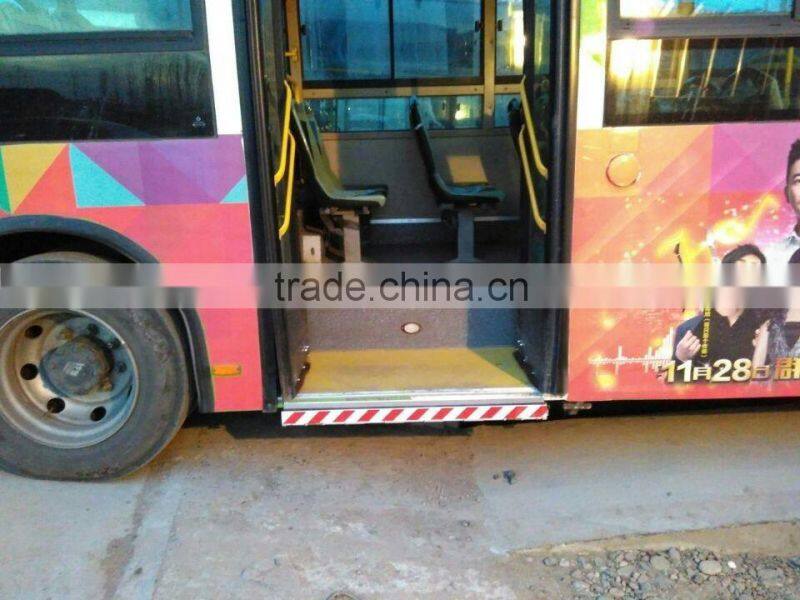

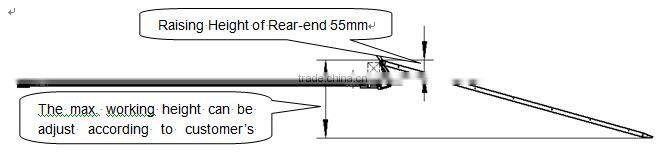

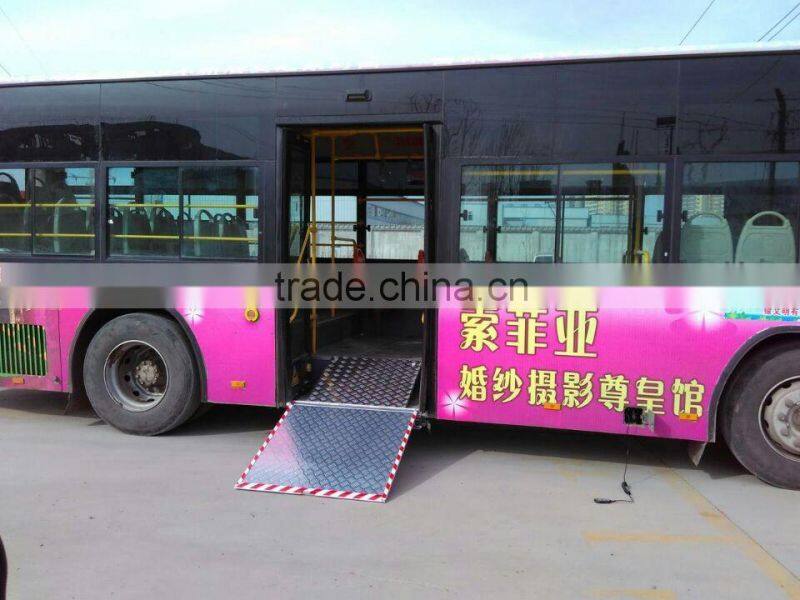

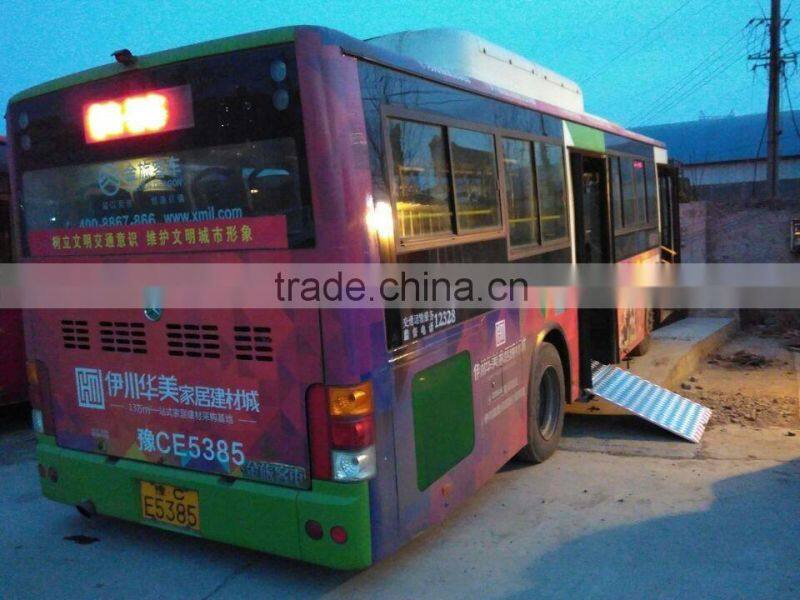

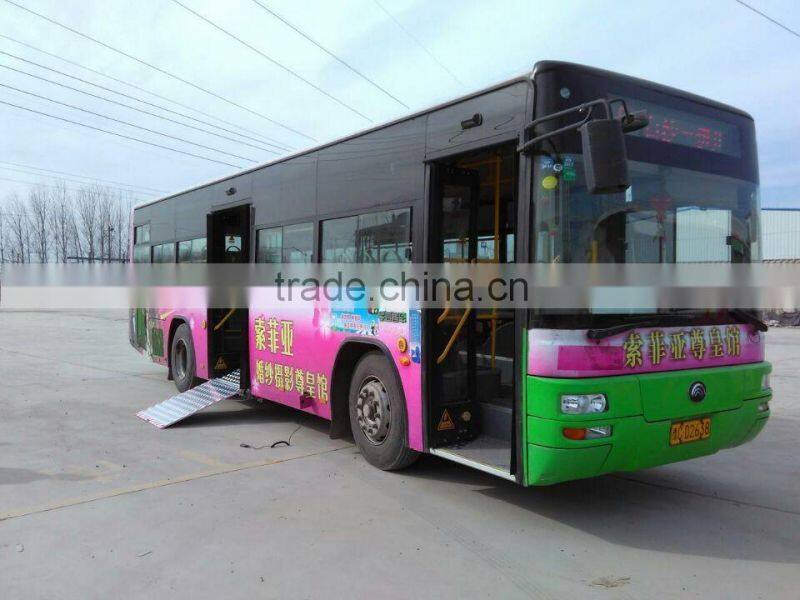

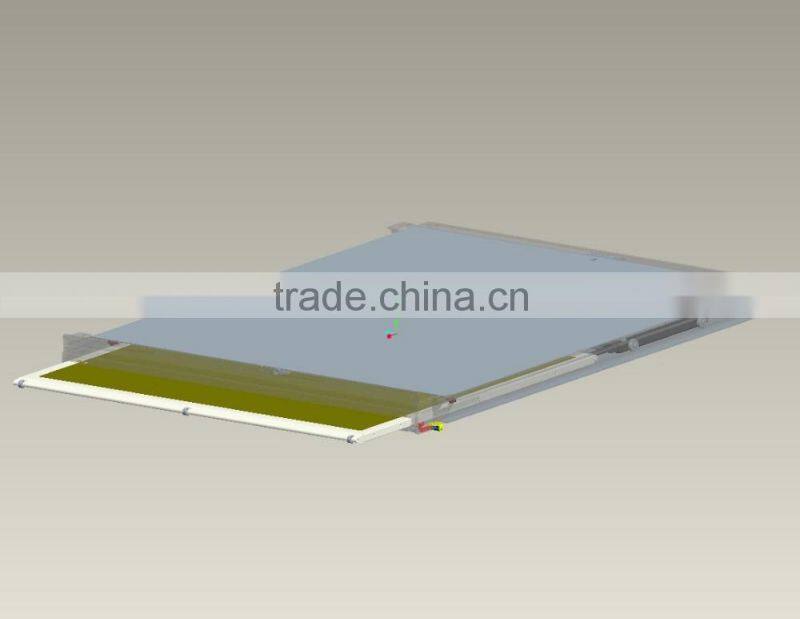

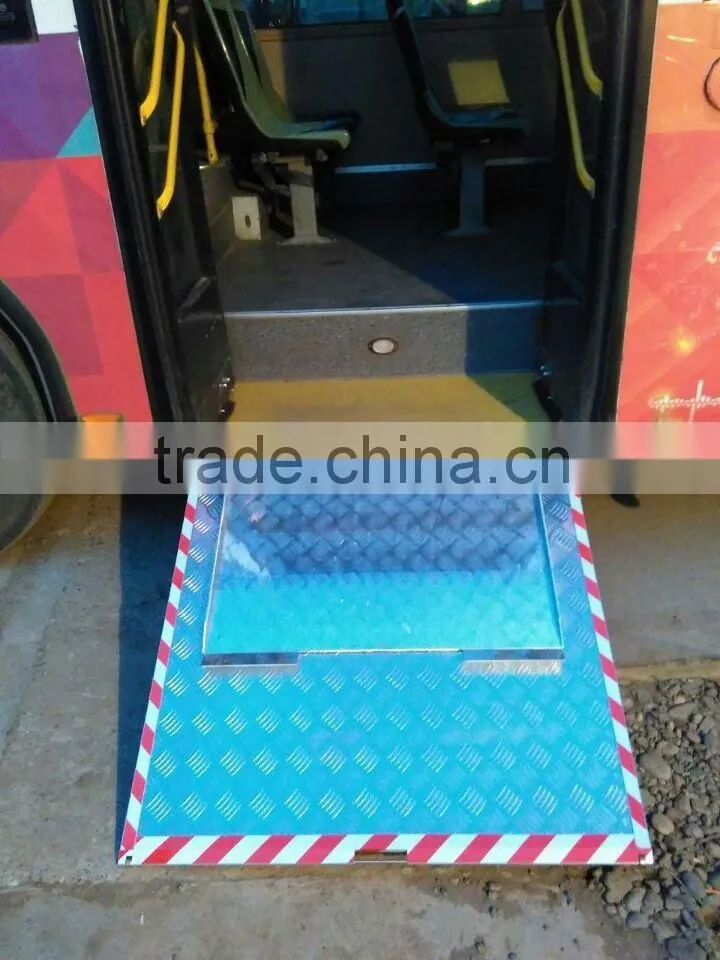

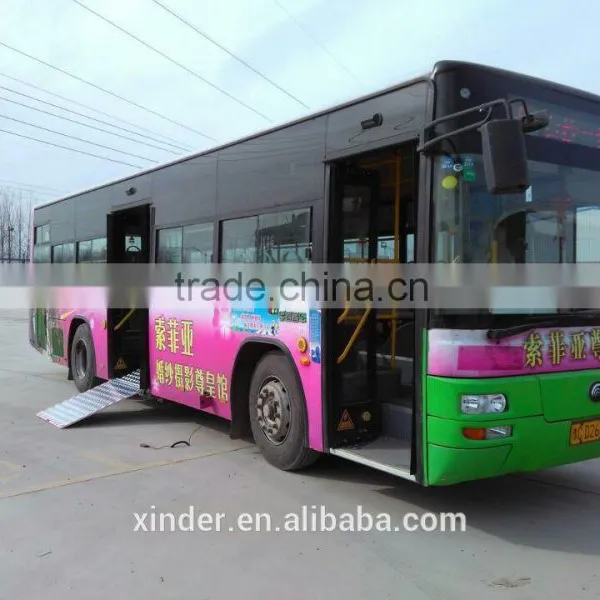

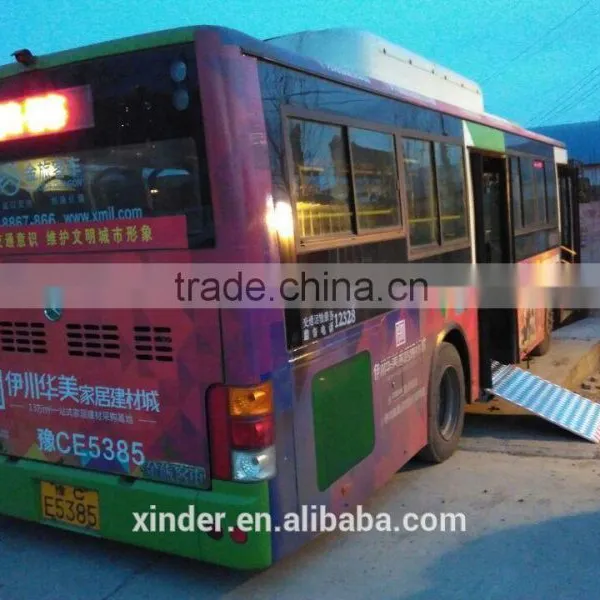

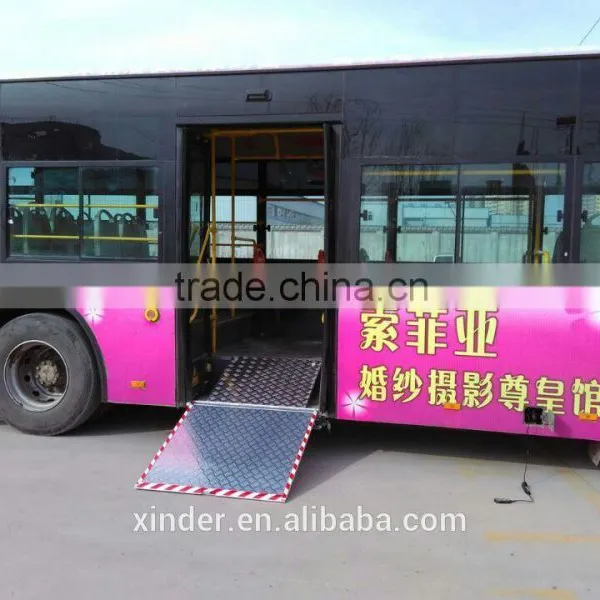

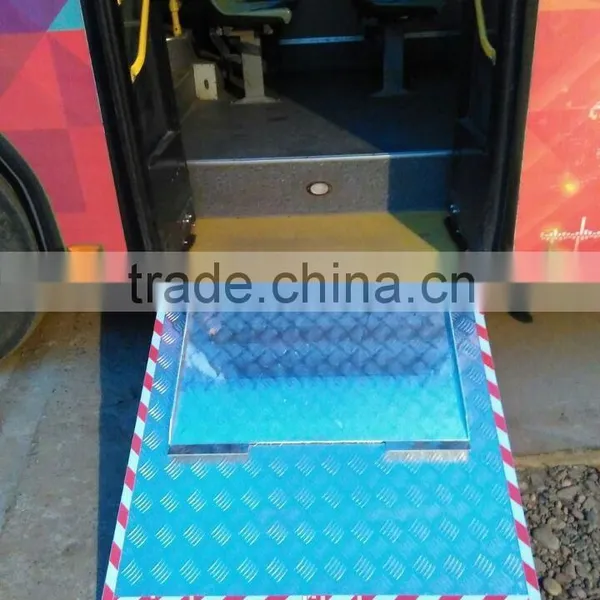

Manual wheelchair ramp can be applied for low-floor city bus, and it is installed under the side of passenger door’ step. When the bus arrives at bus station, the driver unlocks the front cover and pulls the platform of the ramp out. After the platform reaches final position, rear-end of the ramp will be raised to eliminate height of threshold of passenger door so as to ensure rear-end of the platform level up to the bus floor, convenient for wheelchair to access the bus. After the wheelchair gets on the bus, retract the platform manually.

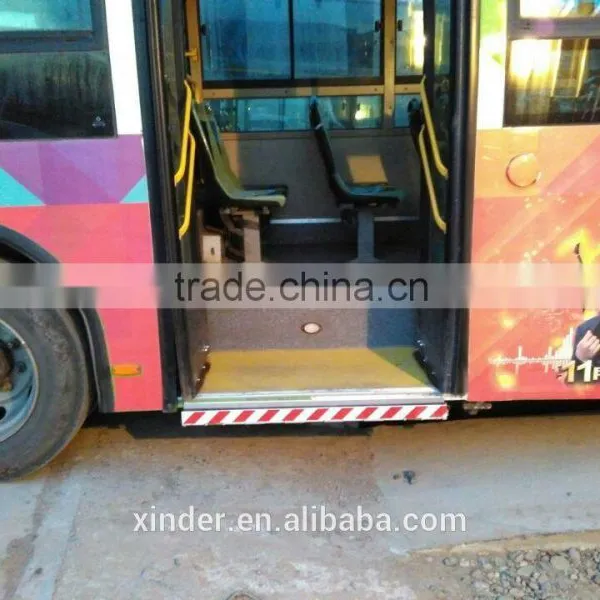

The manual wheelchair ramp is fixed with the frame under the floor of the passenger door by 4 brackets. These brackets are composed of 16 bolts (M10*20) and nuts and spring washers and flat washers (the diameter is 10mm).

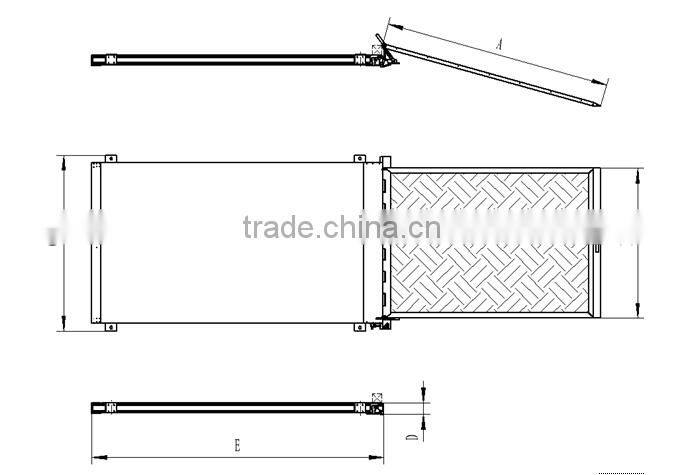

2. Technical Parameter
Model |
Platform Net Size (A×B) |
Overall Width (C) |
Overall Height (D) |
Overall Length (E) |
Loading Capacity |
Own Weight |
MWR-1 |
1054*988 |
1124 |
62 |
1416 |
350 Kg |
40 Kg |
MWR-2 |
1208*800 |
936 |
60 |
1556 |
350 Kg |
40 Kg |

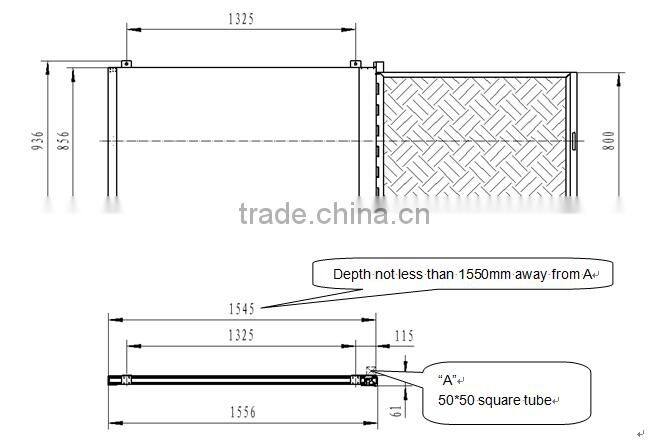

3. Installation Requirement
Min space required to install ramp unit: mm
Model |
Net Width of Door |
Accessible Width Under Vehicle |
Accessible Height Under Vehicle |
Accessible Depth Under Vehicle |
Remark |
MWR-1 |
998 |
1090 |
200 |
1415 |
|
MWR-2 |
810 |
940 |
200 |
1550 |
