Help CenterXINDER CE MWR Model Manual Folding Wheelchair Ramp for Disabled and Wheelchairs Used on Low Floor City Bus
Related Products
-
XINDER Manual Wheelchair Bus Ramp for Disabled With CE Qualified From ChinaUS$ 1,000 - 1,000MOQ: 1000 Sets -
350KG CE Quality EWR Electric Portable Wheelchair Ramp for the Disabled and Old Used on Low Floor City BusNegotiableMOQ: 1 Piece
-
350KG Loading Electric Wheelchair Ramp for City BusNegotiableMOQ: 1 Piece
-
350kg Loading FEWR Platform Electric Folding Wheelchair Ramp for City-busNegotiableMOQ: 5 Sets
-
FEWR Electric Aluminium Wheelchair Ramp Anti Platform on Bus For the Handicap and DisabledNegotiableMOQ: 5 Units
1. Introduction

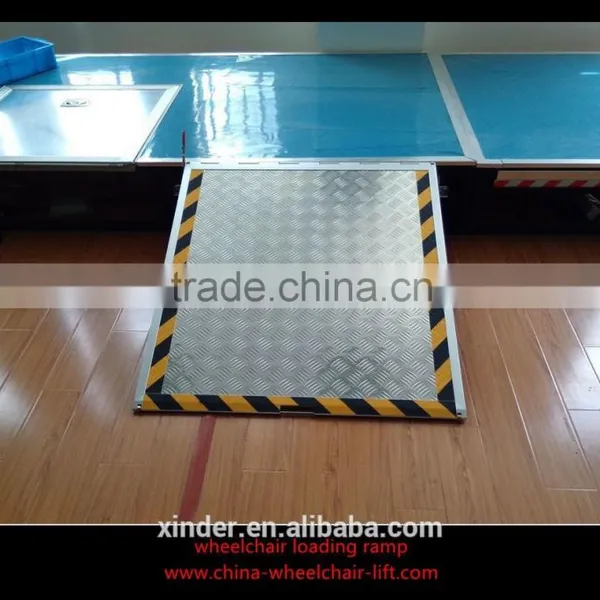

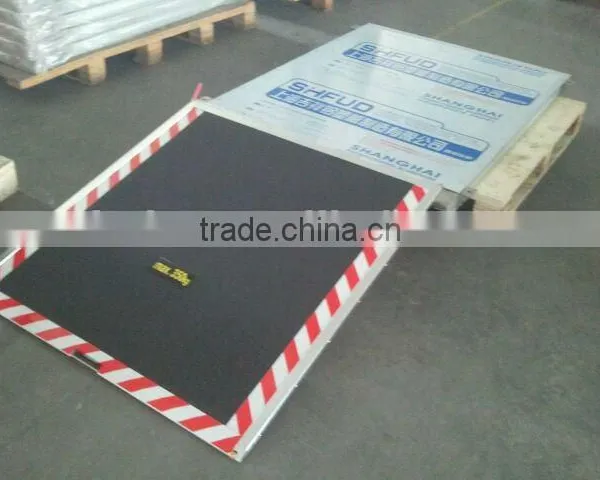

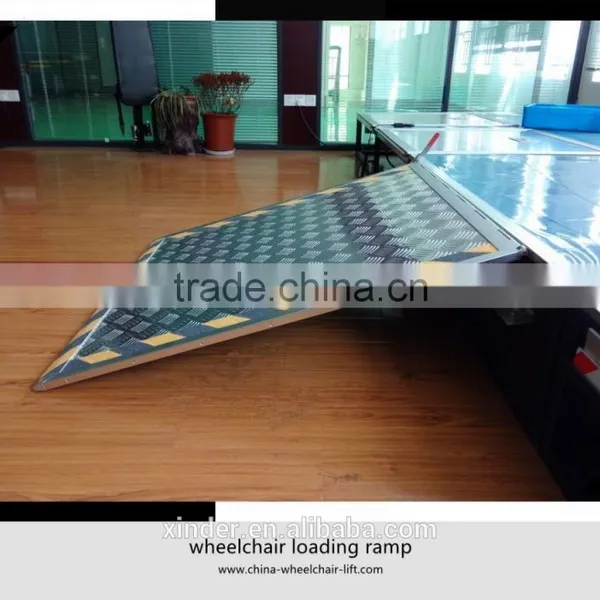

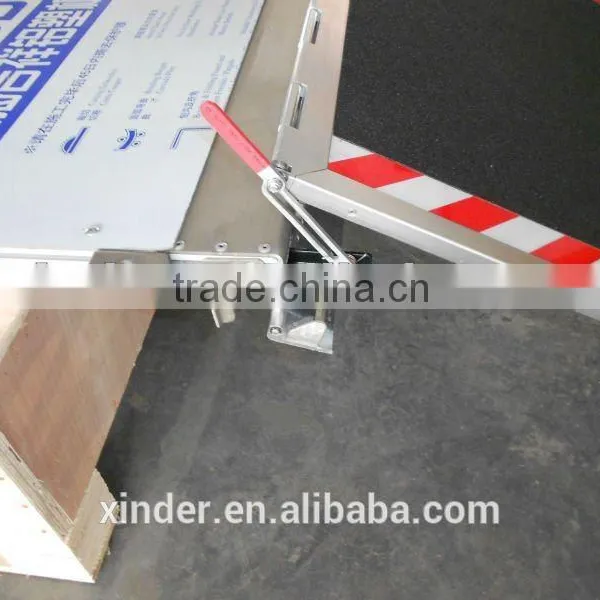

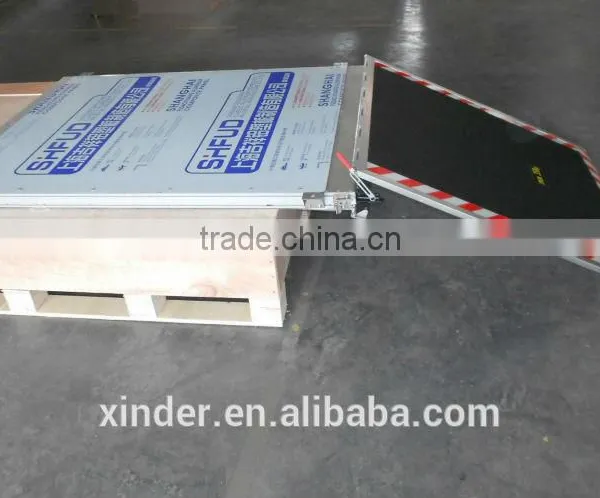

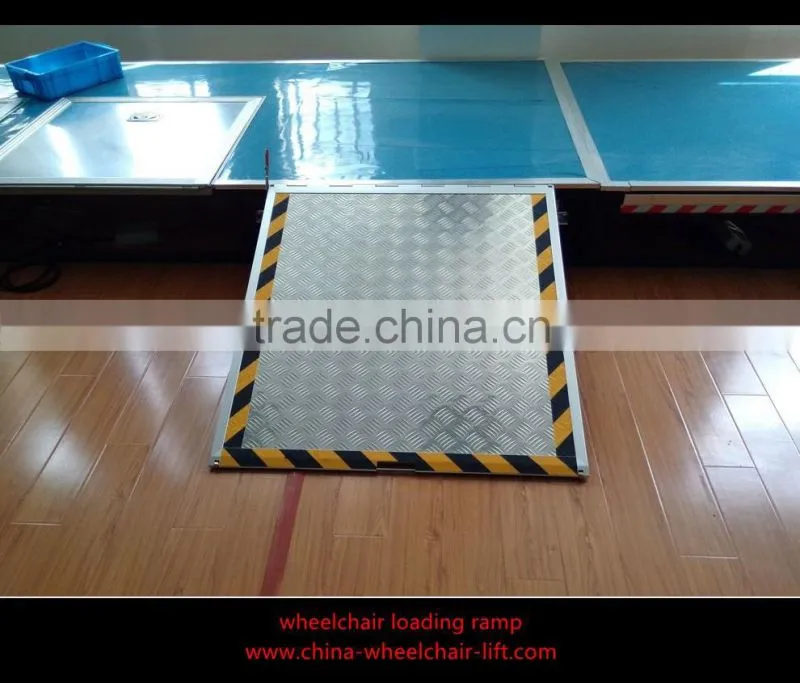

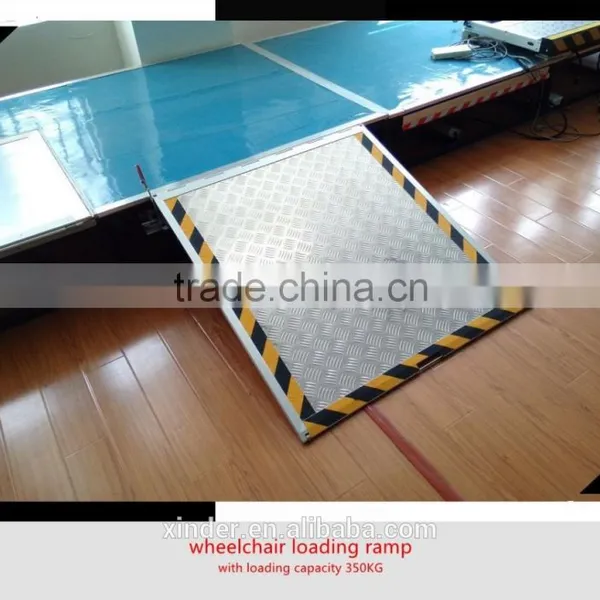

Manual wheelchair ramp can be applied for low-floor city bus, and it is installed under the side of passenger door’ step. When the bus arrives at bus station, the driver unlocks the front cover and pulls the platform of the ramp out. After the platform reaches final position, rear-end of the ramp will be raised to eliminate height of threshold of passenger door so as to ensure rear-end of the platform level up to the bus floor, convenient for wheelchair to access the bus. After the wheelchair gets on the bus, retract the platform manually.
The manual wheelchair ramp is fixed with the frame under the floor of the passenger door by 4 brackets. These brackets are composed of 16 bolts (M10*20) and nuts and spring washers and flat washers (the diameter is 10mm).
2. Technical Parameter
Model |
Platform Net Size (A×B) |
Overall Width (C) |
Overall Height (D) |
Overall Length (E) |
Loading Capacity |
Own Weight |
MWR-1 |
1054*988 |
1124 |
62 |
1416 |
350 Kg |
40 Kg |
MWR-2 |
1208*800 |
936 |
60 |
1556 |
350 Kg |
40 Kg |
3. Installation Requirement
Min space required to install ramp unit: mm
Model |
Net Width of Door |
Accessible Width Under Vehicle |
Accessible Height Under Vehicle |
Accessible Depth Under Vehicle |
Remark |
MWR-1 |
998 |
1090 |
200 |
1415 |
- |
MWR-2 |
810 |
940 |
200 |
1550 |
|
Packaging Details:
1) Internal packaging:be packed air bubble film inside first
2) External packaging:be packed in wooden cases
Delivery and shipping Details:
1)Usually be shipped by maritime transport
2)if it is landlocked countries, generally
land and sea transport.
3)15—30 days after confirmation of the purchase order
we use wooden case pack for wheelchair lift,wheelchair ramp and swivel seat
We use Carbox for Electric step,wheelchair restraint system
Q1. What is your terms of packing?
A: Generally, we pack our goods in wooden case. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q3. How about your delivery time?
A: Generally, it will take 5 - 15 days after receiving your payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and platform size,
OEM we are also welcome.
Q5.Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first, if agree, we can tell u.
At the same time, pls rest assured that your information is also safe here.
Q6. How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
WL-UVL Series Wheelchair Lift
EWR series Electric Wheelchair Ramp
FMWR series Manul Wheelchair Ramp
X-801-1 Wheelchair Restraint System
