CE certificated customization Folding Manual Wheelchair Ramp with 350kg loading for bus
FMWR-A series manual Folding Ramp Have Passed CE CERTIFICATE
1. Introduction

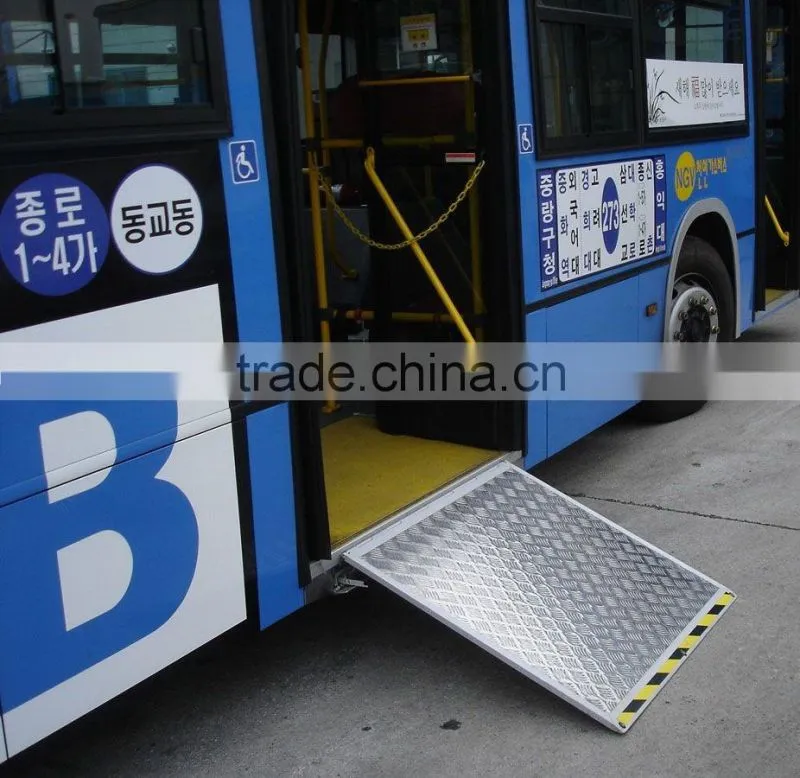

This FMWR-1A fold manual wheelchair ramp can be applied for low-floor city bus, and can be installed on the vehicle floor.
It also should be controlled manually and the material of base is aluminum. It is installed on the vehicle floor, when need it, you just unfold the ramp. There will be a slope which can help the disabled get into/out of vehicle.
The operation of manual wheelchair ramp is easy, simple, independent and wholly manual, because
it doesn’t need to connect with vehicle electric system. This ramp takes no space of vehicle.
Moreover, the platform of ramp and the floor of vehicle are at the same level, so there is no effect for passengers.
2. Technical Parameter
Driving Mode: |
Manual |
Dead weight: |
32kg |
Max Loading Capacity: |
350kg |
Weight of working platform: |
15kg |
Main material: |
aluminum & iron |
Test: |
100000 times |
3.Safety Function:
Ø Adopt anti-skid aluminum plate on the surface of platform
Ø With danger symbol on the outer-edge of ramp
Ø The ramp is interlocked with passenger door.
4. Installation :
Be installed on the vehicle floor. When need it, you just unfold the ramp. There will be a slope which can help the disabled get into/out of vehicle.
5. DIMENSIONS
Unit: mm
Model |
Platform Net Size (A×B) |
Overall Width (C) |
Overall Height (D) |
Overall Length (E) |
Effective height(F) |
Platform weight |
FMWR-1A |
885*920 |
952 |
40.5 |
903 |
20.5 |
15 Kg |
FMWR-2A |
976*920 |
952 |
40.5 |
993 |
20.5 |
15 Kg |
FMWR-3A |
805×920 |
952 |
40.5 |
820 |
20.5 |
15 Kg |
