High quality air classifier grinding mill for rock grinding stone grinding
- 100 Set / Sets per Month
- Chengdu&Guangzhou&Shenzhen
- Credit Card
Product Details
Condition: | New | Type: | Other, JET MILL | Motor Type: | AC Motor |
Power(W): | 5-7KW | Capacity(t/h): | 8-20KG/H | Place of Origin: | Sichuan, China |
Brand Name: | CDOUR | Model Number: | JSDL-JS818 | Dimension(L*W*H): | depend on the model |
Weight: | According to model | Certification: | CE&ISO | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High quality air classifier grinding mill for
rock grinding stone grinding

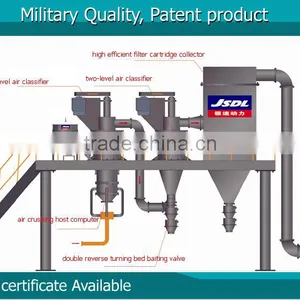

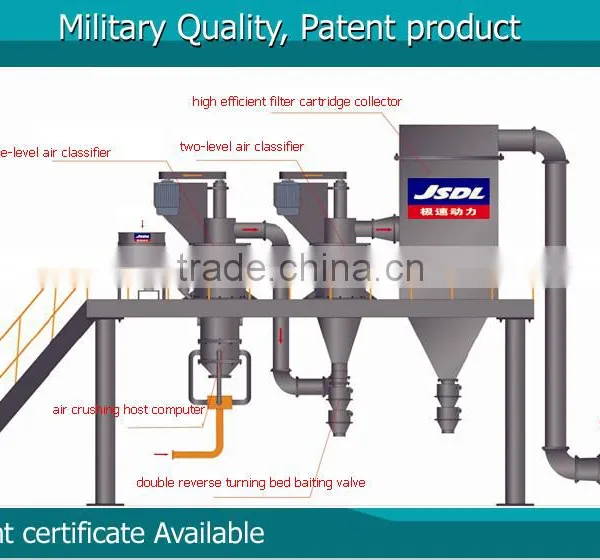

Working principal:
The machine’s dynamic power adopts purified and compressed air, which sprays in a high speed to the smashing room through a special ultrasonic nozzle. The air can works with a highly speed with the material carried, thus, making the material cause a strong collision, friction and crop with each other and then smash the material completely and go into the collecting system finally. The smashed material goes up to classifier room. The particle size that meet requirement can pass the forcing impeller but the size that failed to meet requirement would go back to the smashing room and continuing to smash once again. The whole production is a continued totally-enclosed operation. There are no dust pollution and the air would be purified through filtering the contaminations.
Especially designed for rock stone, marble and ore
The advantage of the machine:
- Mass yield, low energy-consumption and high efficiency of classifying.
- Particle size centralization: the machine adopts an original vertical impeller to classify. This stable classifying skill and the special enclosed measure effectively stop the coarse grain leakage, thus, there are all small particles in the end and all of these are of high centralization as well as of high precision.
- Rational structure: it can produce 1-6 particle sized productions at the same time according to customer’s requirement.
- Strong applicability: it can works with a closed circuit or opened circuit formations, such as the Air Mill, Machine Mill, Ball Mill, Raymond Mill and Vibrating mill and so on.
- High degree of automation: the impeller classifiers of all or different levels adopt electronic stepless frequency conversion. Not only electronic controlling will be achieved in the process of the automatic multi-part collecting dust, but improves machine’s stability to resist compression.
Technical parameters :
Model |
Max feed size |
Discharging size |
Production capability
|
Installed power |
Gas consumption
|
JSDL-JGS18 |
<1mm |
0-60um |
8-20kg/h |
5-7kw |
3m3/min |
JSDL-JGS18-1 |
<1mm |
0-60um |
8-20kg/h |
7-10.7kw |
3m3/min |
JSDL-JGS36 |
<1mm |
0-60um |
20-50kg/h |
7-10.5kw |
6m3/min |
JSDL-JGS36-1 |
<1mm |
0-60um |
20-50kg/h |
10.517kw |
6m3/min |
Chengdu OUT Trading Co,. Ltd is company that professionally producing and trading microgrinders for more than 3 years. Be located in Chengdu, Sichuan Province, the southwest city of China. We have our own factory in Mianyang, which was set up in 1998 and cooperated with military basement. For the past 17 years, we successfully obtained the patented certificates through thousands of hundreds strict tests and continuouly provide high quality products to the customers both in China and overseas. Products also can be customized according to your needs. High quality products and best service make us stand in this field for more than 15 years, and we believe that these two points will also bring you and your clients satisfactions.
About factory
1. Our company has been in this field for more than 18 years. All the products are patented products and military products, quality would be 100% guaranteed!
2. Factory -located in Mianyang, Chinese people's liberation army 63820,575 workshop.
3. Quality -powerful military aerospace strength, the machine can operate 29 days continuously without rest.
4. Engineer-our engineer are both air power ultra expert with overall R&D strength and comprehensive competence, which can design the jet mill or redesign mill according customers' requirements.
Service
we have professional sales team for pre-sales and after-sales services, also we will send engineer to your factory if you need.
We believe that our perfect products and excellent services will establish a win-win business relationship with you.
