Output current 6-160A hot forging induction heating power (WZP-90KW)

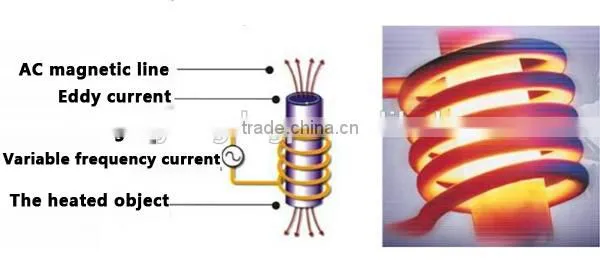

What is induction heating?
Put workpiece into the sensor. The sensor is hollow brass tubes, which is generally input intermediate frequency or high frequency alternating current (300-300000Hz or higher). Generating an alternating magnetic field with the same frequency of the induced current in the workpiece. The induced current distribution in the workpiece is uneven: surface strength, while weak in the interior, the central portion close to 0. Use the skin effect enables rapid heating of the surface of workpiece.The surface temperature rises to 800-1000 ℃ within a few seconds, while the central portion temperature is small.
Technical parameters of Yongda WZP Series hot forging induction heating power
Model(KW) |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-15 |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
WZP-40 |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
WZP-50 |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
WZP-70 |
320-420V |
6-120A |
15-30KHZ |
0.3MPA |
WZP-90 |
320-420V |
6-160A |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-200A |
15-30KHZ |
0.3MPA |
WZP-160 |
320-420V |
6-300A |
15-30KHZ |
0.3MPA |
WZP-200 |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
WZP-260 |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |

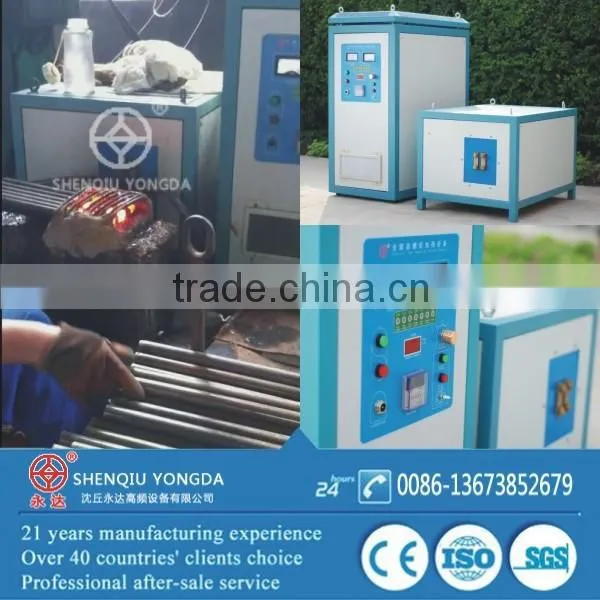

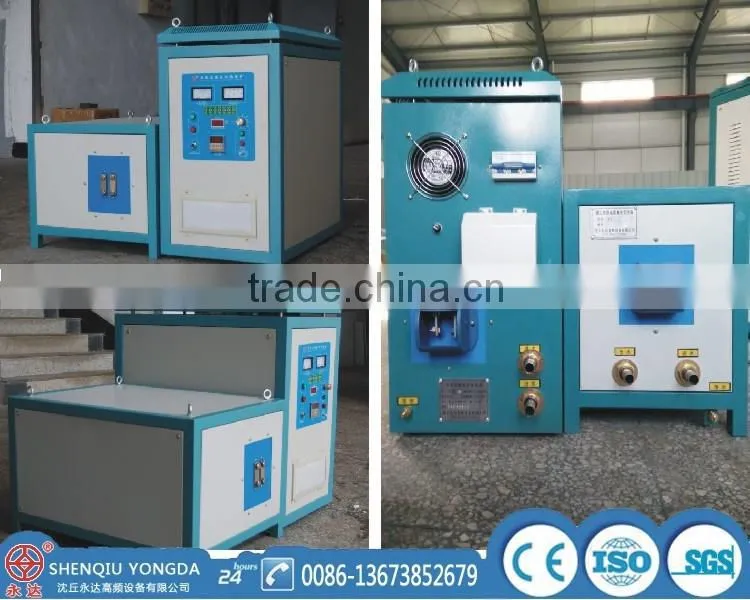

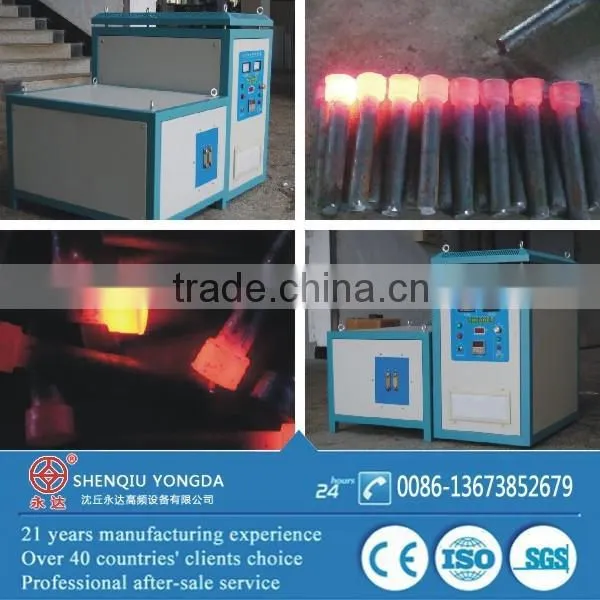

Photo of WZP-90 KW induction heating power
Features of hot forging induction heating power
1, my company transistor (IGBT) high frequency power-saving than vacuum tube up to 40-60%, saving 60%, external support facilities to reduce investment by 75%.
2, a unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
3, small size, light weight, easy to move, no million-volt high-voltage danger, safe operation.
4, high reliability, easy to maintain and improve the over voltage, over current, overheating, lack of, water and other self-protection.
5, use large scale integrated circuit digital automatic control, with manual, automatic, semi-automatic, and the lack of heat insulation of cold sub-time control functions.
6, automatic frequency tracking, stepless power adjustment, easy to use, 10 minutes to learn to use.
7, the company has a complete sales service system and the treatment of professional engineers, to ensure that you have no worry about technology or service.

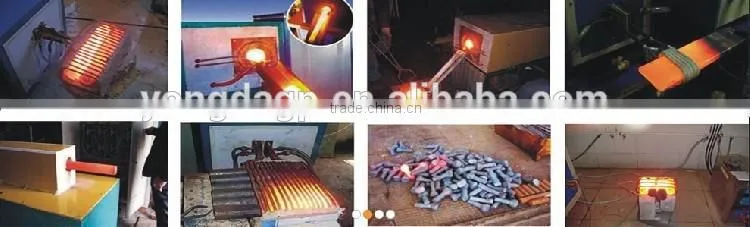

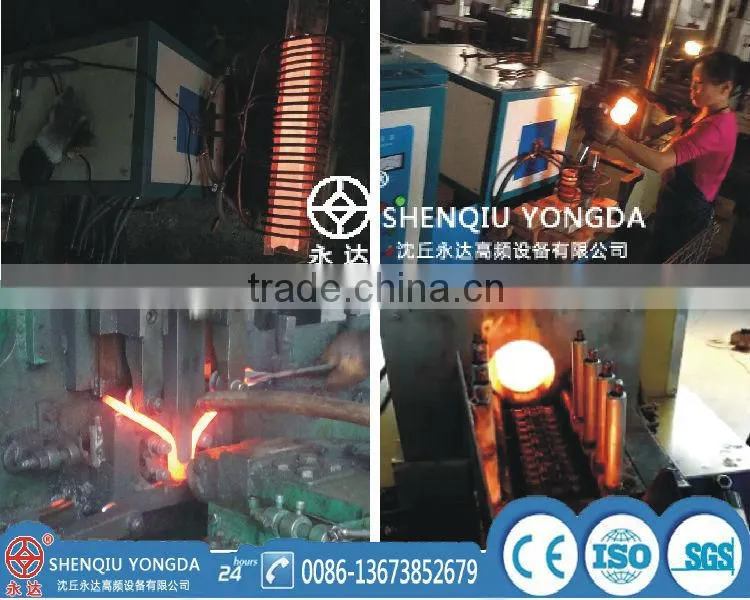

Yongda induction heating power hot forging metal onsite
Applications of hot forging induction heating power
(1) Hot forging round steel categories:
A. bolts, nuts, drill head hot forge, the car U-bolts, anchor bolt, connecting rod, non-standard parts processing, conductive rod
B. stainless steel tableware, stainless steel bolts and nuts
C. tools: pliers, bolt cutters, pipe clamp, water pump pliers, pliers, wrenches, ratchet wrenches, masonry chisel,
D. Other: sewing gadgets, jack head, boss chair, shackles, hand rings, flowers Lancashire body, feet kidnapper, tricycle axle, briquettes machine Chong-pin, roll gate axis, articulated manifolds, hot-rolled twist drill, Hot-rolled rebar, hot-rolled woodworking drill, bearing
(2) Hot forging sheet/plate categories:
A. forged stainless steel cutlery, automotive steel plate.
B. sheet folding: folding iron hand jack, metal folding channel, automotive steel, hot rolled construction steel buckle, automotive leaf spring
C. embossed: Iron Works embossing, embossing motorcycle brake pedal heating, sanitary ware.
D. Forming: bending, upsetting head, punching, flatten, step by step tight angle iron molding, from nails, rasp, sanitary ware
(3) pipe deformation: pipe heat distortion, fire extinguishers stretching, stretching cylinders, fans rose shaped brackets bend, pipe up hole, bicycle fork shrinkage, food machinery punching
(4) other categories:
Electric Vehicle wrist, drill rod, drill bits, copper pieces (communication, air conditioning parts), trains pin, watch cases, railway rail pressure ring.

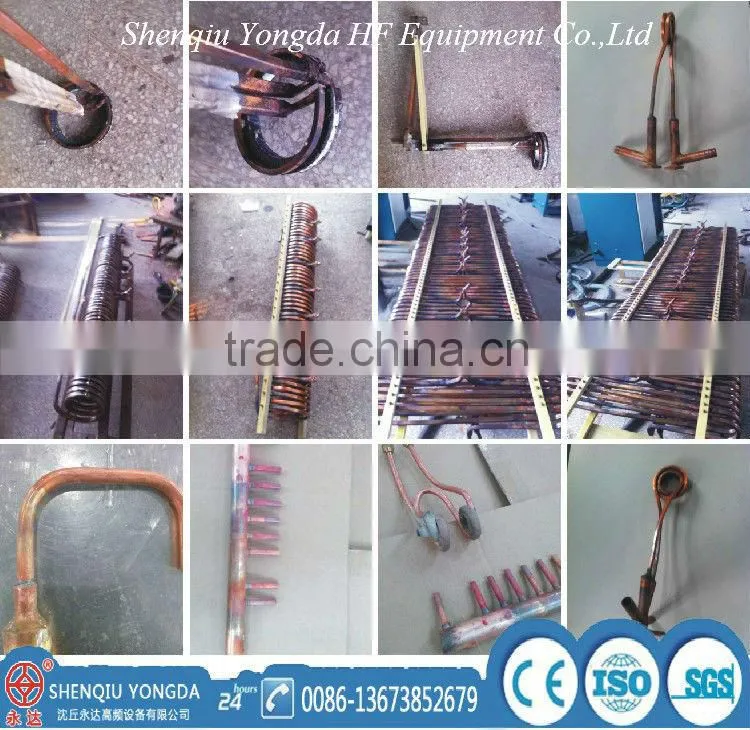

Induction coils is customized by our professional technical master ,according to size of your work pieces
Packing for hot forging induction heating power:
1.Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: induction coils,foot switch and installing and operating instructions
3.Shipping: by sea LCL(less than container load) or by air.
4. G.W:188KGS, Total volume: 0.77CBM
1. Reply your inquiry within 24 hours
2. Recommend suitable machine model,according to your work piece specifications and heating requirements.
3. Send detailed product parameters, photos and price.
4. Solve all the problem , such as shipping cost, shipping time,delivery time, warranty etc,what you concerned.
5. Reach an agreements, sign proforma invoice or contract.
6. Produce induction heating equipment strictly based on the PI/contract.
7. Arrange goods shipment
8.Tracking goods and help you install and operating machines.
9. Email or Call visit.
10.Provide long-terms technical support.
Dear friend, if your are interested in hot forging induction heating power, please feel free to contact me ,Jessie. Thanks for your time.
