90KVA surface induction heating machine for metal quenching
Yongda Induction heating machine adopts the newest design:

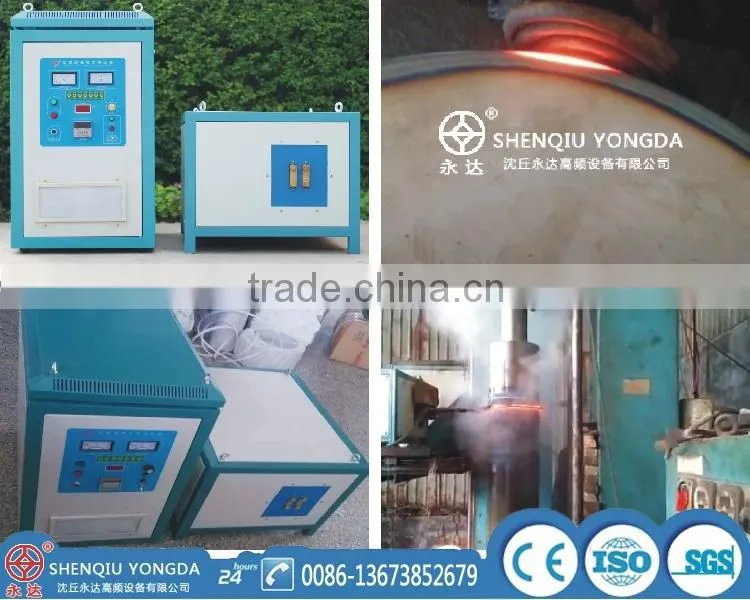

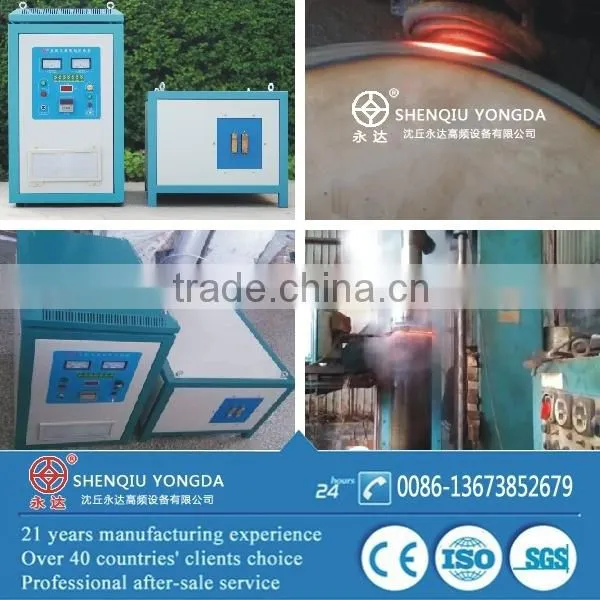

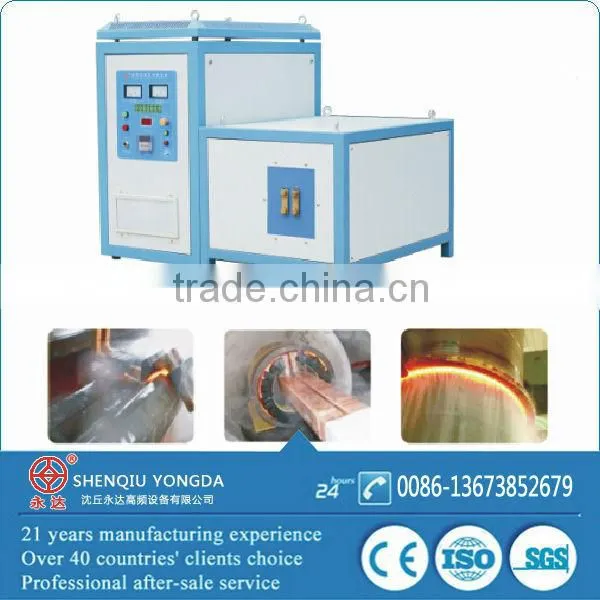

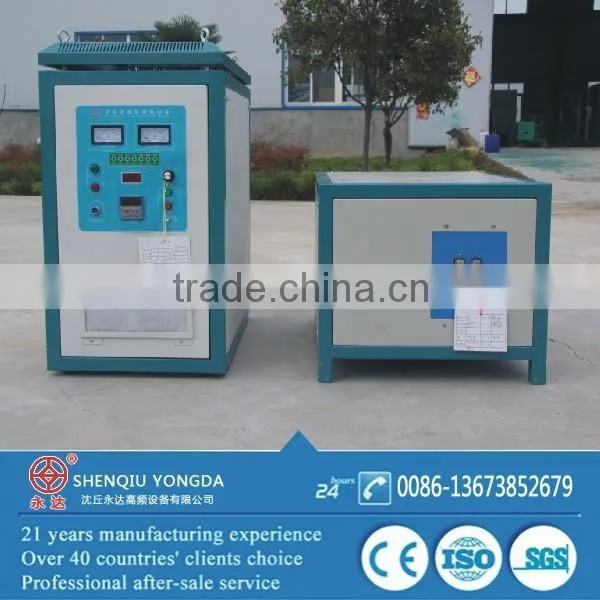

machine has two parts: power unit and transformer
Working frequency digital display and timer functions help quenching high precision and high quality.
Main technial parameters of WZP-90 induction heating machine for metal quenching
Model |
WZP-90 |
Work power |
3 phase 380V+/-10%, 50-60HZ |
Input voltage |
320V-420V
|
Input current |
6-160A |
Input power |
6-90KW(power adjusted stepless) |
Oscillation frequency |
10-50 KHZ |
Cooling water pressure |
0.3 MPA |
|
Size of generator: Transformer |
740*403*895mm 735*490*465mm |
Weight of generator ; transformer |
55kgs; 74kgs |
Water cooling protection point |
Below 50 degree celsius |
Accessories |
Induction coils ,foot pedal, water shunt valve, soft water hose and user manual |
2. Protect full.Over current.over voltage,lack of phase,water shortage, etc. more than ten alarm lamps.
3. Heating fast.Within1 second ,temperature rise up to 1200 degree,even higher.
4. No need contacting work pieces, safety, safe and reliable.
5. Environmental friendly,no pollution, good for worker's health
6. Easy to change induction coils, for heating different shape of steel billet
7. Easy to install and operate.
8. Low maintenance cost
Technial parameters of Yongda WZP Series induction heating machine
Model |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-60 |
320-420V |
3-60A |
10-50KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
10-50KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-120A |
10-50KHZ |
0.3MPA |
WZP-160 |
320-420V |
6-160A |
10-50KHZ |
0.3MPA |
WZP-200 |
320-420V |
6-200A |
10-50KHZ |
0.3MPA |
WZP-300 |
320-420V |
6-300A |
10-50KHZ |
0.3MPA |
WZP-400 |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
WZP-500 |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |
ISO and CE Certifications
Pre-sale service:
We will recommend the most applicable equipment for customers according to your work piece processing demands.
In-sale service:
(1) We will strictly produce the equipment according to relevant technical standards.
(2) We will take run test according to relevant equipment test run regulations.
(3) We will strictly inspect the equipment before delivery,only good machine will be sent to customers.
(4) We will send goods as scheduled in the contract.
After-sale service:
(1) We will freely guide installation, commissioning and test run,by sending intall drawings, sometimes calling or send email.
(2) We will execute one-year guarantee period (ex. not include normal wear, damages of wearing parts and parts damages caused by improper operation).
(3) Once there is a trouble during quality guarantee period, our company promises that we will promptly appoint engineer and sales to help, make our efforts to remove troubles and guarantee the normal operation of customers.
(4) We will freely replace all equipment parts during guarantee period. After-sale products archives and life-long repair solve the potential problems of customers.
(5) Provide long-terms technical support. Also for different work pieces , give instructions and help about how to produce inductors.
(6) According to customer’s need, can arrange engineer to install ,test machine and training operators.
(7) After guarantee period, customer can buy machine parts from us with very low cost.
Packing for induction heating machine for metal quenching
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.
Products applications:
Metal forging,hardening,brazing, annealing, melting,shrink fit, thermal compound,plastic machine screw cylinder heating etc. other fields.
