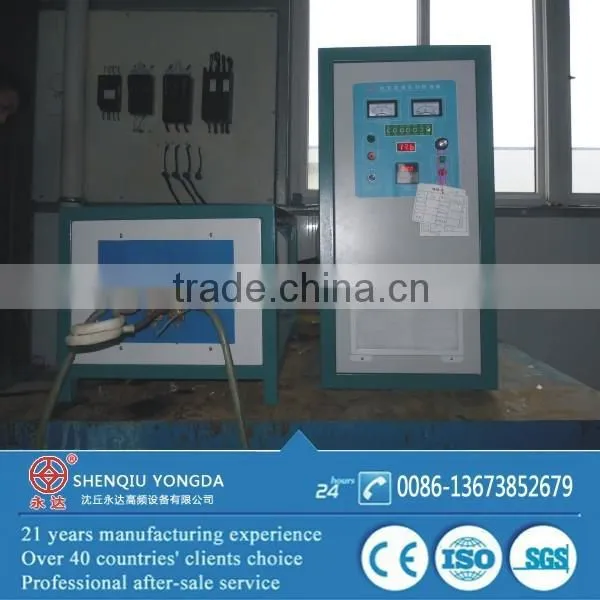

Small size easy install and operating induction heat treating machine with CE

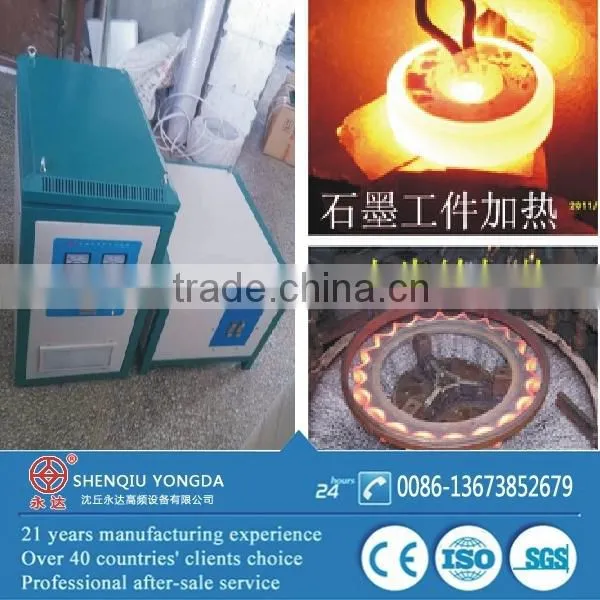

Induction heat treating
Techncial parametes of WZP-120 induction heat treating machine
Model |
WZP-120 |
Work power: |
3 phase 380V+/-10%, 50-60HZ |
Input voltage: |
320V-420V |
Input current: |
6-120A |
Oscillation frequency: |
15-50khz |
Cooling water pressure |
0.3 MPA |
Size of generator: |
665*400*830mm |
Size of transformer |
660*490*435mm |
Weight of generator |
48kgs |
Weight of transformer |
66kgs |
Accessories |
induction coil foot pedal water shunt valve water hose user manual |

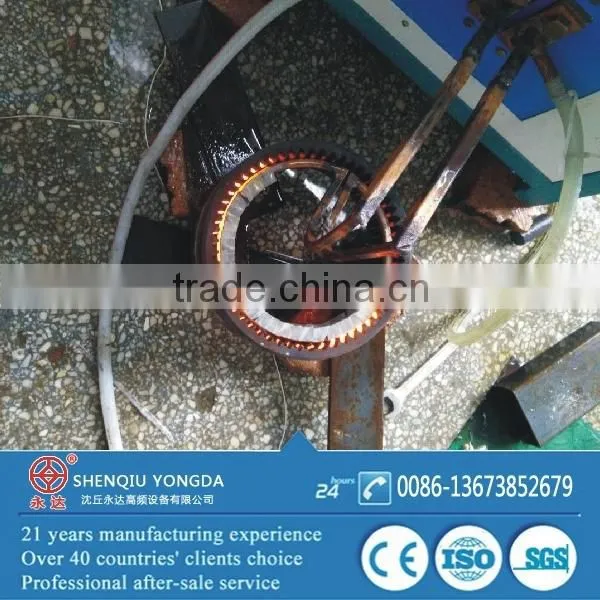

Induction heat treating shaft or gears,model recommendation
Work piece hardening |
WZP-90 |
WZP-120 |
WZP-160 |
WZP-200 |
WZP-300 |
WZP-400 |
WZP-500 |
Shaft diameter (mm) |
40 |
70 |
100 |
120 |
160 |
250 |
600 |
|
Gears diameter (mm) |
80 |
120 |
250 |
300 |
400 |
500 |
/ |
Flat surface |
Common use model WZP-120 and WZP-160 for flat surface hardening |
||||||
Heating capacity for induction heating steel bar for forging
Model |
Capacity |
WZP-60 |
1.5kgs/min |
WZP-90 |
2.5 kgs/min |
WZP-120 |
3 kgs/min |
WZP-160 |
4.5 kgs/min |
WZP-200 |
6 kgs/min |
WZP-300 |
8 kgs/min |
WZP-400 |
10 kgs/min |
WZP-500 |
12 kgs/min |

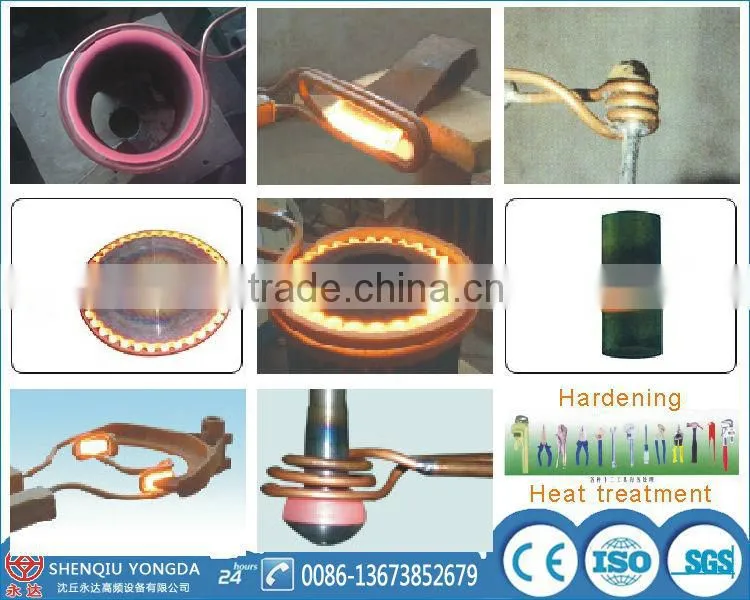

First, the application of induction heat treating machine
1, through thermoforming all kinds of standard parts, fasteners, machinery parts, hardware tools, straight shank twist drill of hot forging, hot rolling, metal annealing. Such as: tensile steel; wire, nail wire heating; stainless steel annealed, rose type.
2, heat treatment various types of hardware tools, electric, hydraulic, pneumatic components, automotive, motorcycle parts and other mechanical parts of the surface of the metal, the hole, partial or total quenching. Such as: hammer, knife, scissors, pliers and all kinds of shafts, cams, sprockets, gears, valves, ball stud, a large machine tool guide, ductile iron quenching.
3, various types of brazing carbide blade, turning, milling, planing, reamer, diamond saw blade, serrated welding; grinding, drilling, cutting welding; brass, copper, stainless steel pot, etc. hybrid welding of metallic materials.
4, metal melting: melting gold, silver and copper.
5, other areas of plastic pipe heating cable, heating wire coating; food, beverage, pharmaceutical industry, the use of aluminum foil.
Second, product features:
1, small size, light weight, easy installation, easy operation.
2, high efficiency, saving energy obviously, high-frequency energy-saving equipment than the traditional 60%
3, safe and reliable, no million-volt high-pressure, very safe for the operator.
4, the frequency bandwidth to meet the different parts of brazing, heat treatment, forging before heating.
5, a unique cooling system, ensure that the equipment 24 hours of continuous work.
ISO and CE certification
Packing for induction heat treating machine
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Online consult 2. Check drawings or pictures 3. Machine model(power and frequency ) recommendation 4. Make agreement 5. Production 6. debugging machine before sending goods 7. Delivery goods 8. Tracking goods 9. Provide documents help customer clearance customs 10, Tracking customer install and use machine cases
Good faith enterprice honor certifications

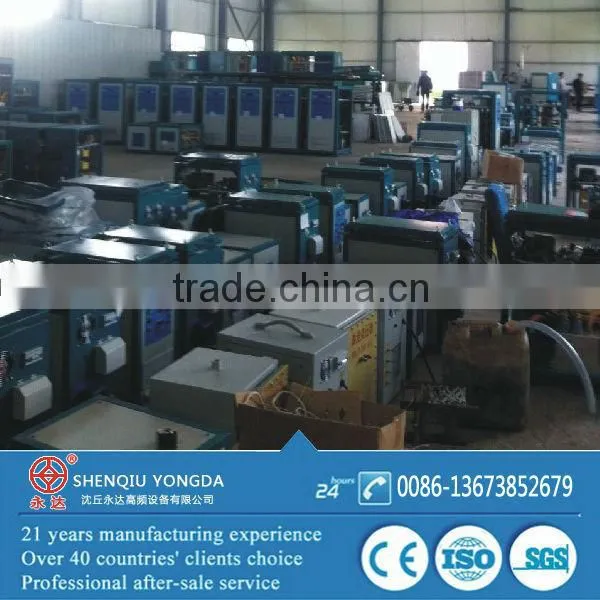

Established in 1996, Chaiman of Shenqiu Yongda HF Equip. Co. : Mr. Yao xinjian is engaged in induction heating technology over 20 years. Main products : Solid-state induction heating equipment, can be used for hardening, forging, brazing,annealing,melting,shirnk fitting ,hot coating,etc.
Oversea customers visited us
If you are interested in induction heat treating machine,please contact our service person.
