High frequency metal bar induction heating machine:forging/quenching

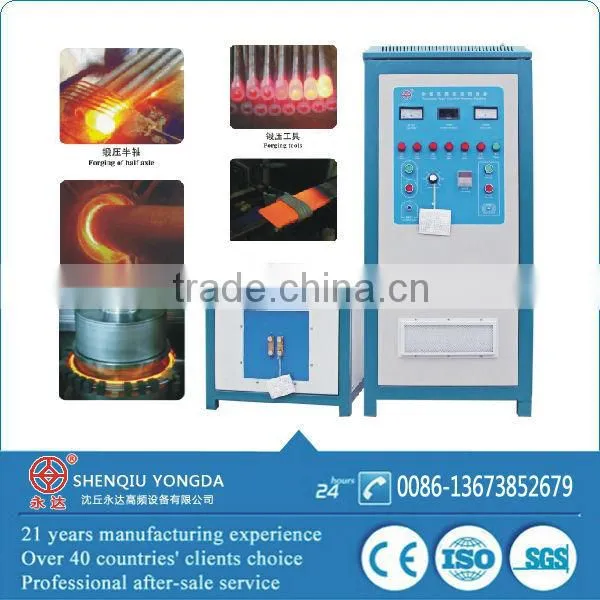

High frequency metal bar induction heating machine:
Technical specifications
Model |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
|
WZP-40A (25KW) |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
|
WZP-60A (35KW) |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
|
WZP-90A (50KW) |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
|
WZP-120A (70KW) |
320-420V |
6-120A |
15-30KHZ |
0.3MPA |
|
WZP-160A (90KW) |
320-420V |
6-160A |
15-30KHZ |
0.3MPA |
|
WZP-200A (120KW) |
320-420V |
6-200A |
15-30KHZ |
0.3MPA |
|
WZP-300A (160KW) |
320-420V |
6-300A |
15-30KHZ |
0.3MPA |
|
WZP-400A (200KW) |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
|
WZP-500A (260KW) |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |
Applications of metal bar induction heating machine
Quenching and tempering
Featurs of metal bar induction heating machine
1. Adopts advanced Germany Siemens IGBT modules, save energy than traditional high frequency tube heater.
2. Protect full.Over current.over voltage,lack of phase,water shortage, etc. more than ten alarm lamps.
3. Heating fast.Within1 second ,temperature rise up to 1200 degree,even higher.
4. No need contacting work pieces, safety, safe and reliable.
5. Environmental friendly,no pollution, good for worker's health

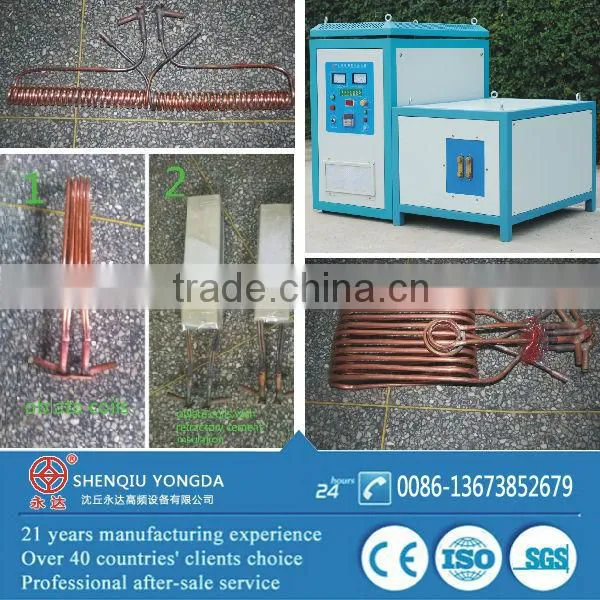

6. Easy to change induction coils, for heating different shape of steel billet
7. Easy to install and operate.
8. Low maintenance cost

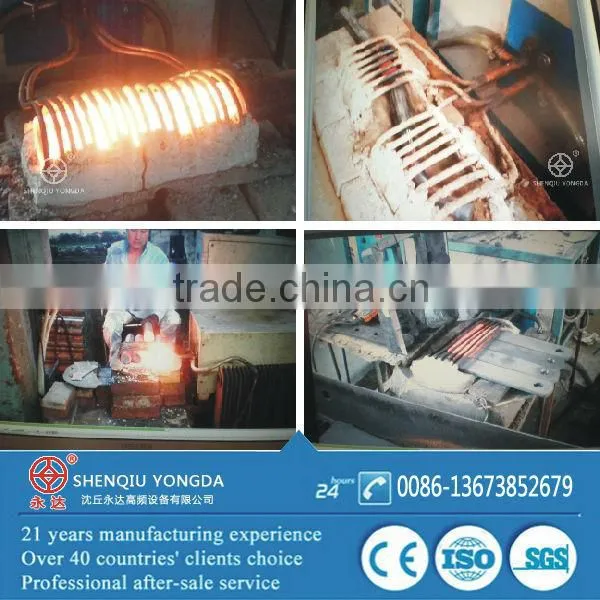

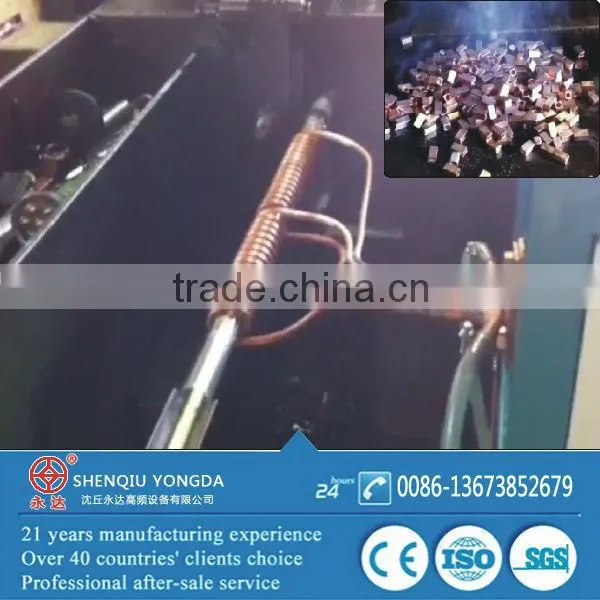

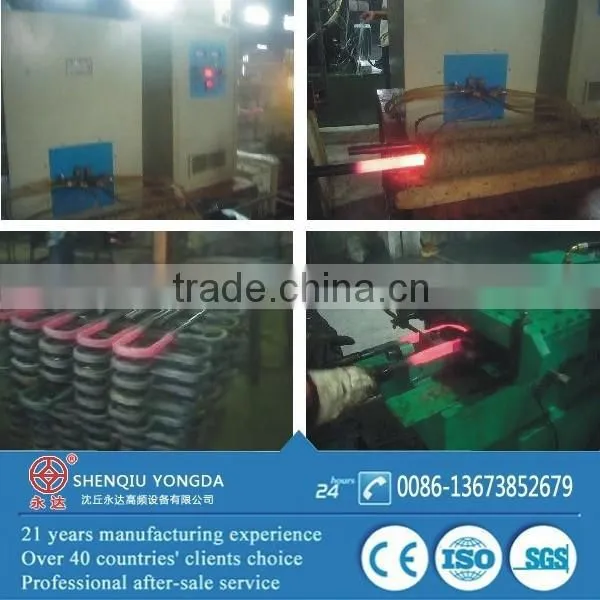

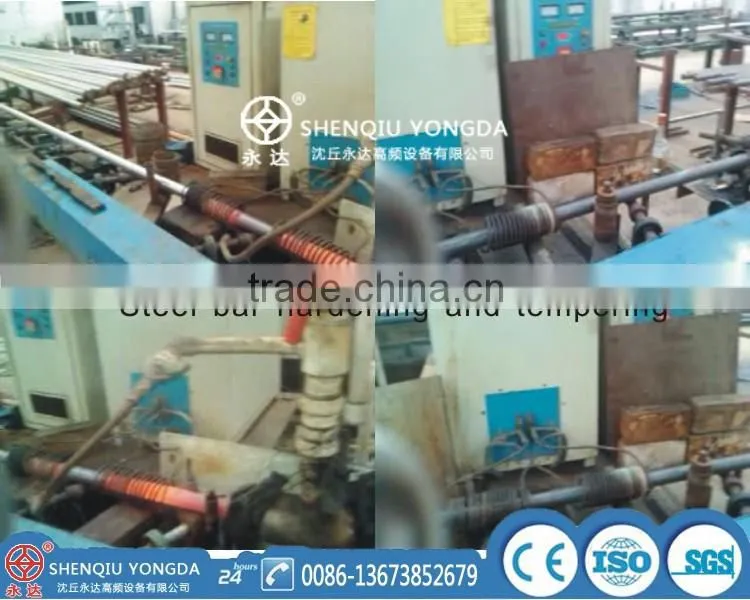

WZP-160KW metal bar induction heating machine working onsite

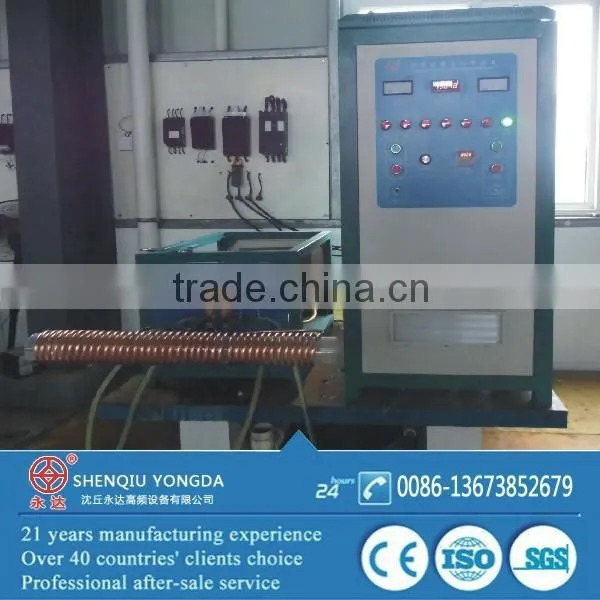

Our workshop for debugging machine

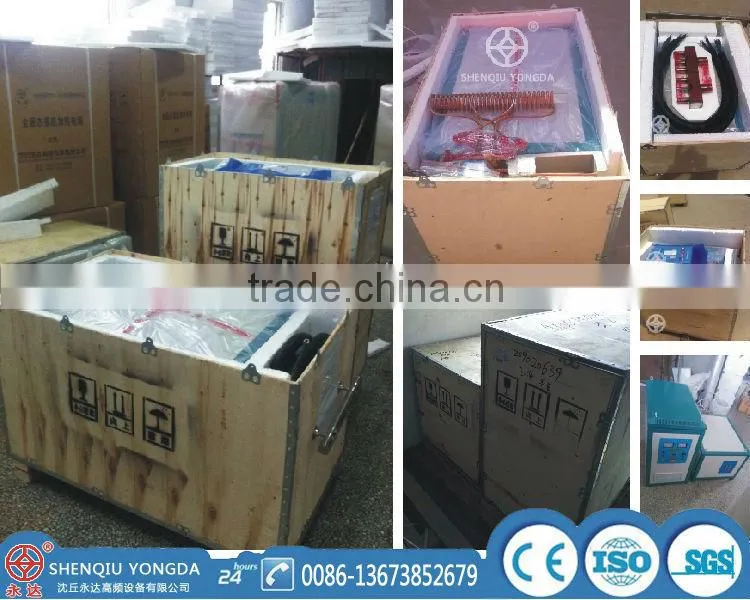

Packing for metal bar induction heating machine:
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1.One year free replacement spare parts
2.Provide long-terms technical support
3.About installation: provide install technical skecth, install and operating instruction, or send engineer to helps if need.
4.About spare parts: beyong warranty period, you can buy spare parts from us with very low cost.
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.
Products applications range:

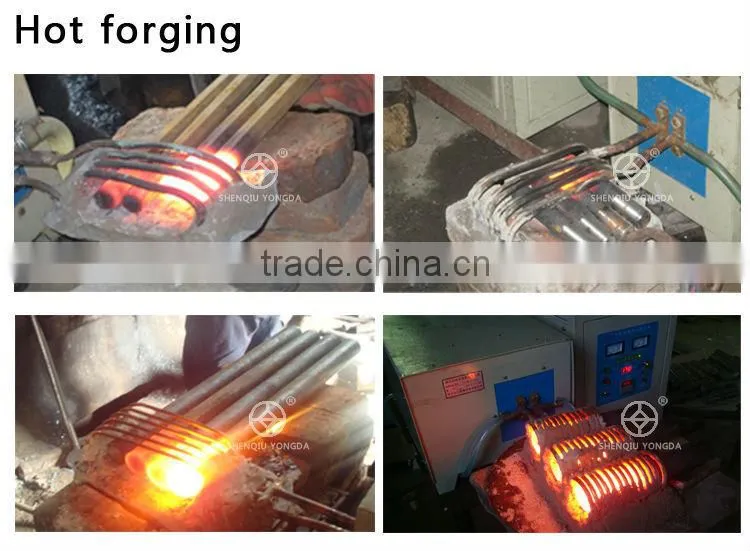

Metal forging,hardening,brazing, annealing, melting,shrink fit, thermal compound,plastic machine screw cylinder heating etc. other fields.
Metal bar indution heating machine, yongda co is expert.
Thanks for your reading !
