High output high frequency electromagnetic induction heating equipment

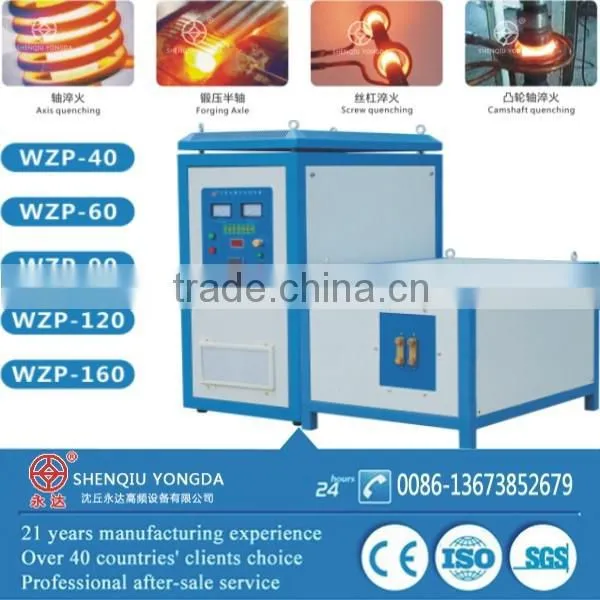

Main technial parameters of WZP-120 inudction heating equipment
Model | WZP-120 |
Work power: | 3 phase 380V+/-10%, 50-60HZ |
Input voltage: | 320V-420V |
Input current: | 6-120A |
Oscillation frequency: | 15-30khz |
Cooling water pressure | 0.3 MPA |
Size of generator: | 665*400*830mm |
Size of transformer | 660*490*435mm |
Weight of generator | 48kgs |
Weight of transformer | 66kgs |

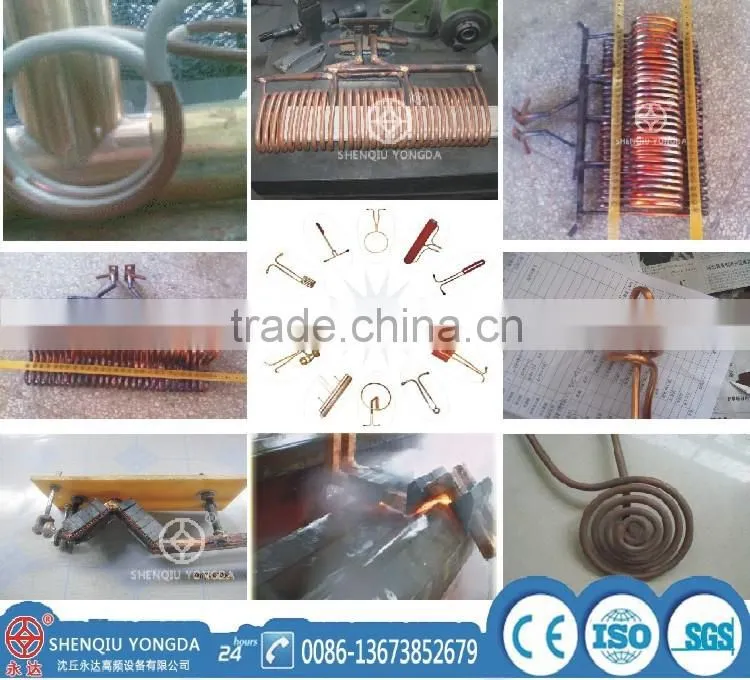

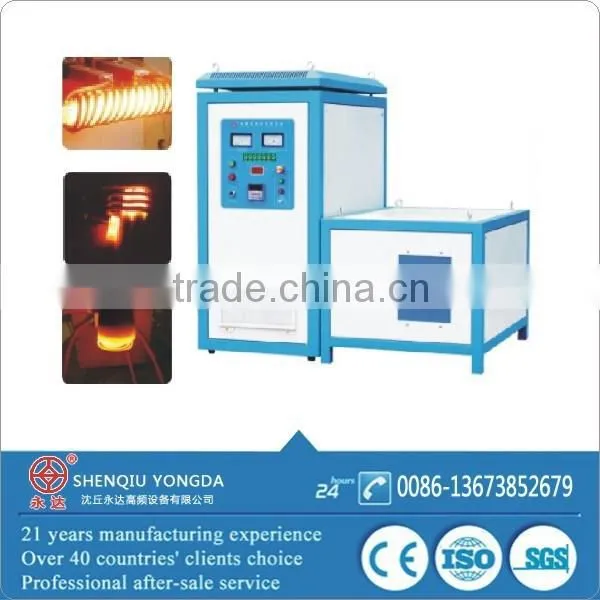

Generator and transformer seperated. Induction coils are tailor-made,accorging to size of your work piece and heating requirements.
Application pictures of induction heating equipment

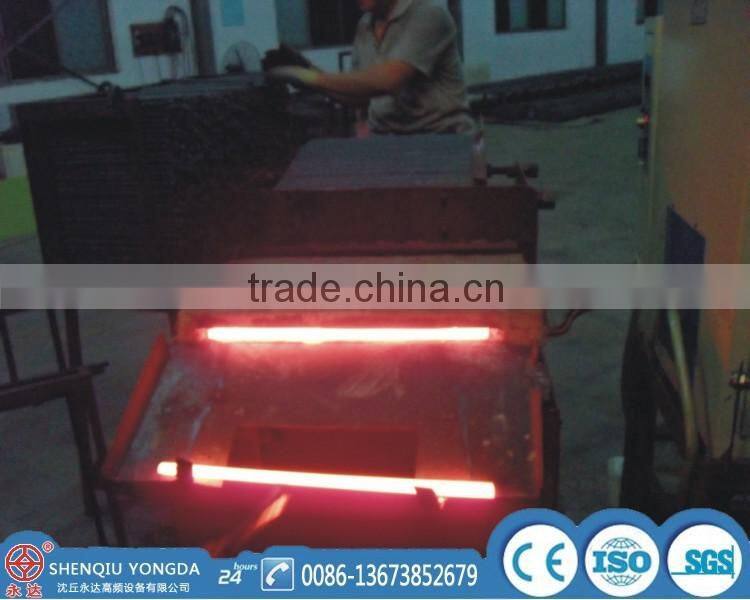

1. Railway elastic strip induction heating for forging
Induction forging
1. All kinds of bolt, nut hot forging;
2 hot-rolled cannabis cobalt;
3 diameter of 50 within all parts through hot forging;

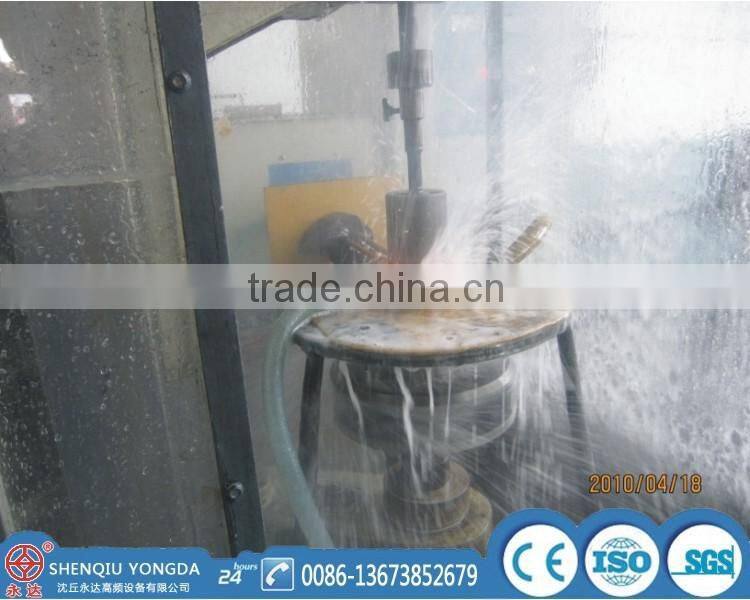

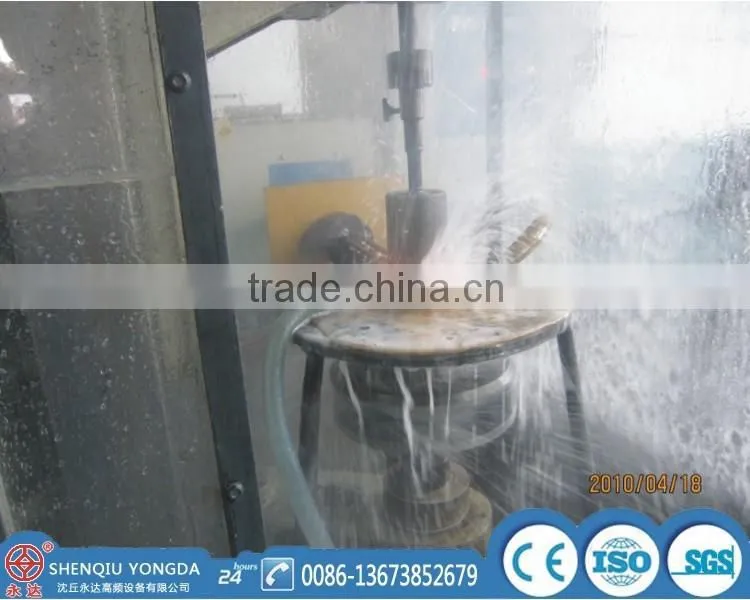

2. Shaft hardening induction heating
Induction hardening
1. All kinds of gears, sprockets, shaft quenching;
2. a variety of axle, leaf springs, fork, valve, rocker, ball stud and other auto parts quenching.
3. All kinds of engine parts, gear parts hardened surface;
4 bed machine tool of machine tool industry guide of quenching (lathe, milling machine, planer, punch, etc.).
5. All kinds of pliers, knives, scissors, axes, hammers and other hand tools quenching.
3.Induction brazing
1 piece of diamond drill bit composite welding;
2 of carbide blade, saw blade welding;
3. All kinds of cutter, drill head, drill pipe, coal drill bits, drill bits and other mine parts of the wind welding;
Features of igbt induction heating equipment:
1, high frequency transistors my company adopted than high frequency power saving up to 40-60%, saving 60%, external support facilities to reduce investment by 75%.
2, a unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
3, small size, light weight, easy to move, no million-volt high-voltage danger, safe operation.
4, high reliability, easy to maintain and improve the over voltage, over current, overheating, lack of, water and other self-protection.
5, the use of large scale integrated circuit digital automatic control, with manual, automatic, semi-automatic and fixed time control.
6, automatic frequency tracking, stepless power adjustment, easy to use, 10 minutes to learn.
Select the frequency of induction heating equipment:
According to heat treatment and heating depth required, select frequency. The higher the frequency, the more shallow depth of heating.
1.The depth of the high-frequency (above 10KHZ above) for heating is 0.5-2.5mm, generally used for heating medum-sized or small parts, such as small modulus gear and medum-sized and smalll shaft parts.
2.Intermediate frequency IF (1-10KHZ) heating a depth of 2-10mm, generally used for large diameter shaft and medium-sized modulus gear heated.
3.Power Frequency (50HZ) heating the hardened layer depth of 10-20mm, generally used for large size parts diathermy, large diameter parts (diameter 300mm or more, such as rolls, etc.) surface hardening.

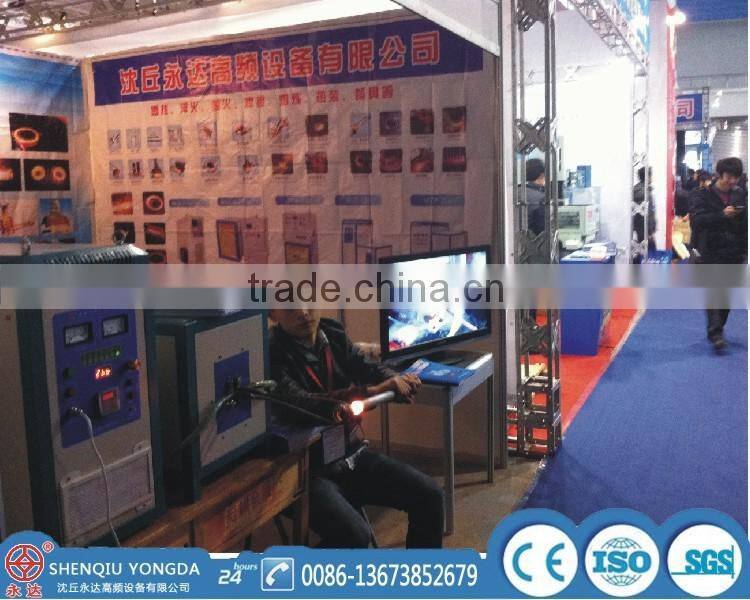

We are induction heating industry exhibition
Packing igbt induction heating equipment
1.Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
2.One for generator 850*600*1330mm, 131kgs, one for transformer 780*540*520mm, 89kgs
3.Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support.
Manufacturer of induction heating equipment, high frequency ,medium freuency ,supersonic frequecy induction heating machine, welcome to inquiry us !
Thanks for your reading !
