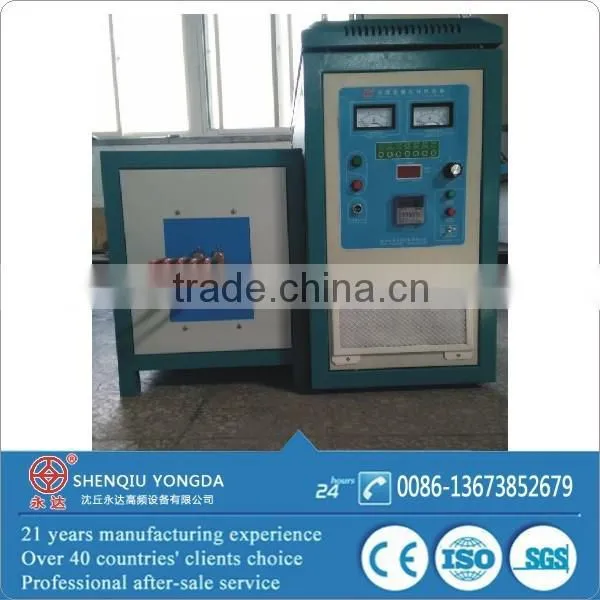

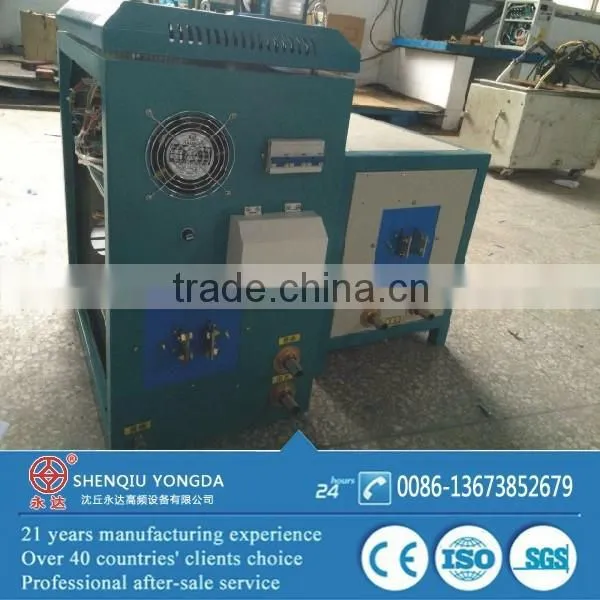

35KW high frequency induction heating machine
Advantages of 35KW induction heating machine
This equipment adopts the IGBT inverter circuit in parallel connection, which has high load adaptability.
It has such features as high frequency, fast heating speed, high efficiency and easy operation.
As compared with other heating modes, it can significantly promote the economic benefits, improve the quality of heated work pieces and save the energy and material, alleviate labor intensity and improve the production environment.
It has super small size, which can save the production space by 10 times.
It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.
The comprehensive full load design is available for 24-hour continuous operation
Technical specifications of WZP-60(35KW) induction heating machine
Model |
WZP-60 |
Work power |
3 phase 380V+/-10%, 50-60HZ |
Input voltage |
320V-420V can be changed, depend on your country's electric power |
Input current |
3-60A |
Input power |
3-35KW(power adjusted stepless) |
Oscillation frequency |
15-30KHZ |
Cooling water pressure |
0.2 MPA |
|
Size of geneartor: Transformer |
580*340*580mm 470*280*390mm |
Weight of generator ; transformer |
32kgs; 50kgs |
Water cooling protection point |
Below 50 degree celsius |
Applications of 35KW induction heating machine
1. Heating (hot forging, hot fitting and smelting):
2. Heat Treatment (surface quench):
It is mainly aims to change the rigidity of the metal materials through the heat treatment to work pieces. Detail applications are stated as follows:
3. Welding (braze welding, silver soldering and brazing)
It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material or different materials.
4. Welding of heating disc of electric hot-water kettle mainly refers to the braze welding of stainless steel flat base, aluminum sheet and tubular electric heating elements of various forms.
5. Annealing (tempering and modulation):
Packing Details :
packaging detail:
1.Standard wooden case, plywood case, and customized case;
2. Inner packing:packing plastic film and foam in case of friction dampness and shake
3.Accessories: induction coil 1, foot pedal 1, installing and operating instruction 1 and customized;
delivery detail:
1. Usually Payment terms: T/T, 30% advance payment, 70% before sending the goods(also according to customer requirement)
2. receiving balance will be deliveried by sea/air/express (2 days prompt goods,7 days stock up, 30 days customized)
Our service:
1. Reply your inquiry in 24 working time
2. Exerienced staffs answer all your questions in fluent English
3. Customized design is available
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs
After-sale service:
1.one year free parts replacement
2.life-long time technology support and installation guide
3.only charge little money for parts replacement when warranty expired
Quality assured ! Low cost ! Considerate service ! Shenqiu Yongda welcome you ! Thanks for your reading ! Welcome to contact us !
