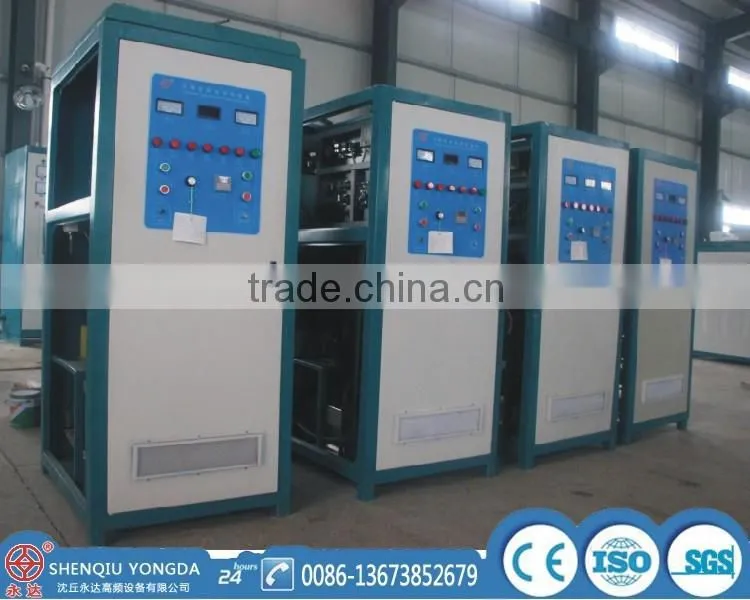

Capacity 10kg/min igbt forging furnace induction heating machine
Applications of igbt forging furnace induction heating machine
1, Induction forging the following work piece
(1) Round steel categories:
A. bolts, nuts, drill head hot forge, the car U-bolts, anchor bolt, connecting rod, non-standard parts processing, conductive rod
B. stainless steel tableware, stainless steel bolts and nuts
C. tools: pliers, bolt cutters, pipe clamp, water pump pliers, pliers, wrenches, ratchet wrenches, masonry chisel,
D. Other: sewing gadgets, jack head, boss chair, shackles, hand rings, flowers Lancashire body, feet kidnapper, tricycle axle, briquettes machine Chong-pin, roll gate axis, articulated manifolds, hot-rolled twist drill, Hot-rolled rebar, hot-rolled woodworking drill, bearing
Debugging machine in our factory
(2) sheet/plate categories:
A. forged stainless steel cutlery, automotive steel plate.
B. sheet folding: folding iron hand jack, metal folding channel, automotive steel, hot rolled construction steel buckle, automotive leaf spring
C. embossed: Iron Works embossing, embossing motorcycle brake pedal heating, sanitary ware.
D. Forming: bending, upsetting head, punching, flatten, step by step tight angle iron molding, from nails, rasp, sanitary ware
(3) pipe deformation: pipe heat distortion, fire extinguishers stretching, stretching cylinders, fans rose shaped brackets bend, pipe up hole, bicycle fork shrinkage, food machinery punching
(4) other categories:
Electric Vehicle wrist, drill rod, drill bits, copper pieces (communication, air conditioning parts), trains pin, watch cases, railway rail pressure ring.
Model |
WZP-400 |
Work power |
3 phase 380V+/-10%, 50-60HZ |
Input voltage |
320V-420V |
Input current |
6-400A |
Input power |
6-200KW(power adjusted stepless) |
Oscillation frequency |
8-15 KHZ |
Cooling water pressure |
0.3 MPA |
|
Size of generator: Transformer |
820*740*1700mm 1100*590*590mm |
Weight of generator ; transformer |
172kgs; 205kgs |
Water cooling protection point |
Below 50 degree celsius |
200KW Model WZP-400 induction heating machine
1. IGBT modules, save energy than traditional high frequency tube heater.

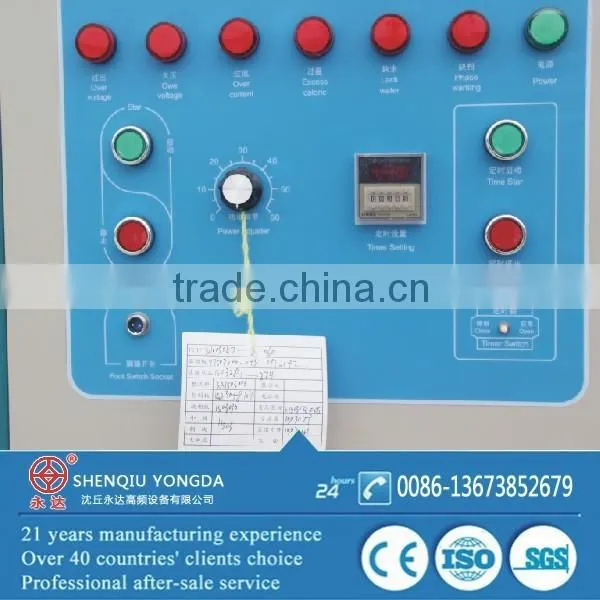

2. Protect full.Over current.over voltage,lack of phase,water shortage, etc. more than ten alarm lamps.
3. Heating fast.Within1 second ,temperature rise up to 1200 degree,even higher.
4. No need contacting work pieces, safety, safe and reliable.
5. Environmental friendly,no pollution, good for worker's health
6. Easy to change induction coils, for heating different shape of steel billet
7. Easy to install and operate.
8. Low maintenance cost
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to Research & Development,production of high frequency induction heating machine, medium frequency induction heating equipment,supersonic frequency induction heating machine,induction forging machine, induction hardening machine, adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions. We have international trade office in zhengzhou. East to international airport (CGO), besides, high way, high speed rail,transport is very convenient.
Our factory scene
Company products:
Medium frequency induction heating machine IGBT and KGPS SCR
High frequency (Super audio ) induction heating machine
Induction hardening machine, induction forging machine,induction brazing machine, induction annealing furnace,
Electromagnetic induction heating equipment,Induction melting furnace ;
CNC hardening machine tool,Automatic feeding steel rods machine,
Round bar,steel pipe induction hardening and tempering equipment
Concrete pump pipe dedicated quenching machine,Hydraulic cylinder cladding equipment;
Closed cooling tower,etc.

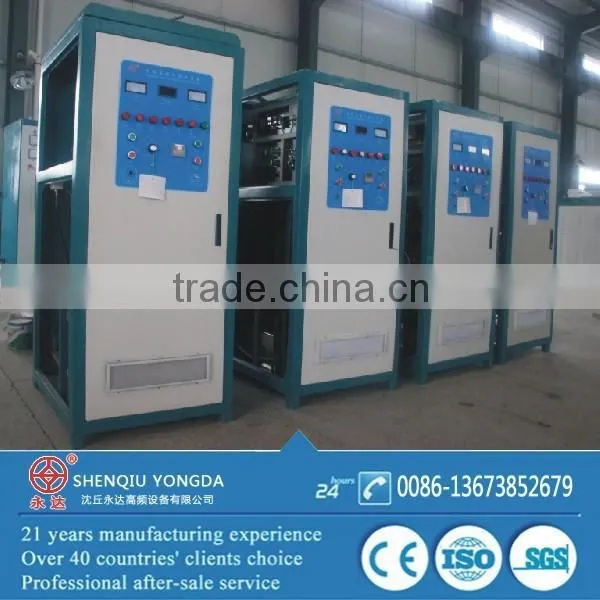

Our work shop: here, every set machine before leaving our factory, will be strictly tesed by our technical persons.
Packing for igbt forging furnace induction heating machine
1.Wooden cases (plywood) or carton, as you required.
2.Inside,will be filled with plastic foam,for waterproof and shockproof.
3.Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air/train/courier
2. Recommend suitable machine model,according to your work piece specifications and heating requirements.
3. Send detailed product parameters, photos and price.
4. Solve all the problem , such as shipping cost, shipping time,delivery time, warranty etc,what you concerned.
5. Reach an agreements, sign proforma invoice or contract.
6. Produce induction heating equipment strictly based on the PI/contract.
7. Arrange goods shipment
8.Tracking goods and help you install and operating machines.
9. Email or Call visit.
10.Provide long-terms technical support.
Thanks for your reading, welcome to contact us at any time !
