120KW IGBT ultrasonic frequency induction heater
Main technial parameters of WZP-200 ultrasonic frequency induction heater
Model |
WZP-200 |
Work power: |
3 phase 380V+/-10%, 50-60HZ |
Input voltage: |
320V-420V |
Input current: |
6-200A |
Oscillation frequency: |
15-30khz |
Cooling water pressure |
0.3 MPA |
Size of generator: |
850*600*1330 |
Size of transformer |
780*540*520mm |
Weight of generator |
131kgs |
Weight of transformer |
89kgs |

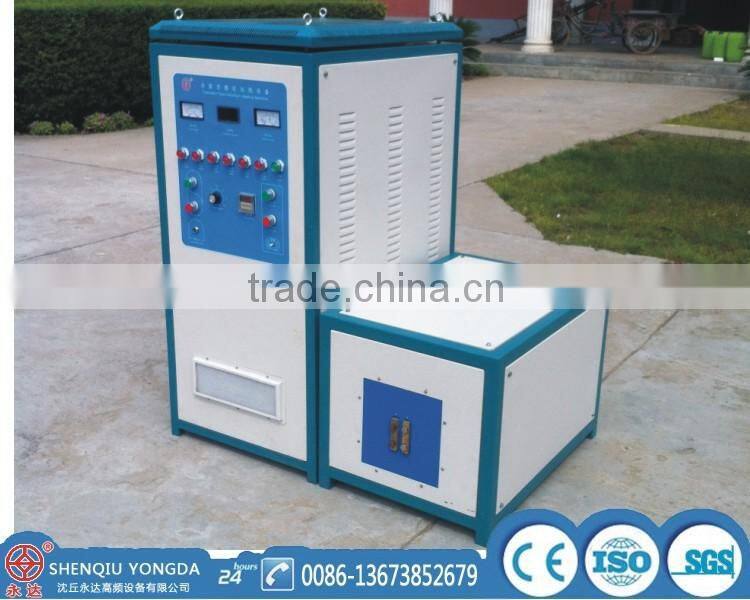

WZP-200 ultrasonic frequency induction heater:generator and transformer

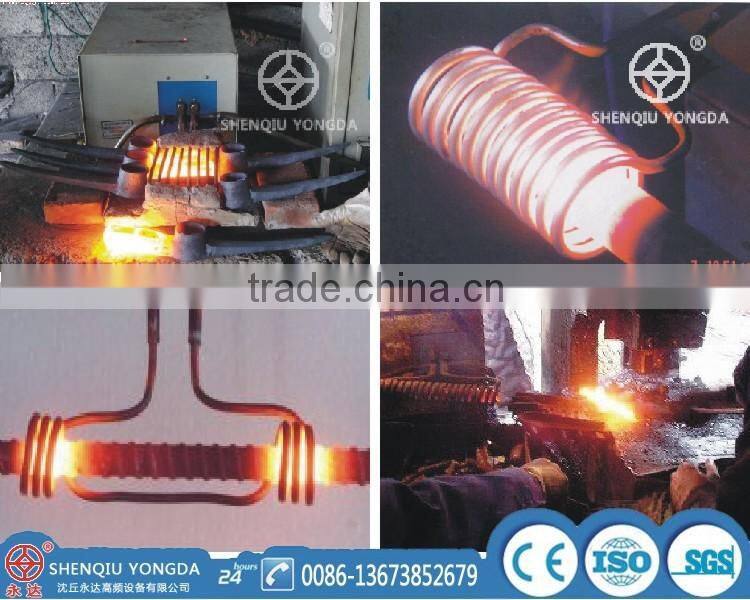

Applications of ultrasonic frequency induction heater
Forging
A, all kinds of standard parts, fasteners, machinery parts, hardware tools, straight shank twist hot upsetting, hot.
B, metal heat annealing. Such as: tensile steel tube, pipe, smashed head; wire, heating wire nail; stainless steel annealed, rose type.

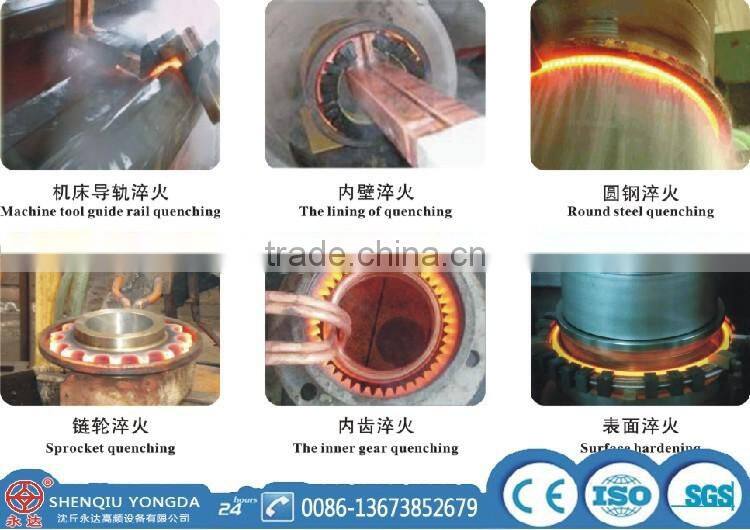

Hardening
Various types of hardware, electrical, hydraulic, pneumatic components, automobiles, and motorcycle parts and other mechanical parts of the surface of the metal, bore, in part or in whole quenching. Such as: hammer, knife, scissors, pliers and various types of shafts, cams, sprockets, gears, valves, ball pin, large-scale Machine Tool, ductile iron quenching.
Brazing
Various types of carbide blades, turning, milling, planer, reamer, diamond saw blade, saw welding; grinding, drilling, cutting welding; brass, copper, stainless steel and other metal materials, the composite bottom of the pot Welding.
Metal melting: melting gold, silver and copper.
Other heated areas
Plastic pipe, cable, wire heating film; food, beverage, pharmaceutical industry uses aluminum foil.

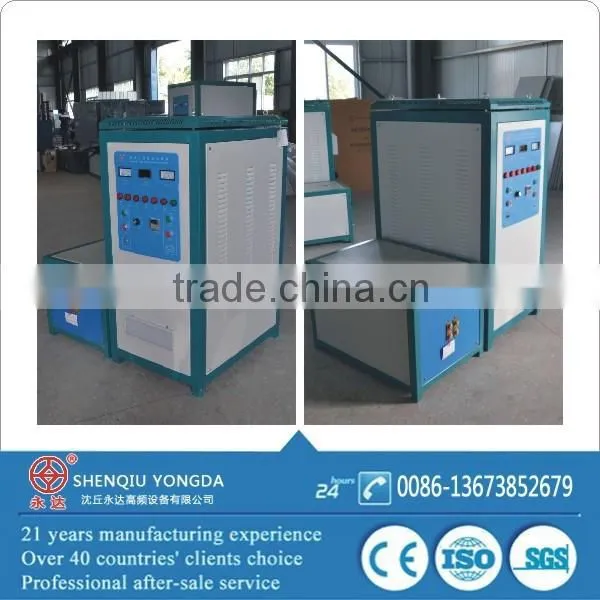

Our factory scene and debugging work shop
Capacity of ultrasonic frequency heater(reference table)
Model |
Capacity |
WZP-60 |
1.5kgs/min |
WZP-90 |
2.5 kgs/min |
WZP-120 |
3 kgs/min |
WZP-160 |
4.5 kgs/min |
WZP-200 |
6 kgs/min |
WZP-300 |
8 kgs/min |
WZP-400 |
10 kgs/min |
WZP-500 |
12 kgs/min |
We are in heating exhibition
Pre-sale service:
We will recommend the most applicable equipment for customers according to your work piece processing demands.
In-sale service:
(1) We will strictly produce the equipment according to relevant technical standards.
(2) We will take run test according to relevant equipment test run regulations.
(3) We will strictly inspect the equipment before delivery,only good machine will be sent to customers.
(4) We will send goods as scheduled in the contract.
After-sale service:
(1) We will freely guide installation, commissioning and test run,by sending intall drawings, sometimes calling or send email.
(2) We will execute one-year guarantee period (ex. not include normal wear, damages of wearing parts and parts damages caused by improper operation).
(3) Once there is a trouble during quality guarantee period, our company promises that we will promptly appoint engineer and sales to help, make our efforts to remove troubles and guarantee the normal operation of customers.
(4) We will freely replace all equipment parts during guarantee period. After-sale products archives and life-long repair solve the potential problems of customers.
(5) Provide long-terms technical support. Also for different work pieces , give instructions and help about how to produce inductors.
(6) According to customer’s need, can arrange engineer to install ,test machine and training operators.
(7) After guarantee period, customer can buy machine parts from us with very low cost.
Packing for ultrasonic frequency induction heater
1.Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: induction coils,foot switch and installing and operating instructions
3.Shipping: by sea LCL(less than container load) or by air/train/courier
Ultrasonic frequency induction heater, over 20 years manufacture experience,please thinking Shenqiu Yongda.
Welcome to inquiry us !
