High security steel bars induction heating oven
- 500 Set / Sets per Month
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Credit Card PayPal
-
high quality Cr-V joint impact sockets
-
3/8" Dr Good quality socket wrench
-
Flexible Packing Foil, Double Zero aluminum foil
-
blister packaging pills foil, double light foil, 8011 aluminum foil
-
gutkha paper, aluminum foil for distributors, pharmaceutical foil
-
aluminum foil for distributors, pharmaceutical foil
Product Details
| Condition: | New | Place of Origin: | Henan, China | Brand Name: | yongda |
| Model Number: | WZP-160 | Voltage: | 380V+/-10% | Power(W): | 90KW |
| Certification: | ISO 9001 | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
induction heating oven1.power:3-90kw
2.adopts IGBT mobules
3. 10-50KHZ
4. enery save 30%
High security steel bars induction heating oven
Biggest feactures of yongda brand induction heating oven
1.IGBT induction quenching machine,every saving
2.Small size,light weight.Easy to move it.
3.Envrionmental protect, no pollution, good for worker's health.
4.Induction coils are tailor-made, easy to change coils
5.Water cooled induction quenching machine
Steel bar induction heatong oven
Induction heating machine: generator and transformer
Tailor-made parts: induction forging furnace ,
support frame(workbench)
automatic feeding machine(hydraulic cylinder)
Technical parameters of induction heating oven
Model | WZP-160 |
Work power | 3 phase 380V+/-10%, 50-60HZ |
Input voltage | 320V-420V can be changed, depend on your country's electric power |
Input current | 6-160A |
Input power | 3-90KW(power adjusted stepless) |
Oscillation frequency | 10-50 KHZ |
Cooling water pressure | 0.3 MPA |
Size of geneartor: Transformer | generator740*403*895mm transformer 735*490*465mm |
Weight of generator ; transformer | 55kgs; 74kgs |
Water cooling protection point | Below 50 degree celsius |
A, all kinds of standard parts, fasteners, machinery parts, hardware tools, straight shank twist hot upsetting, hot.
B, metal heat annealing. Such as: tensile steel tube, pipe, smashed head; wire, heating wire nail; stainless steel annealed, rose type.
2, heat treatment
Various types of hardware, electrical, hydraulic, pneumatic components, automobiles, and motorcycle parts and other mechanical parts of the surface of the metal, bore, in part or in whole quenching. Such as: hammer, knife, scissors, pliers and various types of shafts, cams, sprockets, gears, valves, ball pin, large-scale Machine Tool, ductile iron quenching.
3, brazing
Various types of carbide blades, turning, milling, planer, reamer, diamond saw blade, saw welding; grinding, drilling, cutting welding; brass, copper, stainless steel and other metal materials, the composite bottom of the pot Welding.
4, metal melting: melting gold, silver and copper.
5, the other heated areas
Plastic pipe, cable, wire heating film; food, beverage, pharmaceutical industry uses aluminum foil.

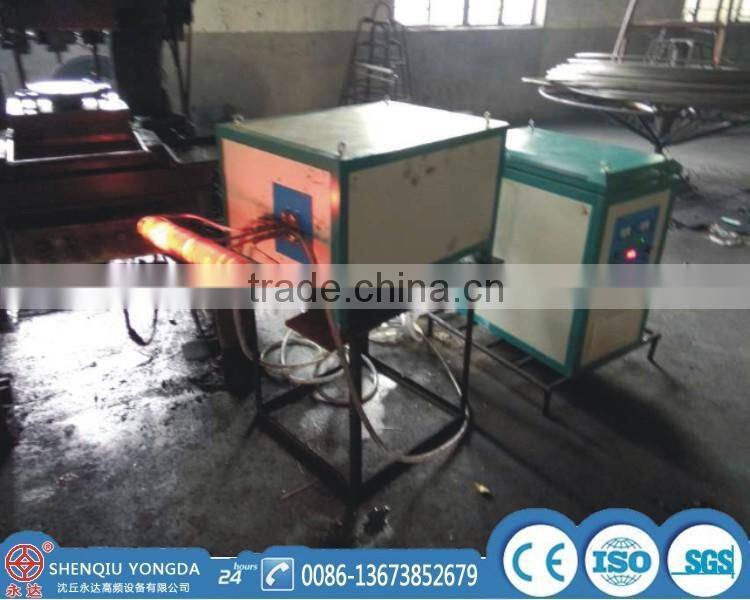

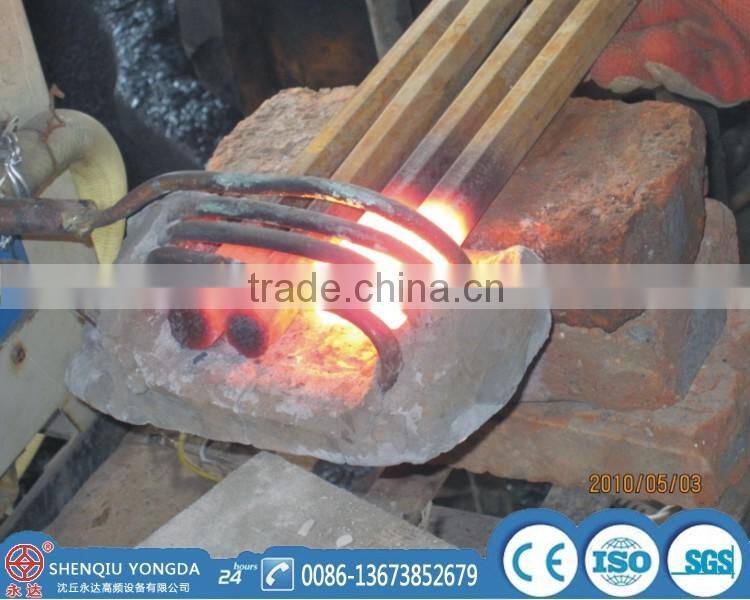

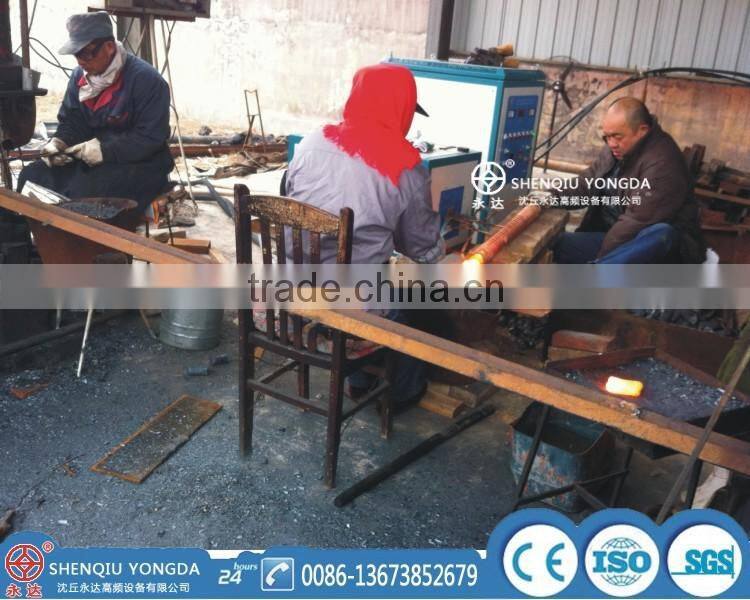

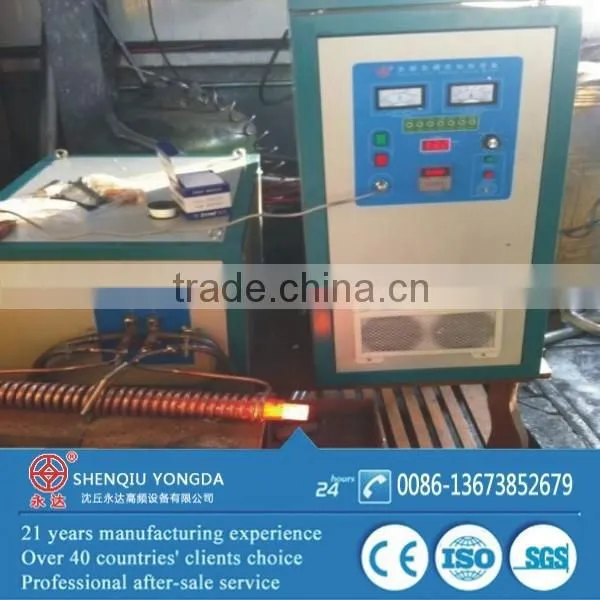

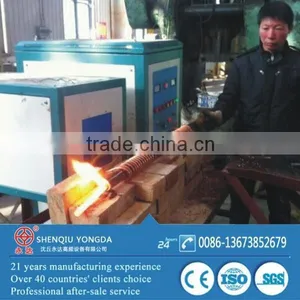

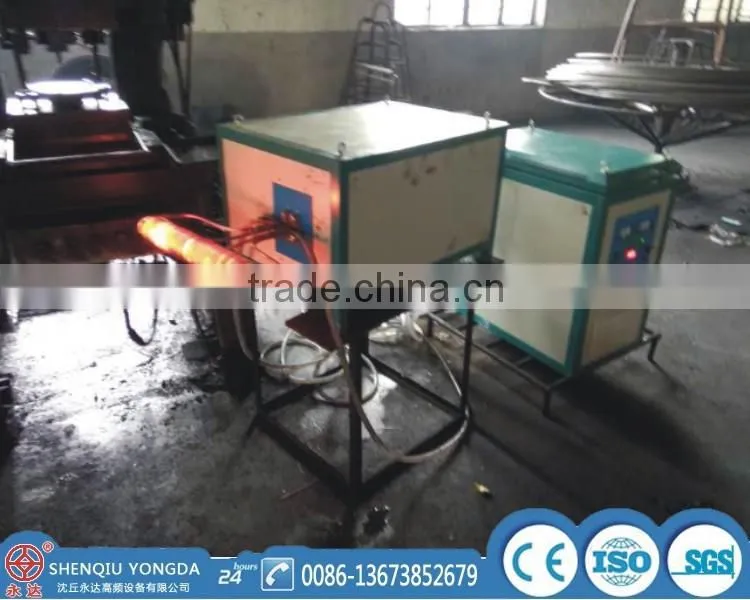

Pictures of induction heating oven
Packing for induction heating oven
1.Two wooden cases (plywood) or carton,as you request.
Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: high frequency cable 2 pcs, (connect generator and transformer)induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
Induction heating oven,used for forging, hardening, annealing, brazing etc. meteal heating, shenqiu Yongda can design machine power and frequency for your job. Please feel free to contact us !
Sincerely provide service for you!
