Help CenterWZP-90 Induction Heating Equipment for Metal Forging
Related Products
-
50KVA Steel Induction Forging GeneratorUS$ 898 - 4,800MOQ: 1 Set -
IGBT High Frequency Induction Heating Forge MachineUS$ 1,500 - 4,500MOQ: 1 Set
-
160KW Hi Frequency Induction Gear Heating Forging MachineUS$ 860 - 9,800MOQ: 1 Set
-
4mm Thick Steel Plate Heating Before Hot Forming/forging IGBT TypeUS$ 1,000 - 10,800MOQ: 1 Set
-
120kw Continuous Steel Bar Forge Heating Machine for Making NutsUS$ 980 - 15,000MOQ: 1 Set
Specifications
induction heating equipment for metal forging1.Good quality, high stability and reliability
2.Low energy consumption
WZP-90 induction heating equipment for metal forging
Technial parameters of WZP series induction heating equipment for metal forging
Model |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-40 |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
WZP-60 |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-120A |
15-30KHZ |
0.3MPA |
WZP-160 |
320-420V |
6-160A |
15-30KHZ |
0.3MPA |
WZP-200 |
320-420V |
6-200A |
15-30KHZ |
0.3MPA |
WZP-300 |
320-420V |
6-300A |
15-30KHZ |
0.3MPA |
WZP-400 |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
WZP-500 |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |
Control panel of WZP-90 induction heating equipment for metal forging
Applications of induction heating equipment
1,all kinds of standard parts, fasteners, machinery parts, hardware tools, straight shank twist hot upsetting, hot. metal heat annealing. Such as: tensile steel tube, pipe, smashed head; wire, heating wire nail; stainless steel annealed, rose type.
2, Various types of hardware, electrical, hydraulic, pneumatic components, automobiles, and motorcycle parts and other mechanical parts of the surface of the metal, bore, in part or in whole quenching. Such as: hammer, knife, scissors, pliers and various types of shafts, cams, sprockets, gears, valves, ball pin, large-scale Machine Tool, ductile iron quenching.
3, various types of brazing carbide blade, turning, milling, planing, reamer, diamond saw blade, serrated welding; grinding, drilling, cutting welding; brass, copper, stainless steel pot, etc. hybrid welding of metallic materials.
4, metal melting: melting gold, silver and copper.
5, the other heated areas

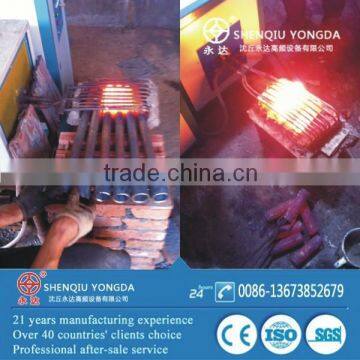

Debugging machine work shop
Product quality certifications: ISO9001-2000
Packing for induction heating equipment for metal forging:
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support.
Company's honor
Shenqiu Yongda high frequency equipment Co.,ltd establish in 1996 , and is a high-tech technology enterprise of Henan Province. Near 20 years induction heating machine production and marketing experience, what ever your metal work piece looks like, our experienced engineer will provide you the best solutions
Factory scene
Yongda in April, 2014 Yiwu Exhibition
