Home > Industrial Equipment & Components > Boiler & Furnace > Furnace > Steel Forging Heating Medium Frequency Induction Furnace

Steel Forging Heating Medium Frequency Induction Furnace

Name: Steel Forging Heating Medium Frequency Induction Furnace
Brand: yongda
SKU: 130057497

Steel Forging Heating Medium Frequency Induction Furnace thumbnail-1

Steel Forging Heating Medium Frequency Induction Furnace thumbnail-2

Steel Forging Heating Medium Frequency Induction Furnace photo-1

Steel Forging Heating Medium Frequency Induction Furnace photo-2

US$ 9,800 - 25,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Induction Furnace

Usage:

Other, metal forging

Contact Supplier Request Quote Chat Now

Shenqiu Yongda High Frequency Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Qingdao Tianjin Guangzhou or as you request

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Induction Furnace

Usage Other, metal forging

Place of Origin Henan, China

Brand Name yongda

Model Number GTR-400

Voltage 320-420V ( can be changed )

Power(W) 100-1500KW

Certification ISO9001:2000

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Steel forging heating medium frequency induction furnace

Medium frequency induction furnace is widely applied in big and middle sized steel rods , square steel forging heating. Complete induction forging furnace, safe and reliable,equipment running well, easy to maintainence.

Technical specification of medium frequency induction furnace

Model	Rated power	Rated frequency (KHZ)	Temperature℃	Power consumption (KWH/T)	Work piece diameter (MM)
GTR-50	50KW	10	900-1250	350-450	4-30
GTR-100	100KW	8-10	900-1250	350-450	19-41
GTR-150	150KW	6-8	900-1250	350-450	19-41
GTR-200	200KW	6-8	900-1250	350-450	24-51
GTR-250	250KW	6-8	900-1250	350-450	24-51
GTR-300	300KW	2-4	900-1250	350-450	29-61
GTR-350	350KW	2-4	900-1250	350-450	29-61
GTR-400	400KW	2-4	900-1250	350-450	29-81
GTR-500	500KW	2-4	900-1250	350-450	39-81
GTR-600	600KW	1-2	900-1250	350-450	49-101
GTR-750	750KW	1-2	900-1250	350-450	49-101
GTR-1000	1000KW	0.5-1	900-1250	350-450	59-121

Warranty:one year free replacement spare parts. Provide long-terms technical support

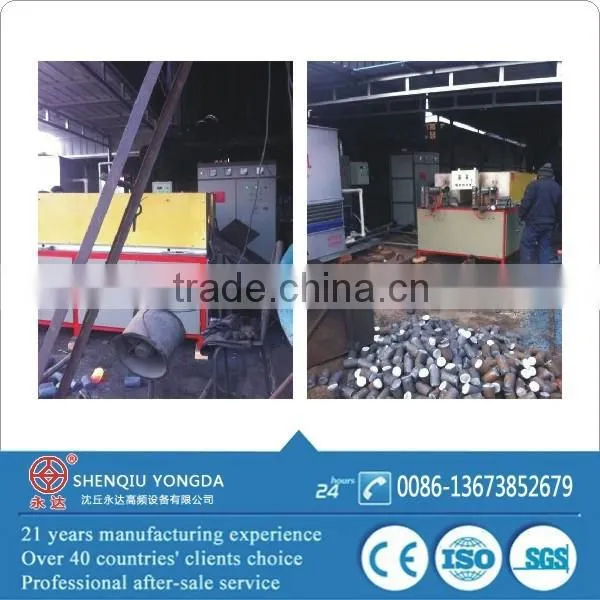

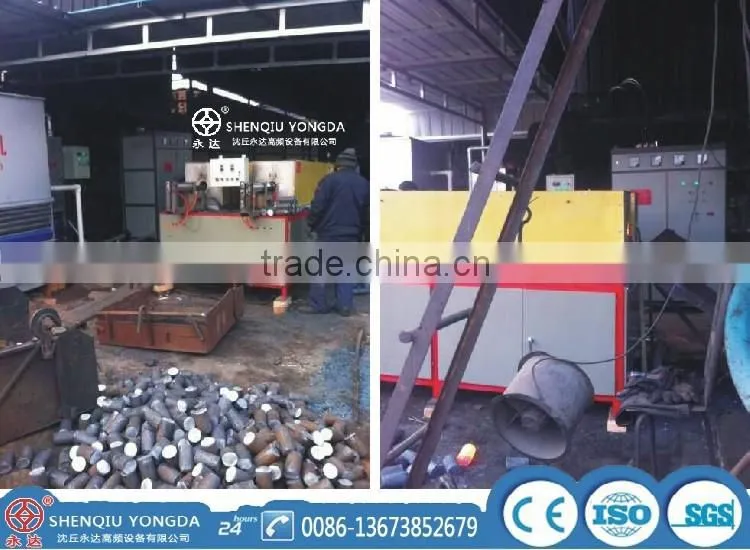

Working onsite of medium frequency induction furnace

Composition of GTR-400 medium frequency induction furnace

1. Induction heating power supply

2. Induction forging furnace

3. Automatic feeding system: cylinder

4.Workbench /support box

5. Auxiliary equipment: closed cooling tower (optional)

Different type of induction forging furnace.

Features of medium frequency induction furnace

1. Full digital control:control with high precision and high reliability
2. Voltage and current double closed-loop control system:to ensure a stable and reliable operation of the system.
3. Perfect protection system: over voltage,over current,lack of phase,lack of water, temperature is high, etc, various of protection,ensure the equipment's components will not be damaged when a fault occurs
4. High powder factor:the power and power factor of the equipment achieve to highest operating values
5. Complete extrocontrol interface:can easily achieve external temperature ect.closed-loop control
6. Power pneumatic performance 100% completely eliminate the problem of start failure

Induction forging round steel rods

Products of Shenqiu Yongda Company:
Medium frequency induction heating machine IGBT and KGPS SCR
High frequency (Super audio ) induction heating machine
Induction hardening machine, induction forging machine,induction brazing machine, induction annealing furnace,
Electromagnetic induction heating equipment,Induction melting furnace ;
CNC hardening machine tool,Automatic feeding steel rods machine,
Round bar,steel pipe induction hardening and tempering equipment
Concrete pump pipe dedicated quenching machine,Hydraulic cylinder cladding equipment;
Closed cooling tower,etc.

Oversea customers visit us .

Contact Information

If you have metal work parts require heating, please feel free to contact us. Our engineer will design the best solution, recommend you suitable machine model, and our machine price is very competitive.
