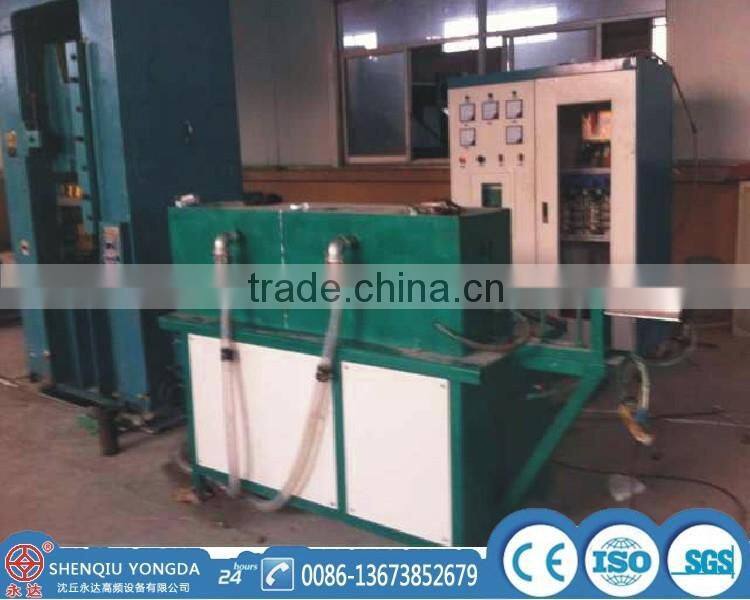

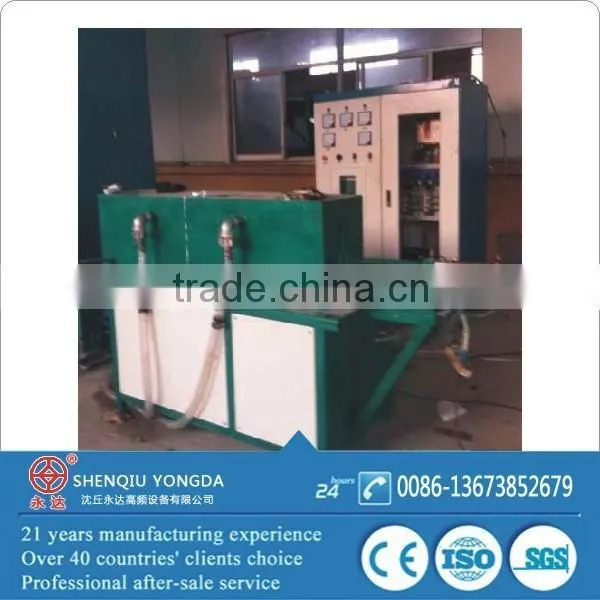

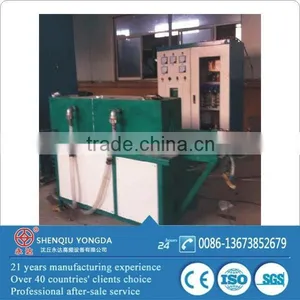

Metal forging medium frequency induction heating machine
Technical parameters of medium frequency induction heating machine
Model | Rated power | Rated frequency (KHZ) | Temperature℃ | Power consumption (KWH/T) | Work piece diameter (MM) |
GTR-50 | 50KW | 10 | 900-1250 | 350-450 | 4-30 |
GTR-100 | 100KW | 8-10 | 900-1250 | 350-450 | 19-41 |
GTR-150 | 150KW | 6-8 | 900-1250 | 350-450 | 19-41 |
GTR-200 | 200KW | 6-8 | 900-1250 | 350-450 | 24-51 |
GTR-250 | 250KW | 6-8 | 900-1250 | 350-450 | 24-51 |
GTR-300 | 300KW | 2-4 | 900-1250 | 350-450 | 29-61 |
GTR-350 | 350KW | 2-4 | 900-1250 | 350-450 | 29-61 |
GTR-400 | 400KW | 2-4 | 900-1250 | 350-450 | 29-81 |
GTR-500 | 500KW | 2-4 | 900-1250 | 350-450 | 39-81 |
GTR-600 | 600KW | 1-2 | 900-1250 | 350-450 | 49-101 |
GTR-750 | 750KW | 1-2 | 900-1250 | 350-450 | 49-101 |
GTR-1000 | 1000KW | 0.5-1 | 900-1250 | 350-450 | 59-121 |
Warranty:All the spare parts of induciton heating power supply is inclued in one year warranty period

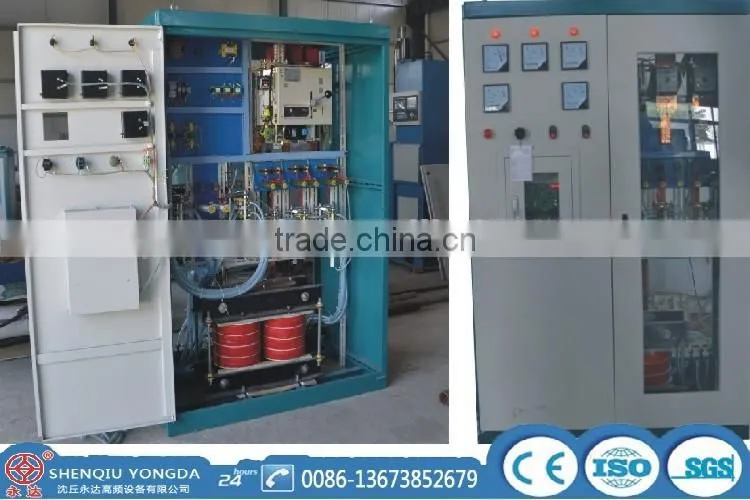

MF Induction heating power supply

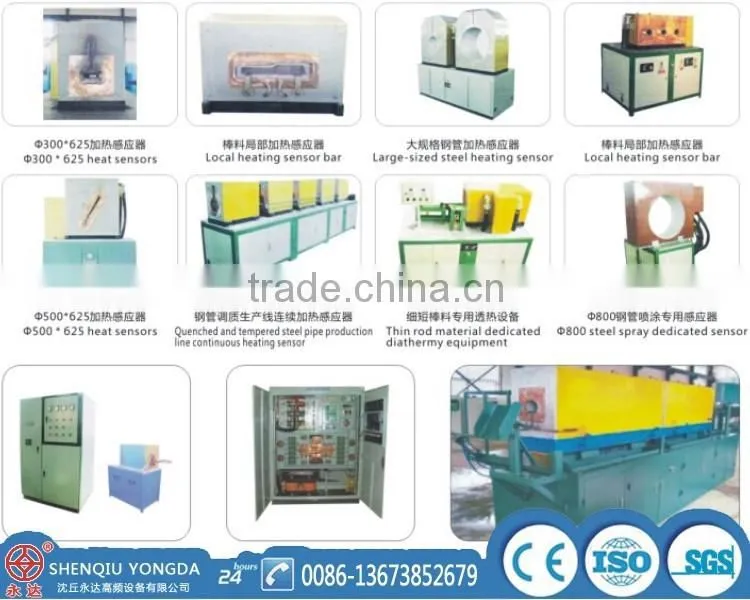

Induction forging furnace :This part is tailor-made,according to work piece size .
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to Research & Development,production of high frequency induction heating machine, medium frequency induction heating equipment,supersonic frequency induction heating machine,induction forging machine, induction hardening machine, adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions. We have international trade office in zhengzhou. East to international airport (CGO), besides, high way, high speed rail,transport is very convenient.
Company products:
Medium frequency induction heating machine IGBT and KGPS SCR
High frequency (Super audio ) induction heating machine
Induction hardening machine, induction forging machine,induction brazing machine, induction annealing furnace,
Electromagnetic induction heating equipment,Induction melting furnace ;
CNC hardening machine tool,Automatic feeding steel rods machine,
Round bar,steel pipe induction hardening and tempering equipment
Concrete pump pipe dedicated quenching machine,Hydraulic cylinder cladding equipment;
Closed cooling tower,etc.
One choice, lifelong friend !
