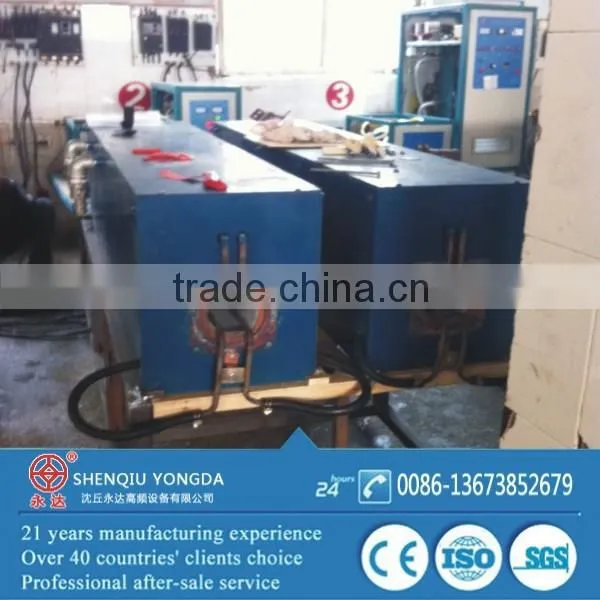

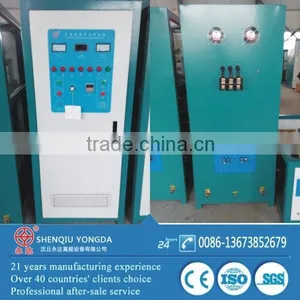

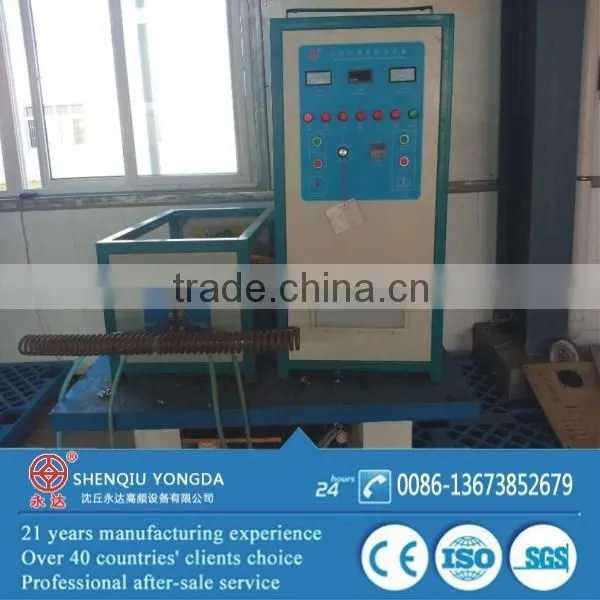

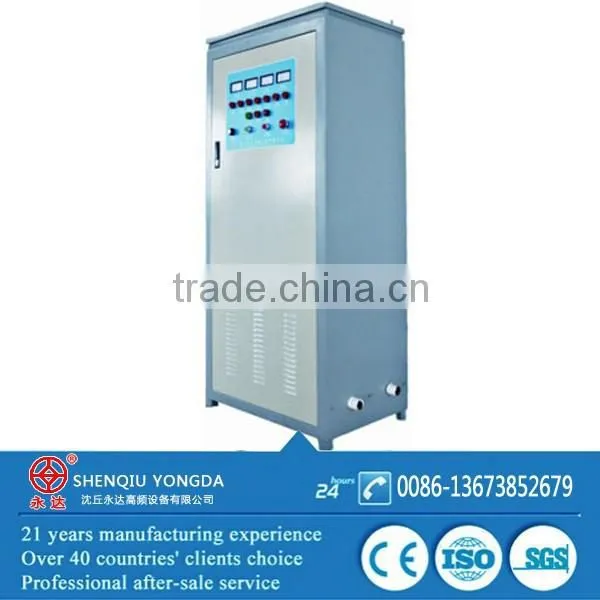

10-500KW IGBT Induction hot forging heating machine
Product introduction
100-500KW new type medium frequency induction heating equipment is based on modern international advanced electric technology theory, adopts Infineon IGBT modules,with strict process technology requirements to produce high-tech products.The product main circuit adopts three-phase bridge rectifier circuit without adjusting voltage, after capacitor filter, half-bridge inverter .main circuit is series resonance,duty cycle adjustable power.
Features of medium frequency hot forging heating machine
1. Power consumption saving:generally saving 10%-20% energy than SCR medium frequency devices.
2. Full protection:over voltage, lack of water,over current,over heating, lack of phase, etc. sound and light alarm system
3. Application range:diameter below 200mm rods tempering, forging,extrusion etc.
Technial specifications
Model |
Input voltage |
Output power |
Oscillation frequency (KHZ) |
Cooling water amount (T/H) |
Cooling water pressure (MPA) |
IGBT100KW/4-10KHZ |
3-380V |
100KW |
4-10KHZ |
3 |
0.2-0.3MPA |
IGBT160KW/4-10KHZ |
3-380V |
160KW |
4-10KHZ |
4 |
0.2-0.3MPA |
IGBT200KW/4-10KHZ |
3-380V |
200KW |
4-10KHZ |
5 |
0.2-0.3MPA |
IGBT250KW/4-10KHZ |
3-380V |
250KW |
4-10KHZ |
6 |
0.2-0.3MPA |
IGBT350KW/4-10KHZ |
3-380V |
350KW |
4-10KHZ |
8 |
0.2-0.3MPA |
IGBT400KW/4-10KHZ |
3-380V |
400KW |
4-10KHZ |
12 |
0.2-0.3MPA |
IGBT500KW/4-10KHZ |
3-380V |
500KW |
4-10KHZ |
15 |
0.2-0.3MPA |
Type 1: Generator 1pc, transformer 1pc, and induction coils 1piece
Type 2: Induction heating generator 1, induction forging furnace 1
Warranty: all the parts of generator are included in one year warranty period,except forging furnace.

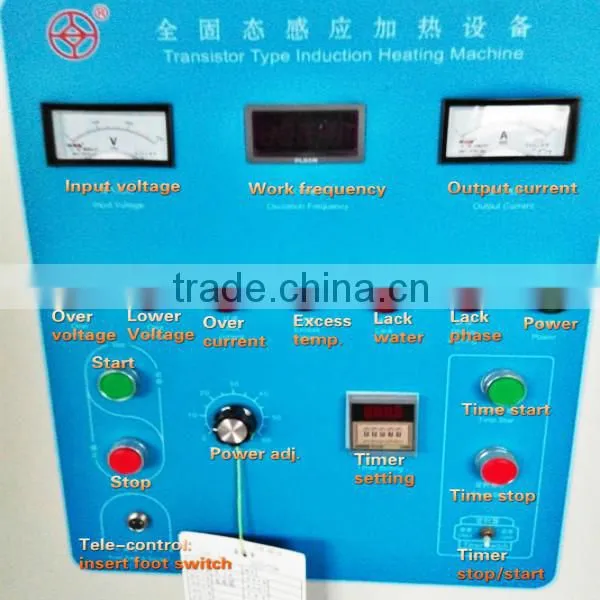

Control panel of IGBT mf hot forging heating machine
PS: The machine itself has many protection functions, over ten alarm lamps, such as over voltage, lower voltage, over current, water temperature is high, lack of water, lack of phase, when any of the lamps light, machine stop heating, prevent machine further damaged, until trouble shooting.
Forging furnace is tailor-made, according to size of your work piece .

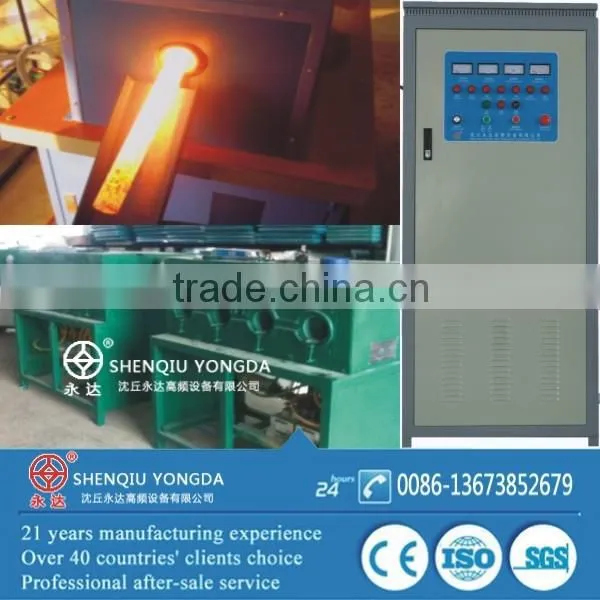

Induction forging furnace
Different shapes of forging furnace, depend on workpiece's specifications
1.Warranty: one year free replacement spare parts.Excess warranty period, you also can buy spare parts with very low cost.
2. Provide install and technology instruction by sending drawings, email, or telephone,video.
3.If you need, will arrange one engineer to your place,instruct install machine and training operators.
4.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
5.Provide long-terms technical support
If you are interest in induction hot forging heating machine,pls do not hesitate to contact us !
