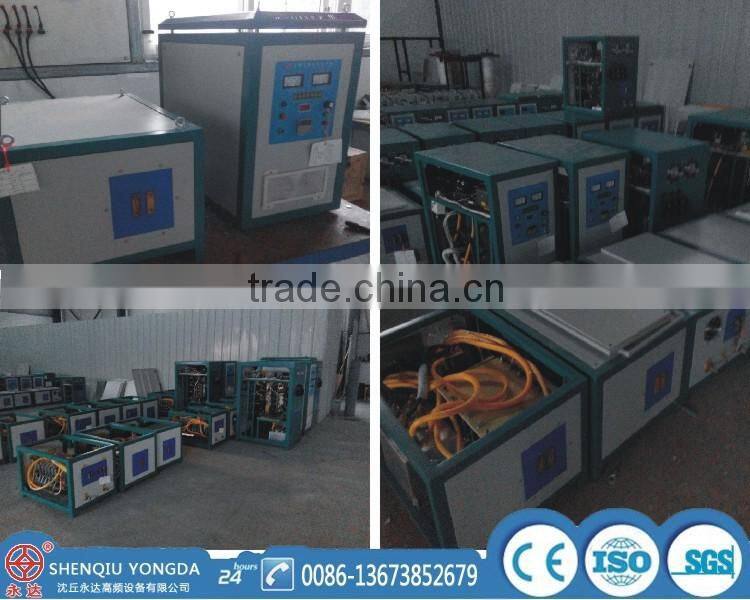

High quality high frequency generator
Features of high frequency generator
1 Adoping MOSFGT and IGBT inverting device, tracking frequency automatically
2 High frequency, heated quickly, its powei consumption is only 20%~30% of eletronic tube induction heating machine and other heating style.
3 Security and reliability, the equipments have the secure voltage and it's secure to operate
4 Manual, automatic regulating automatically, it can protect itself from over voltage, over current, lack of water, phase fail, over hot, etc
5 It has no open-fire, noise and pollution, be suit for the environmental protection and fire, improve the image of the company
6 Recommend usage: Weld, forging, hot cooperate, melting, quenching, annealing etc
Usage of high frequency generator
Brazing welding carbide blade, turning, milling, planing, reamer, diamond saw blade, serrated welding; grinding, drilling, cutting welding; brass, copper, stainless steel pot, etc. hybrid welding of metallic materials.
Technical specifications of high frequency generator
Model | Input voltage | Input current | Oscillation frequency | Cooling water pressure |
WZP-40 | 320-420V | 2-40A | 15-30KHZ | 0.1MPA |
WZP-60 | 320-420V | 3-60A | 15-30KHZ | 0.2MPA |
WZP-90 | 320-420V | 4-90A | 15-30KHZ | 0.3MPA |
WZP-120 | 320-420V | 6-120A | 15-30KHZ | 0.3MPA |
WZP-160 | 320-420V | 6-160A | 15-30KHZ | 0.3MPA |
WZP-200 | 320-420V | 6-200A | 15-30KHZ | 0.3MPA |
WZP-300 | 320-420V | 6-300A | 15-30KHZ | 0.3MPA |
WZP-400 | 320-420V | 6-400A | 8-15KHZ | 0.3MPA |
WZP-500 | 320-420V | 6-500A | 8-15KHZ | 0.3MPA |
Applications of high frequency generator
1. metal tube welding:
such as copper tube, steel tube, and aluminum tube’s butt welding, plug welding and welding sets.
2. alloy cutter welding:
such as alloy turning, milling cutter, planer, saw blades, reamer, boring knife.
3. carbide saw blade welding:
diamond saw blade welding, marble saw blade welding,woodworking saw blade welding, cut grass piece of welding, cut aluminum welding,
4. metal welding:
such as: towel rack, soap nets, towel holder, auto-accessories,moto accessories, metal terminals, hardware pieces, electric heating tube parts and fasteners.
5. customized service:
make machine according to customers' actual working situation.diamond saw blade welding machine.
Product quality certification:ISO9001:2000
Packing for high frequency generator
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support
