Soybean Milk Pot High Frequency Induction Annealing Furnace
Applications of high frequency induction annealing furnace
Annealing → the workpiece is heated to a suitable temperature,with different incubation times,depending on the material and size of the workpiece , and then slow cooling (the cooling speed is the slowest),so as to make the internal organization of the metal achieve equal or at the equilibrium state, to obtain a good process properties and performance, or prepare for further hardening.
(1) Stainless steel: stainless steel cups, stainless steel sink, stainless steel boxes, pans, pots, buckets, cutlery, forks, spoons,
(2), other types:
Metal strap flange, exhaust pipe flange, chain annealing, punching, the fans rivet heating, mine screen annealing.
Pumping gas pipe
Technical parameters of WZP-90 hf induction annealing furnace
| Model | Work power | Output power | Oscillation frequency | Output current | Cooling water pressure | Size | Weight |
| WZP-90 | three phase 380V+/-10% 50-60HZ | 3-45KW | 15-30KHZ | 3-90A | 0.1MPA |
generator 665×400×730mm transformer 660×490×435mm |
62kgs; 47kgs |
More machine models recommendation
Model |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-40 |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
WZP-60 |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-120A |
15-30KHZ |
0.3MPA |
WZP-160 |
320-420V |
6-160A |
15-30KHZ |
0.3MPA |
WZP-200 |
320-420V |
6-200A |
15-30KHZ |
0.3MPA |
WZP-300 |
320-420V |
6-300A |
15-30KHZ |
0.3MPA |
WZP-400 |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
WZP-500 |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |

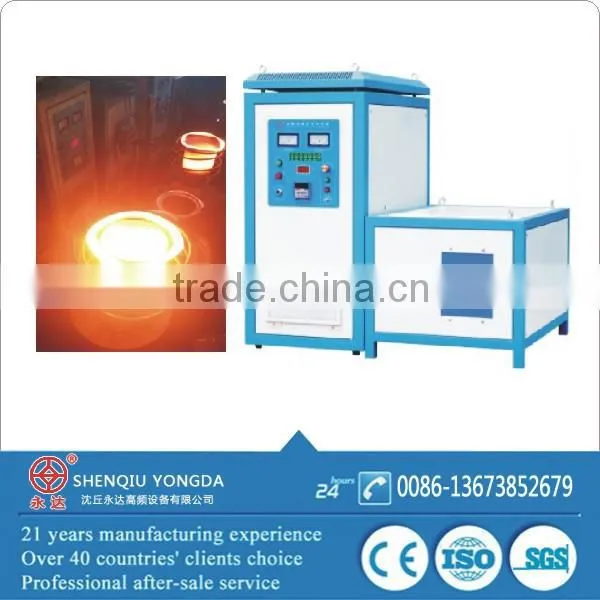

High frequency induction annealing furnace
Features of hf induction annealing furnace
1. IGBT modules, save energy than traditional high frequency tube heater.
2. Protect full.Over current.over voltage,lack of phase,water shortage, etc. more than ten alarm lamps.
3. Heating fast.Within1 second ,temperature rise up to 1200 degree,even higher.
4. No need contacting work pieces, safety, safe and reliable.
5. Environmental friendly,no pollution, good for worker's health
6. Easy to change induction coils, for heating different shape of steel billet
7. Easy to install and operate.
8. Low maintenance cost
High frequency induction annealing furnace used for lathe tool annealing
Cup annealing
More applications of high frequency induction furnace
Packing for high frequency induction annealing furnace:
1.Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
2.Accessories: induction coils,foot switch and installing and operating instructions
3.Shipping: by sea LCL(less than container load) or by air.
High frequency induction annealing furnace manufacturer, Shenqiu Yongda is waiting for you !
