High frequency induction tube pipe annealing furnace
Induction annealing furnace
Technial parameters of induction tube pipe annealing furnace
Depend on differnt specifications of your pipes, we will recommend you suitable machine power.
Model |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-40 |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
WZP-60 |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
WZP-90 |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-120A |
15-30KHZ |
0.3MPA |
WZP-160 |
320-420V |
6-160A |
15-30KHZ |
0.3MPA |
WZP-200 |
320-420V |
6-200A |
15-30KHZ |
0.3MPA |
WZP-300 |
320-420V |
6-300A |
15-30KHZ |
0.3MPA |
WZP-400 |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
WZP-500 |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |
Application of induction tube pipe annealing furnace
(1) Stainless steel: stainless steel cups, stainless steel sink, stainless steel boxes, pans, pots, buckets, cutlery, forks, spoons,
(2), other types:
Metal strap flange, exhaust pipe flange, chain annealing, punching, the fans rivet heating, mine screen annealing.
Annealing → the workpiece is heated to a suitable temperature,with different incubation times,depending on the material and size of the workpiece , and then slow cooling (the cooling speed is the slowest),so as to make the internal organization of the metal achieve equal or at the equilibrium state, to obtain a good process properties and performance, or prepare for further hardening.
Debugging machine work shop(induction tube pipe annealing furnace)
Features of induction tube pipe annealing furnace
1, small size, light weight, simple installation, easy operation.
2, high efficiency, energy saving is very clear, high-frequency equipment save 60% energy than traditional
3, secure, reliable, non-million-volt high-pressure, very safe for the operator.
4, the frequency bandwidth to meet the different parts of brazing, heat treatment, heating before forging.
5, a unique cooling circulation system, ensure that the equipment 24 hours of continuous work.

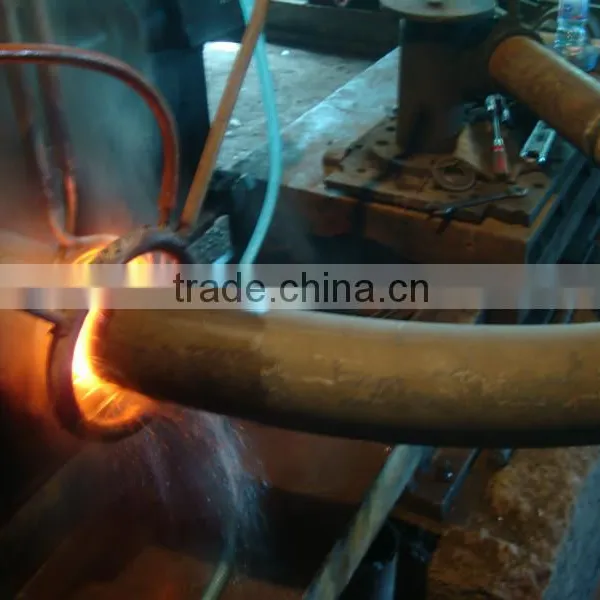

Pictures of induction annealing furnace
Packing for induction tube pipe annealing furnace
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support.
If you have metal wire,pipe,rebar need annealing,welcome to inquiry us,we will guidance and recommend you a suitable machine model and give you best price.
