Home > Products > Induction Annealing > High frequency steel wire annealing/forging equipment
High frequency steel wire annealing/forging equipment
- 500 Set / Sets per Month
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- DOING supply photovoltaic solar panels recycling machine
- four-axis welding machine for commercial sink panel and bowl
- Double Platform Stainless Steel Kitchen Equipment Polishing Machine
- Photovoltaic solar panels recycling plant
- Solar panel recycling machine with high efficiency
Product Details
Place of Origin: | Henan, China | Brand Name: | Yongda | Model Number: | WZP-90 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

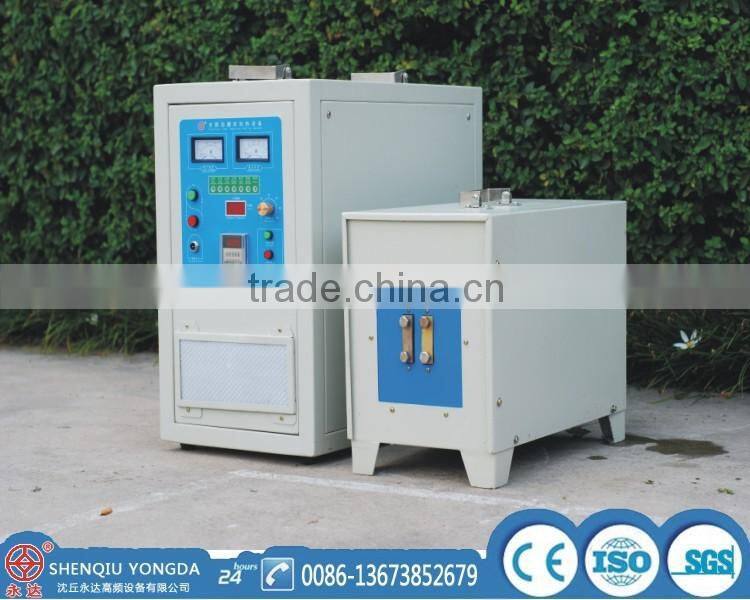

High frequency steel wire annealing/forging equipment
Features of steel wire annealing/forging equipment
Heating evenly to ensure the die life.
Advanced PLC(optional), power, temperature control
Fast start and optimized standby control available
Robust, long-life coil design with outer protection cover
Heavy duty construction for toughest forging conditions
Reduced power consumption with minimal radiant heat loss
Enhanced monitoring and diagnostics, safety and high reliability
Minimal decarbonization from metal surface, high quality forging
Technial parameters of steel wire annealing/forging equipment
Model | Input voltage | Input current | Oscillation frequency | Cooling water pressure |
WZP-40 | 320-420V | 2-40A | 15-30KHZ | 0.1MPA |
WZP-60 | 320-420V | 3-60A | 15-30KHZ | 0.2MPA |
WZP-90 | 320-420V | 4-90A | 15-30KHZ | 0.3MPA |
WZP-120 | 320-420V | 6-120A | 15-30KHZ | 0.3MPA |
WZP-160 | 320-420V | 6-160A | 15-30KHZ | 0.3MPA |
WZP-200 | 320-420V | 6-200A | 15-30KHZ | 0.3MPA |
WZP-300 | 320-420V | 6-300A | 15-30KHZ | 0.3MPA |
WZP-400 | 320-420V | 6-400A | 8-15KHZ | 0.3MPA |
WZP-500 | 320-420V | 6-500A | 8-15KHZ | 0.3MPA |

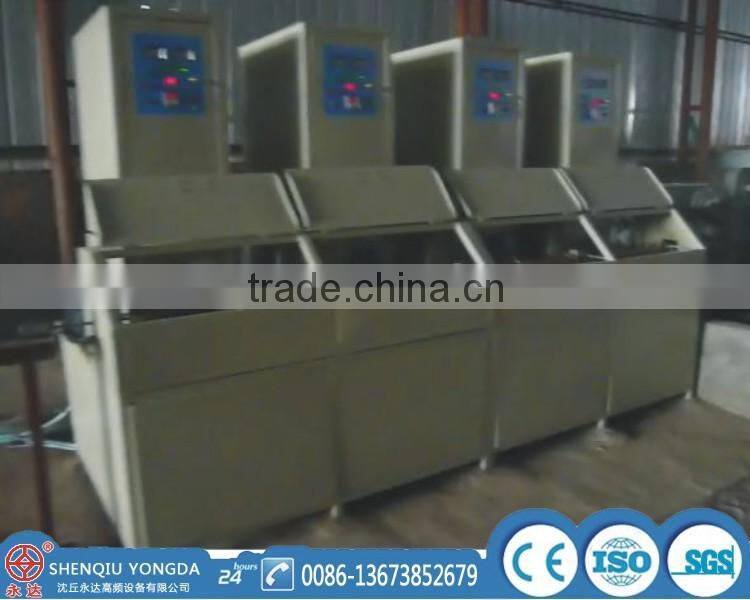

High-frequency sides of ribbed steel production line
Outstanding advantages: the layout is reasonable, stable, adjustable speed, easy operation, so the whole production line automation, continuous, high-speed operation.
Technical process:
1, with the following Φ 12 million hot-rolled steel plate machined threaded through the cold-rolled steel product size: Φ5, Φ7, Φ9, Φ11, Φ12
2, then by high-frequency electric heating equipment to make steel in the wear process of rapid water level increases from 850 down to 400 degrees, steel shiny black color rendering.
Features of steel after high frequency heat-treated:
1, the yield strength of 545-565Mpa, tensile strength 630-680Mpa, elongation A5.65. 18.5% 22.0%
2, high strength, good elongation, fully meet the 500Mpa mechanical properties of steel.
3, reinforced by the State Bureau of Quality Supervision testing over three steel standards.
New high-frequency cold-rolled ribbed steel bar production line.
Rational layout, stable, adjustable speed, easy operation, so the entire production line automation, continuous, high-speed operation. Not only significantly improve the cold-rolled ribbed bar elongation, while making technology, product quality, industrial scale to achieve a breakthrough. Chinese construction steel products by the Quality Supervision and Testing Center, the yield strength of 545-565Mpa, tensile strength 630-680Mpa, elongation A5.65. To reach 18.5% ~ 22.0%, high strength, good elongation, fully meet the 500Mpa The mechanical properties of steel.
New technology has the following characteristics:
(1) through the tempering temperature control technology to significantly improve product elongation, good mechanical properties, to overcome the low ductility of cold-rolled ribbed steel industry problems.
(2) cold rolling and tempering treatment combine to make the sum of two strengthening effect, grain refinement to improve the internal organization to improve the strength of steel, and to ensure the accuracy of the dimensions to become a science of cold rolling deformation heat treatment technology, to promote large-scale industrial development of products to achieve cold-rolled ribbed steel bar in the optimization of a major breakthrough in technology products.
(3) ordinary carbon steel as raw material, through cold and tempering treatment, the condition of yield strength to 500Mpa level, which means reduction using steel, mechanical properties, according to industry experts, each increase of steel strength level of 100MPa, Steel can save 10% to 20%. Way for the use of cold-rolled steel production of high-saving building opens up a new path. This is to improve cold-rolled ribbed steel production process and product optimization is about.
Product quality certifications: ISO9001-2000
Packing for steel wire annealing/forging equipment:
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support.
Company's honor
Shenqiu Yongda high frequency equipment Co.,ltd establish in 1996 , and is a high-tech technology enterprise of Henan Province. Near 20 years induction heating machine production and marketing experience, what ever your metal work piece looks like, our experienced engineer will provide you the best solutions
