Induction heating furnaces for annealing stainless steel
- 500 Set / Sets per Month
- Shanghai Qingdao Tianjin Guangzhou or as you request
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Induction Furnace | Usage: | Other, annealing |
Place of Origin: | Henan, China | Brand Name: | yongda | Model Number: | WZP-90 |
Voltage: | 320-420V | Power(W): | 45KW | Certification: | ISO:9001 |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Induction heating furnaces for annealing stainless steel
Applications of furnaces for annealing stainless steel
(1) Stainless steel: stainless steel cups, stainless steel sink, stainless steel boxes, pans, pots, buckets, cutlery, forks, spoons,
(2), other types:
Metal strap flange, exhaust pipe flange, chain annealing, punching, the fans rivet heating, mine screen annealing.
Pumping gas pipe
Annealing → the workpiece is heated to a suitable temperature,with different incubation times,depending on the material and size of the workpiece , and then slow cooling (the cooling speed is the slowest),so as to make the internal organization of the metal achieve equal or at the equilibrium state, to obtain a good process properties and performance, or prepare for further hardening.
Annealing steel wire production line
4 sets WZP-90 induction annealing furnaces
New high-frequency cold-rolled ribbed steel bar production line.
Rational layout, stable, adjustable speed, easy operation, so the entire production line automation, continuous, high-speed operation. Not only significantly improve the cold-rolled ribbed bar elongation, while making technology, product quality, industrial scale to achieve a breakthrough. Chinese construction steel products by the Quality Supervision and Testing Center, the yield strength of 545-565Mpa, tensile strength 630-680Mpa, elongation A5.65. To reach 18.5% ~ 22.0%, high strength, good elongation, fully meet the 500Mpa The mechanical properties of steel.
New technology has the following characteristics:
(1) through the tempering temperature control technology to significantly improve product elongation, good mechanical properties, to overcome the low ductility of cold-rolled ribbed steel industry problems.
(2) cold rolling and tempering treatment combine to make the sum of two strengthening effect, grain refinement to improve the internal organization to improve the strength of steel, and to ensure the accuracy of the dimensions to become a science of cold rolling deformation heat treatment technology, to promote large-scale industrial development of products to achieve cold-rolled ribbed steel bar in the optimization of a major breakthrough in technology products.
(3) ordinary carbon steel as raw material, through cold and tempering treatment, the condition of yield strength to 500Mpa level, which means reduction using steel, mechanical properties, according to industry experts, each increase of steel strength level of 100MPa, Steel can save 10% to 20%. Way for the use of cold-rolled steel production of high-saving building opens up a new path. This is to improve cold-rolled ribbed steel production process and product optimization is about.

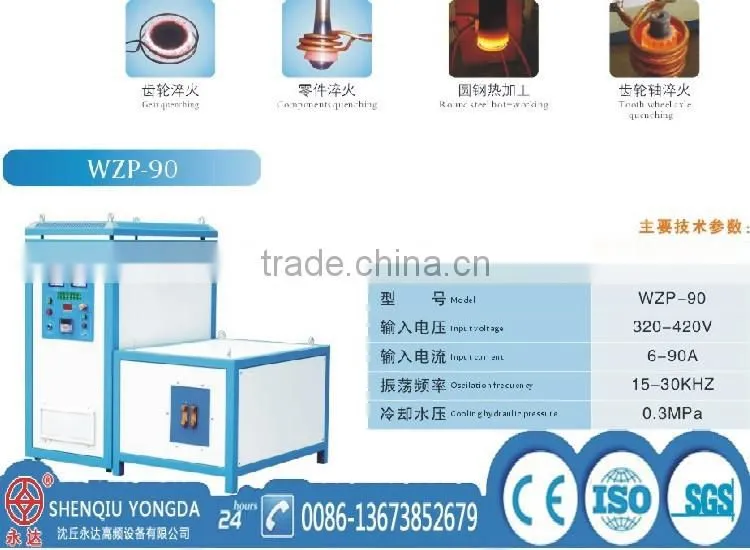

Technical parameters of WZP-90 furnace for annealing
Model | Work power | Output power | Oscillation frequency | Output current | Cooling water pressure | Size | Weight |
WZP-90 | three phase 380V+/-10% 50-60HZ | 3-45KW | 15-30KHZ | 3-90A | 0.1MPA | generator 665×400×730mm transformer 660×490×435mm | 62kgs; 47kgs |
Features of annealing furnaces
1, small size, light weight, simple installation, easy operation.
2, high efficiency, energy saving is very clear, high-frequency equipment save 60% energy than traditional
3, secure, reliable, non-million-volt high-pressure, very safe for the operator.
4, the frequency bandwidth to meet the different parts of brazing, heat treatment, heating before forging.
5, a unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
Model | Input voltage | Input current | Oscillation frequency | Cooling water pressure |
WZP-40 | 320-420V | 2-40A | 15-30KHZ | 0.1MPA |
WZP-60 | 320-420V | 3-60A | 15-30KHZ | 0.2MPA |
WZP-90 | 320-420V | 4-90A | 15-30KHZ | 0.3MPA |
WZP-120 | 320-420V | 6-120A | 15-30KHZ | 0.3MPA |
WZP-160 | 320-420V | 6-160A | 15-30KHZ | 0.3MPA |
WZP-200 | 320-420V | 6-200A | 15-30KHZ | 0.3MPA |
WZP-300 | 320-420V | 6-300A | 15-30KHZ | 0.3MPA |
WZP-400 | 320-420V | 6-400A | 8-15KHZ | 0.3MPA |
WZP-500 | 320-420V | 6-500A | 8-15KHZ | 0.3MPA |

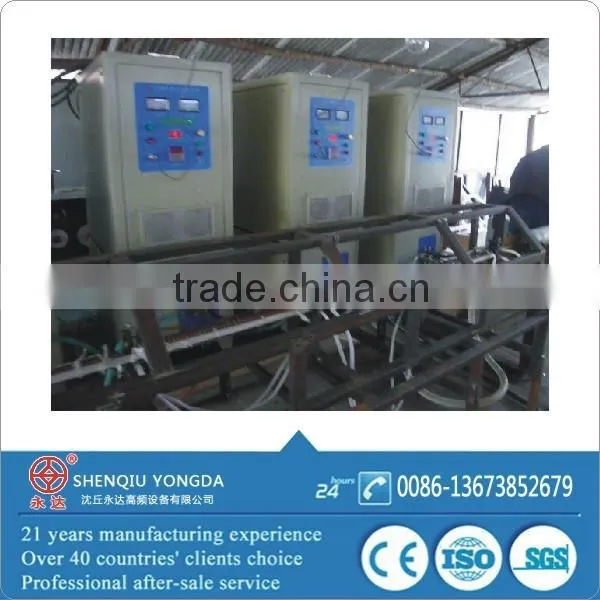

Pictures of furnaces for annealing stainless steel cutters
Induction annealing furnaces
1. Reply your inquiry within 24 hours
2. Recommend suitable machine model,according to your work piece specifications and heating requirements.
3. Send detailed product parameters, photos and price.
4. Solve all the problem , such as shipping cost, shipping time,delivery time, warranty etc,what you concerned.
5. Reach an agreements, sign proforma invoice or contract.
6. Produce induction heating equipment strictly based on the PI/contract.
7. Arrange goods shipment
8.Tracking goods and help you install and operating machines.
9. Email or Call visit.
10.Provide long-terms technical support.
