Stainless steel tube annealing equipment
Features of tube annealing equipment
1, high frequency transistors my company adopted than high frequency power saving up to 40-60%, saving 60%, external support facilities to reduce investment by 75%.
2, a unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
3, small size, light weight, easy to move, no million-volt high-voltage danger, safe operation.
4, high reliability, easy to maintain and improve the over voltage, over current, overheating, lack of, water and other self-protection.
5, the use of large scale integrated circuit digital automatic control, with manual, automatic, semi-automatic and fixed time control.
6, automatic frequency tracking, stepless power adjustment, easy to use, 10 minutes to learn.
Technial parameters of WZP-120 tube annealing equipment
Model |
WZP-120 |
Work power |
3 phase 380V+/-10%, 50-60HZ |
Input voltage |
320V-420V can be changed, depend on your country's electric power |
Input current |
6-120A |
Input power |
3-65KW(power adjusted stepless) |
Oscillation frequency |
15-30 KHZ |
Cooling water pressure |
0.2 MPA |
|
Size of geneartor: Transformer |
665*400*730 660*490*435mm |
Weight of generator ; transformer |
48kgs; 66kgs |
Water cooling protection point |
Below 50 degree celsius |

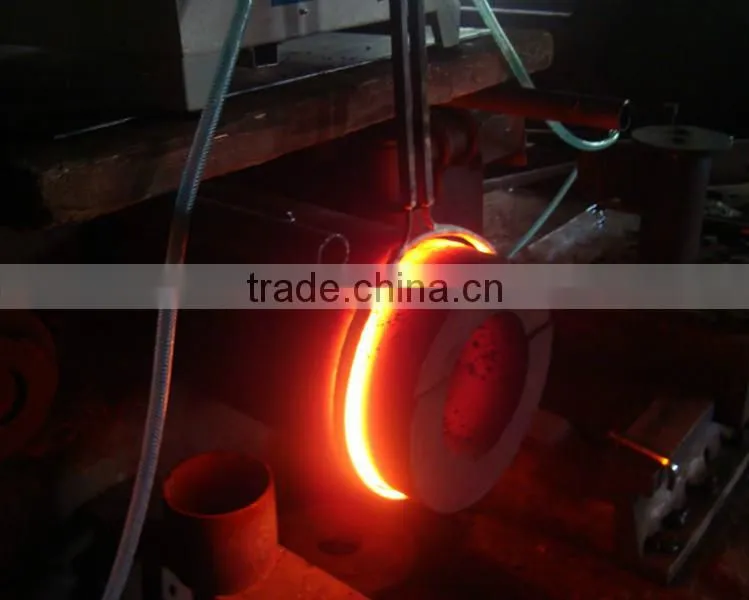

Diameter 300mm thickness 60mm pipe annealing
