Spring Rolls Induction Heater for Annealing
US$ 896 - 12,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
yongda
Model Number:
WZP-50kw
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin Guangzhou or as you request
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Popular WZP-90(45KW) Induction Heating Annealing MachineUS$ 800 - 5,000MOQ: 1 Set -
Stainless Steel Tube Annealing EquipmentUS$ 1,900 - 9,500MOQ: 1 Set
-
IGBT High Frequency Induction Annealing MachineUS$ 1,200 - 4,800MOQ: 1 Set
-
High Frequency Induction Stainless Steel Annealing MachineUS$ 880 - 2,500MOQ: 1 Set
-
Induction Heating Furnaces for Annealing Stainless SteelUS$ 880 - 2,500MOQ: 1 Set
Place of Origin
Henan, China
Brand Name
yongda
Model Number
WZP-50kw
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
induction heater for annealing1. igbt system,save energy 30%
2. power adjustable 10-65kw
3.easy operation

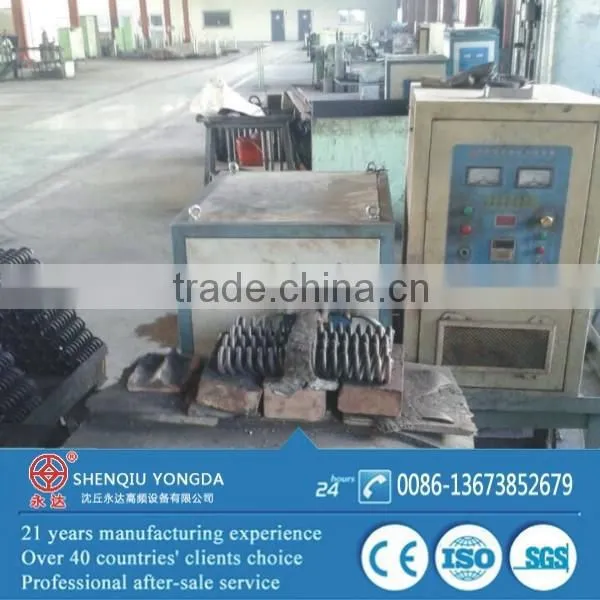

Spring rolls induction heater for annealing
Product Description
Application of induction heater for annealing:
1, annealed stainless steel industry. Such as stainless steel pots, pot annealing stretching, curling, and annealing annealing sink, stainless steel pipe, stainless steel tableware, stainless steel cup;
2, other metal parts of the annealing. Such as golf heads, clubs, Tongsuo head, brass hardware fittings, kitchen knife, blade, aluminum pot, aluminum barrel, aluminum radiator and a variety of aluminum products
1, annealed stainless steel industry. Such as stainless steel pots, pot annealing stretching, curling, and annealing annealing sink, stainless steel pipe, stainless steel tableware, stainless steel cup;
2, other metal parts of the annealing. Such as golf heads, clubs, Tongsuo head, brass hardware fittings, kitchen knife, blade, aluminum pot, aluminum barrel, aluminum radiator and a variety of aluminum products
Induction heater for annealing
Technical parameters of induction heater for annealing
Model(KW) |
Input voltage |
Input current |
Oscillation frequency |
Cooling water pressure |
WZP-16 |
320-420V |
2-40A |
15-30KHZ |
0.1MPA |
WZP-36 |
320-420V |
3-60A |
15-30KHZ |
0.2MPA |
WZP-50 |
320-420V |
4-90A |
15-30KHZ |
0.3MPA |
WZP-65 |
320-420V |
6-120A |
15-30KHZ |
0.3MPA |
WZP-85 |
320-420V |
6-160A |
15-30KHZ |
0.3MPA |
WZP-120 |
320-420V |
6-200A |
15-30KHZ |
0.3MPA |
WZP-160 |
320-420V |
6-300A |
15-30KHZ |
0.3MPA |
WZP-200 |
320-420V |
6-400A |
8-15KHZ |
0.3MPA |
WZP-260 |
320-420V |
6-500A |
8-15KHZ |
0.3MPA |
Features of induction heater for annealing
1.Fast heating, heating wide:
Less than one second ,fastest heating rate (speed adjustable ).
2. Protection all:
With over voltage, over current, overheating, lack of water and other alarm indicator, and automatic control and protection.
3. Safe and reliable:
no million-volt high-pressure, very safe for the operator:
Connect the power supply, the use of induction loop and out of the water, small size, light weight, learn to operate a few minutes.
4. High efficiency:
energy saving is very obvious, high-frequency devices than the traditional 60% saving Very even heating.
5.warming up quickly:
after annealing without waste. oxide reduction (sensor density, by adjusting, so that all parts of the workpiece, the coil temperature they need.)
6. Small size, light weight:
Only a few dozen kilograms, small footprint, saving plant. Business environment, protecting the environment, security is no noise, dust and other emissions.
7. Eliminate high pressure:
Eliminating the generation of nearly ten thousand high-voltage step-up changes, security is very high.
8. frequency bandwidth :
to meet the different parts of brazing, heat treatment, heating before forging
9.unique cooling circulation system:
ensure that the equipment 24 hours of continuous work.
Less than one second ,fastest heating rate (speed adjustable ).
2. Protection all:
With over voltage, over current, overheating, lack of water and other alarm indicator, and automatic control and protection.
3. Safe and reliable:
no million-volt high-pressure, very safe for the operator:
Connect the power supply, the use of induction loop and out of the water, small size, light weight, learn to operate a few minutes.
4. High efficiency:
energy saving is very obvious, high-frequency devices than the traditional 60% saving Very even heating.
5.warming up quickly:
after annealing without waste. oxide reduction (sensor density, by adjusting, so that all parts of the workpiece, the coil temperature they need.)
6. Small size, light weight:
Only a few dozen kilograms, small footprint, saving plant. Business environment, protecting the environment, security is no noise, dust and other emissions.
7. Eliminate high pressure:
Eliminating the generation of nearly ten thousand high-voltage step-up changes, security is very high.
8. frequency bandwidth :
to meet the different parts of brazing, heat treatment, heating before forging
9.unique cooling circulation system:
ensure that the equipment 24 hours of continuous work.
Induction heater for annealing rebar
If you have metal wire, rebar need annealing,welcome to inquiry us,we will guidance and recommend you a suitable machine model and give you best price.
