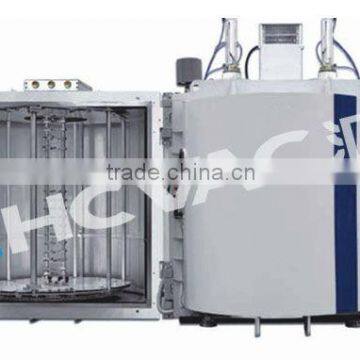

Magnetron Sputtering Coating machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port SHENZHEN
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Coating Production Line, Coating production line
Substrate	Glass	Coating	Vacuum Coating
Place of Origin	Guangdong, China	Brand Name	HUICHENG
Model Number	JTZ-series for Magnetron Sputtering Coating machine	Voltage	380V for Magnetron Sputtering Coating machine
Certification	CE,ISO9001	Warranty	1 year warranty,lifetime maintanance
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Magnetron Sputtering Coating machine :

Technical parameter:

Mode Dimension	JTZ-1200	JTZ-1200	JTZ-1300	JTZ-1400
	1200*1400mm	1200*1500mm	1300*1800mm	1400*1800mm
Film type	Meal film, translucent film, nonconductive film, electromagnetism shield film, dielectric film, etc.
Power source	Resistance evaporation power, DC magnetron power,
Sputtering and electrode structure	Column magnetron targets, plane rectangle targets, twin targets, evaporation electrode.
Vacuum chamber structure	Vertical double door, Vertical single door, pump system postposition, horizontal single door, pump system for side.
Ultimate vacuum	4.0*10^-4pa
Vacuum system	Diffusion pump +Roots pump +Mechanical pump +Holding pump
Pump time	Pump from atmosphere to 8.5*10^-3,15 minutes
Workpiece motion mode	Public rotation/ Frequency control
Control mode	Manual/Automatic all in one mode, Touch screen + PLC
Remark	We can design the dimension of the equipment according to customers special technique requirement.

We can make design the dimension of the vacuum chamber according to your requirement. We can also design and configure the vacuum unit and electric controlling system according to your requirement.
