Home > Products > New Products > fruit plastic basket injection molding machine HDX438-658T

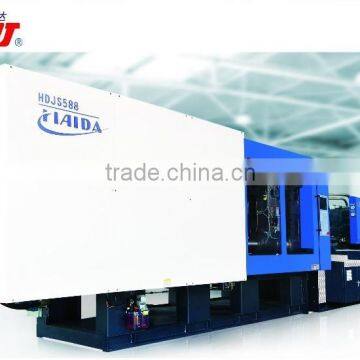

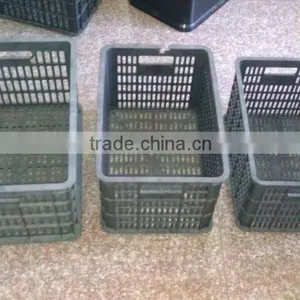

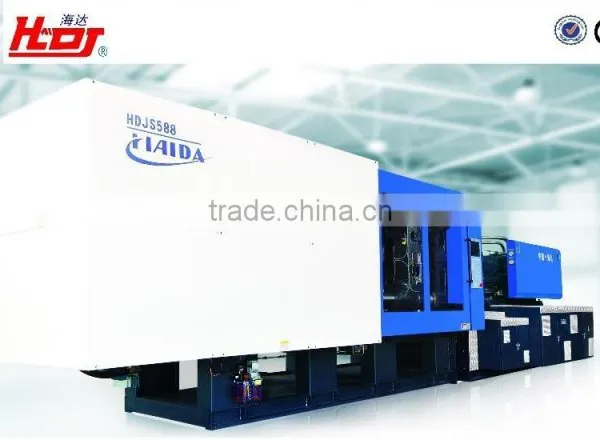

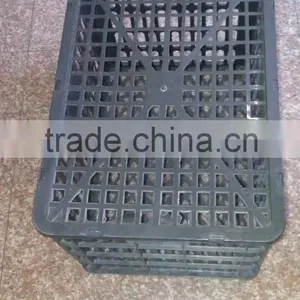

fruit plastic basket injection molding machine HDX438-658T
- 20 Set / Sets per Month
- NINGBO
- T/T
Product Details
Condition: | New | Type: | Preform Injection | Style: | Horizontal |
Brand Name: | HAIDA | Model Number: | HDX438-658 | Place of Origin: | Zhejiang, China |
Plastic Type: | Thermoplastic | Automatic: | Yes | Injection Weight: | 1488-2826G |
Clamping Force: | 4380-6580KN | Opening Stroke: | 720-920MM | Power(W): | 41-60KW |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
SPECIFICATIONS
HDX438
ITEM | UNIT | DATA | ||||
Injection Unit | Screw Diameter | mm | 75 | 80 | 83 | |
Screw L/D Ratio | L/D | 22.5 | 21.1 | 20.3 | ||
Injection Volume | cm3 | 1634 | 1860 | 2002 | ||
Shot Weight | g | 1488 | 1693 | 1822 | ||
Injection Pressure | Mpa | 180 | 158 | 147 | ||
Clamping Unit | Clamping Force | KN | 4380 | |||
Opening Stroke | mm | 720 | ||||
Mould Thickness(Min-Max) | mm | 300-780 | ||||
Space Between Tie-Bars | mm | 765×765 | ||||
Ejector Force | KN | 125 | ||||
Ejector Stroke | mm | 200 | ||||
General | Motor Power | KW | 41 | |||
Heater | KW | 25 | ||||
Pump Pressure | Mpa | 16 | ||||
Machine Dimension | m | 8.1×1.9×2.2 | ||||
Machine Weight | T | 15 | ||||
Mould Orientation Ring Diameter | mm | Φ200 | ||||
Nozzle Radius | mm | SR15 |
HDX538
ITEM | UNIT | DATA | ||||
Injection Unit | Screw Diameter | mm | 80 | 85 | 90 | |
Screw L/D Ratio | L/D | 21.1 | 19.9 | 18.8 | ||
Injection Volume | cm3 | 2069 | 2336 | 2619 | ||
Shot Weight | g | 1883 | 2126 | 2383 | ||
Injection Pressure | Mpa | 178 | 158 | 141 | ||
Clamping Unit | Clamping Force | KN | 7380 | |||
Opening Stroke | mm | 780 | ||||
Mould Thickness(Min-Max) | mm | 300-800 | ||||
Space Between Tie-Bars | mm | 810×810 | ||||
Ejector Force | KN | 125 | ||||
Ejector Stroke | mm | 220 | ||||
General | Motor Power | KW | 55 | |||
Heater | KW | 27 | ||||
Pump Pressure | Mpa | 16 | ||||
Machine Dimension | m | 8.5×1.9×2.3 |
HDX588
ITEM | UNIT | DATA | ||||
Injection Unit | Screw Diameter | mm | 80 | 85 | 90 | |
Screw L/D Ratio | L/D | 21.1 | 19.9 | 18.8 | ||
Injection Volume | cm3 | 2211 | 2496 | 2798 | ||
Shot Weight | g | 2012 | 2271 | 2546 | ||
Injection Pressure | Mpa | 178 | 156 | 141 | ||
Clamping Unit | Clamping Force | KN | 5880 | |||
Opening Stroke | mm | 830 | ||||
Mould Thickness(Min-Max) | mm | 350-830 | ||||
Space Between Tie-Bars | mm | 830×830 | ||||
Ejector Force | KN | 152 | ||||
Ejector Stroke | mm | 220 | ||||
General | Motor Power | KW | 55 | |||
Heater | KW | 30 | ||||
Pump Pressure | Mpa | 16 | ||||
Machine Dimension | m | 8.8×2.0×2.4 | ||||
Machine Weight | T | 20 | ||||
Mould Orientation Ring Diameter | mm | Φ200 | ||||
Nozzle Radius | mm | SR15 |
HDX658
ITEM | UNIT | DATA | ||||
Injection Unit | Screw Diameter | mm | 85 | 90 | 95 | |
Screw L/D Ratio | L/D | 21.2 | 20 | 19 | ||
Injection Volume | cm3 | 2485 | 2786 | 3105 | ||
Shot Weight | g | 2261 | 2535 | 2826 | ||
Injection Pressure | Mpa | 182 | 163 | 146 | ||
Clamping Unit | Clamping Force | KN | 6580 | |||
Opening Stroke | mm | 920 | ||||
Mould Thickness(Min-Max) | mm | 350-860 | ||||
Space Between Tie-Bars | mm | 915×915 | ||||
Ejector Force | KN | 152 | ||||
Ejector Stroke | mm | 250 | ||||
General | Motor Power | KW | 60 | |||
Heater | KW | 34 | ||||
Pump Pressure | Mpa | 16 | ||||
Machine Dimension | m | 9.3×2.2×2.3 | ||||
Machine Weight | T | 28 | ||||
Mould Orientation Ring Diameter | mm | Φ200 | ||||
Nozzle Radius | mm | SR15 |
STANDARD DEVICE
1. Double-cylinder balance injection system 2. Multi-stage pressure & speed injection 3. Back-pressure adjustment device 4. Decompression 5. High speed clamping 6. Low pressure mold protection 7. Multiple hydraulic ejector knock-out 8. Lubrication system 9. Hydraulic pressure full proportional control 10. All computer control system 11. Molding data memory sytem
STANDARD ACCESSORIES
1. Mechanical leveling pad 2. Spare parts 3. Lubrication oil
SELECTABLE
1. Drying hopper 2. Auto-loader 3. Hopper magnet 4. Mold clamps 5. Hydraulic unscrew device 6. Water cooler 7. Mold temperature controller 8. Auto color mixer with measuring device 9. Oil temperature controller 10. Oil bypass filter
ILLUMINATIONS
Theoretics shot capacity=(plastic injector feeder section area)×(screw stroke) Shot weight is 91% PS theoretics shot capacity Plasticizing ability and shot speed are PS value
