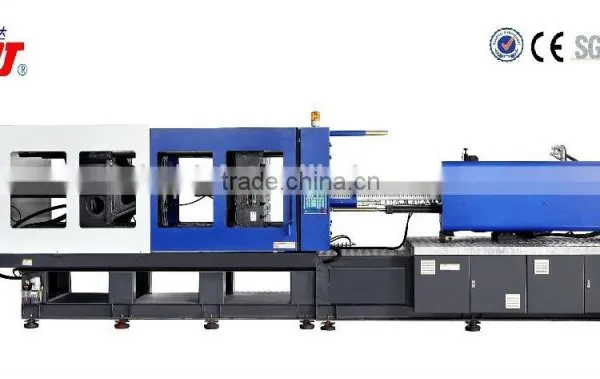

fruit plastic basket injection molding machine HDX438-658T

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port NINGBO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Preform Injection
Style	Horizontal	Brand Name	HAIDA
Model Number	HDX438-658	Place of Origin	Zhejiang, China
Plastic Type	Thermoplastic	Automatic	Yes
Injection Weight	1488-2826G	Clamping Force	4380-6580KN
Opening Stroke	720-920MM	Power(W)	41-60KW
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

SPECIFICATIONS

HDX438

ITEM		UNIT	DATA
Injection Unit	Screw Diameter	mm	75	80	83
	Screw L/D Ratio	L/D	22.5	21.1	20.3
	Injection Volume	cm³	1634	1860	2002
	Shot Weight	g	1488	1693	1822
	Injection Pressure	Mpa	180	158	147
Clamping Unit	Clamping Force	KN	4380
	Opening Stroke	mm	720
	Mould Thickness(Min-Max)	mm	300-780
	Space Between Tie-Bars	mm	765×765
	Ejector Force	KN	125
	Ejector Stroke	mm	200
General	Motor Power	KW	41
	Heater	KW	25
	Pump Pressure	Mpa	16
	Machine Dimension	m	8.1×1.9×2.2
	Machine Weight	T	15
	Mould Orientation Ring Diameter	mm	Φ200
	Nozzle Radius	mm	SR15

HDX538

ITEM		UNIT	DATA
Injection Unit	Screw Diameter	mm	80	85	90
	Screw L/D Ratio	L/D	21.1	19.9	18.8
	Injection Volume	cm³	2069	2336	2619
	Shot Weight	g	1883	2126	2383
	Injection Pressure	Mpa	178	158	141
Clamping Unit	Clamping Force	KN	7380
	Opening Stroke	mm	780
	Mould Thickness(Min-Max)	mm	300-800
	Space Between Tie-Bars	mm	810×810
	Ejector Force	KN	125
	Ejector Stroke	mm	220
General	Motor Power	KW	55
	Heater	KW	27
	Pump Pressure	Mpa	16
	Machine Dimension	m	8.5×1.9×2.3

HDX588

ITEM		UNIT	DATA
Injection Unit	Screw Diameter	mm	80	85	90
	Screw L/D Ratio	L/D	21.1	19.9	18.8
	Injection Volume	cm³	2211	2496	2798
	Shot Weight	g	2012	2271	2546
	Injection Pressure	Mpa	178	156	141
Clamping Unit	Clamping Force	KN	5880
	Opening Stroke	mm	830
	Mould Thickness(Min-Max)	mm	350-830
	Space Between Tie-Bars	mm	830×830
	Ejector Force	KN	152
	Ejector Stroke	mm	220
General	Motor Power	KW	55
	Heater	KW	30
	Pump Pressure	Mpa	16
	Machine Dimension	m	8.8×2.0×2.4
	Machine Weight	T	20
	Mould Orientation Ring Diameter	mm	Φ200
	Nozzle Radius	mm	SR15

HDX658

ITEM		UNIT	DATA
Injection Unit	Screw Diameter	mm	85	90	95
	Screw L/D Ratio	L/D	21.2	20	19
	Injection Volume	cm³	2485	2786	3105
	Shot Weight	g	2261	2535	2826
	Injection Pressure	Mpa	182	163	146
Clamping Unit	Clamping Force	KN	6580
	Opening Stroke	mm	920
	Mould Thickness(Min-Max)	mm	350-860
	Space Between Tie-Bars	mm	915×915
	Ejector Force	KN	152
	Ejector Stroke	mm	250
General	Motor Power	KW	60
	Heater	KW	34
	Pump Pressure	Mpa	16
	Machine Dimension	m	9.3×2.2×2.3
	Machine Weight	T	28
	Mould Orientation Ring Diameter	mm	Φ200
	Nozzle Radius	mm	SR15

STANDARD DEVICE

1. Double-cylinder balance injection system 2. Multi-stage pressure & speed injection 3. Back-pressure adjustment device 4. Decompression 5. High speed clamping 6. Low pressure mold protection 7. Multiple hydraulic ejector knock-out 8. Lubrication system 9. Hydraulic pressure full proportional control 10. All computer control system 11. Molding data memory sytem

STANDARD ACCESSORIES

1. Mechanical leveling pad 2. Spare parts 3. Lubrication oil

SELECTABLE

1. Drying hopper 2. Auto-loader 3. Hopper magnet 4. Mold clamps 5. Hydraulic unscrew device 6. Water cooler 7. Mold temperature controller 8. Auto color mixer with measuring device 9. Oil temperature controller 10. Oil bypass filter

ILLUMINATIONS

Theoretics shot capacity=(plastic injector feeder section area)×(screw stroke) Shot weight is 91% PS theoretics shot capacity Plasticizing ability and shot speed are PS value
