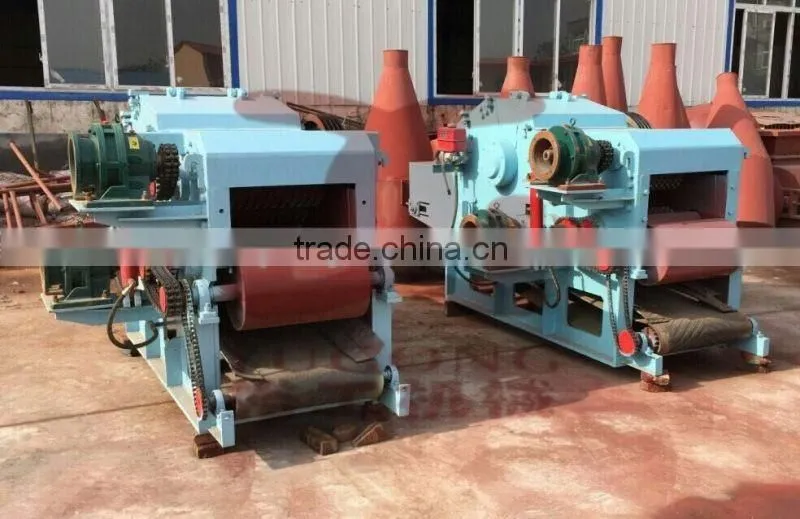

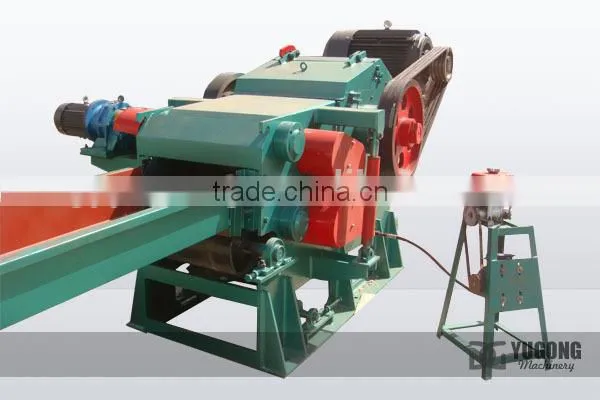

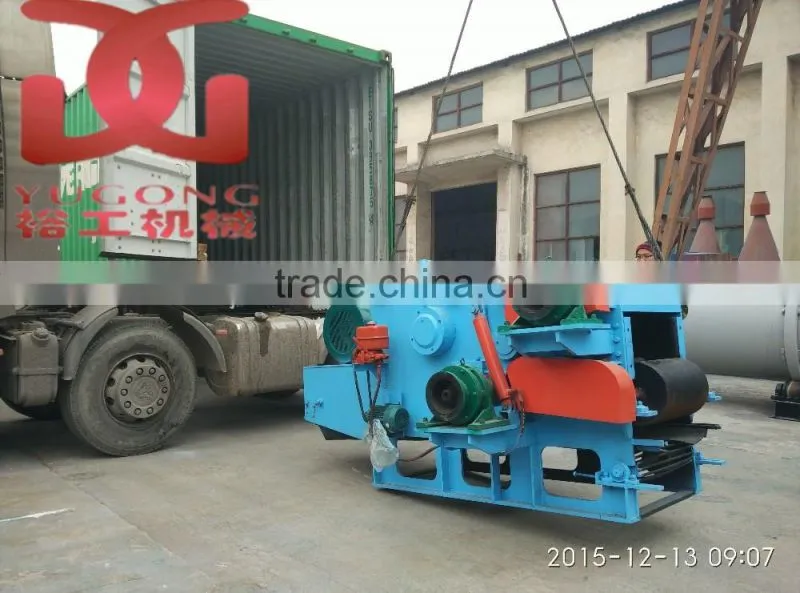

Yugong drum wood chipper,wood branch crusher
Product Description of wood branch crusher
Yugong wood branch crusher is mainly used for cutting branches, small trees, paper plates, planks with diameter or thickness below 120mm. The cut wood chips is used as pellets making raw material. The cutting part is a rotating drum with a number of cutting knives which can process wood into wood chips.
Technical Parameters of wood branch crusher
|
Model
Item |
BX215 |
BX216-3 |
BX218-6 |
|
Feeding Conveyor (length, m) |
6 |
6 |
8 |
|
Discharging Conveyor (length, m) |
13.6 |
13.6 |
13.6 |
|
Inlet Dimension (mm) |
160*400 |
230*500 |
300*680 |
|
Blades Qty (pcs) |
2 |
3 |
6 |
|
Knife Roll Diameter (mm) |
500 |
600 |
800 |
|
Knife Roll Speed (rpm) |
592 |
590 |
650 |
|
Max. Chipping Diameter (mm) |
160 |
230 |
300 |
|
Size of Finish Chips (length*width*thickness, mm) |
20/25*20/25*5 |
20/25*20/25*5 |
20/25*20/25*5 |
|
Capacity (based on upper final size, t/h) |
2 |
3 |
8 |
|
Main Motor Power (kw) |
45 |
55 |
110 max |
|
Feeding Motor Power (kw) |
2.2 - 3 |
3 - 4 |
4 - 5 |
|
Discharging Motor Power (kw) |
3 |
3 |
3 |
|
Oil Pump Motor Power (kw) |
1.5*1 |
1.5*1 |
1.5*1 |
|
Machine Weight (kg) |
2990 |
4070 |
7000 |
|
External Dimension (mm) |
1470*1550*970 |
1800*1900*1210 |
2200*2150*1500 |
We Yugong Machinery Manufacturing Factory main provide detailed pellet making line solution
If you have any needs for the wood branch crusher,just feel free to contact us.
