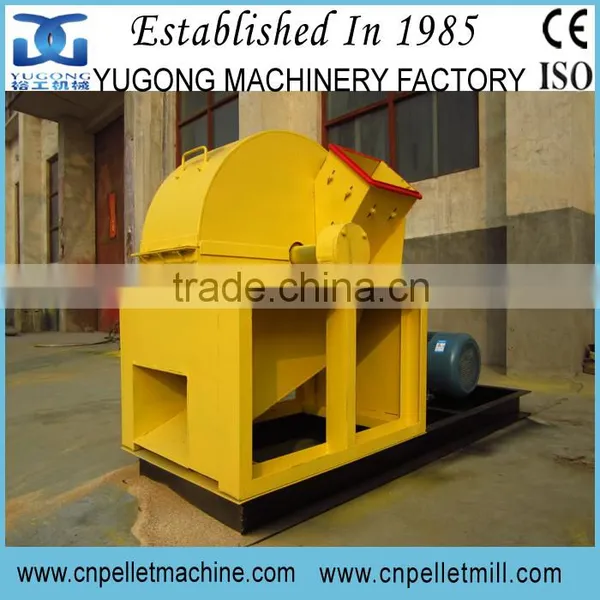

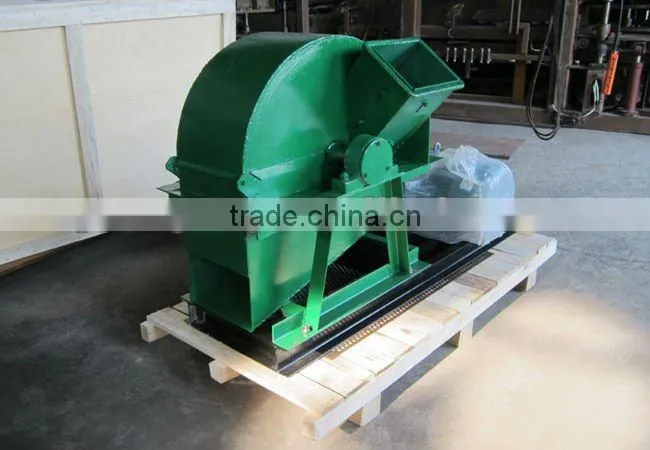

Yugong small wood crusher machine,disc wood crusher machine
Description of Disc Wood Crusher Machine:
This wood crusher machine is a disc like wood chipping and crushing machine applied to chip wood logs with diameter of 50-250mm. The diameter of wood chips/sawdust can be only 2-5mm, which is suitable for further pelletizing or briquetting for wood pellets making.
Working Principle of Disc Wood Crusher Machine:
The disc wood crusher machine consists of machine body, chipping blades, re-crushing hammers, sieving part, etc. It has the features of chipping and crushing in one machine, one step operation of sawdust making and there's no need to use other wood chippers for preprocessing of wood logs.
Disc wood chipper is designed with the function of double breaking by slice and blow force. The blades chipping part can slice/chip the logs, branches, roots into small pieces firstly and then the hammers crushing part will blow and impact these small pieces into nearly powdery material. And the size of final wood particles can be controlled by the aperture of sieve.
Technical Parameters of disc wood crusher machine:
| Model | Cutter Plate Diameter(mm) |
Quantity of Alloy Cutters (pcs) |
Length of Cutter (mm) |
Dimension of Feed Inlet (mm) |
Shaft Rotation Speed (r/min) |
Motor Power, (Kw) |
Capacity, (Kg/h) |
External Dimension (mm) |
| YGM-600 | 600 | 4 | 200 | 180*180 | 1460 | 15 | 500-800 | 1500*900*1000 |
| YGM-800 | 800 | 6 | 250 | 250*250 | 1460 | 22 | 800-1200 | 2000*1100*1300 |
The disc wood crusher machine has been exported to many countries,and to be welcomed.
We Gongyi Yugong Machinery Manufacturing Factory is located in Gongyi City,Henan,China.
The nearest airport is Zhengzhou Xinzheng International Airport.
You are always welcome to visit our factory.
