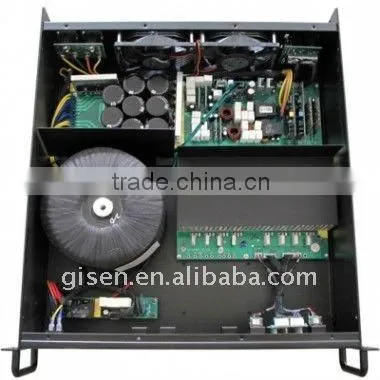

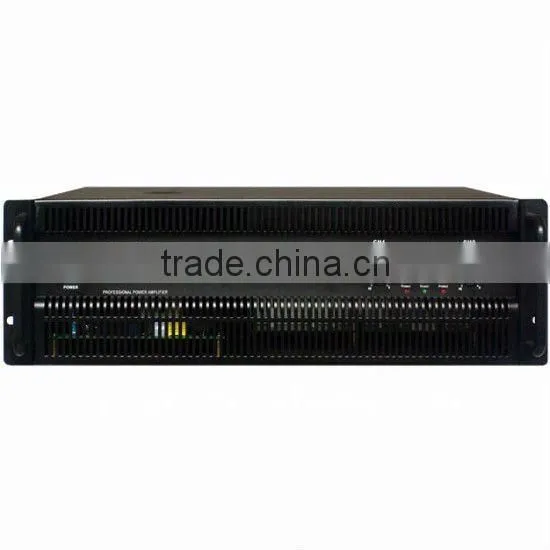

800w sound system amplifier

Model number

G12

8 ohms Stereo Power

2X800W

4 ohms Stereo Power

2X1200W

2 ohms Stereo Power

2X1600W

8 ohms Bridge Power

2400W

4 ohms Bridge Power

3200W

Distortion, SMPTE

<0.05%

Hum&Noise

-101dB

Damping Factor

> 400 @ 8Ω

Input Sensitivity

1.22V

Frequency Response

20Hz-20kHz,+0/-1 dB

Input Impedance

10kΩ Unbalanced,20kΩ Balanced

Inputs

XLR female,TRS (1/4-inch)

Outputs

binding posts and Speakon outputs

Cooling

continuously variable speed fan,rear to front airflow

Amplifier Protection

short circuit,open circuit, thermal,ultrasonic,

and RF protection,stable into reactive/mismatched loads

Power Requirement

220 Volts AC (±10%) 50-60Hz

Height

3U

Amplifier Dimensions(H*W*L)

132mmX483mmX490mm

Carton Dimension(H*W*L)

195mmX600mmX640mm

Net Weight

25kg

Gross Weight

29.4kg
