Help CenterG3200-bass Amplifier
Related Products
Specifications
bass amplifier(1) 4 ohms Stereo Power: 4X800W
(2) 2 ohms Stereo Power: 4X1100W
(3) 4-channel bass amplifier
(4) CE
---------------------------------------------------------------------------------------------------
GISEN G series four-channel power amplifiers adopt effective H type amplificatory circuit. They possess duble-face circuit board design, SMT process, fine and functional structure, and well-chosen components. Also they are more sensible for heat radiation. They have excellent protective functions: electric voltage restriction of power soft start, eletric current restriction, intelligent short-circuit protection etc, which makes you use them without worrying under any circumtance.
Applied to situations like DISCO, Hi Room, Night Club, Performance, etc.
---------------------------------------------------------------------------------------------------
BASS AMPLIFIER SPECIFICATIONS
Model: G3200
Features: Type H Amplificatory Circuit, double-face Circuit Board, SMT process. Exellent self-protection.
8 ohms Stereo Power: 4X530W
4 ohms Stereo Power: 4X800W
2 ohms Stereo Power: 4X1100W
8 ohms Bridge Power: 2X1600W
4 ohms Bridge Power: 2X2200W
Distortion, SMPTE: <0.05%
Hum&Noise: -101dB
Damping Factor: > 400 @ 8Ω
Input Sensitivity: 1.22V
Frequency Response: 20Hz-20kHz,+0/-1 dB
Input Impedance: 10kΩ Unbalanced,20kΩ Balanced Controls
Inputs: XLR female,TRS (1/4-inch)
Outputs: binding posts
Cooling: continuously variable speed fan,rear to front airflow
Amplifier Protection: short circuit,open circuit, thermal,ultrasonic,
and RF protection,stable into reactive/mismatched loads
Power Requirement: 220 Volts AC (±10%) 50-60Hz
---------------------------------------------------------------------------------------------------
Dimension & Weight:
Amplifier Dimensions(H*W*L): 132mmX483mmX490mm
Carton Dimension(H*W*L): 195mmX600mmX640mm
Net Weight: 31.5kg
Gross Weight: 35.9kg
---------------------------------------------------------------------------------------------------
More pictures:

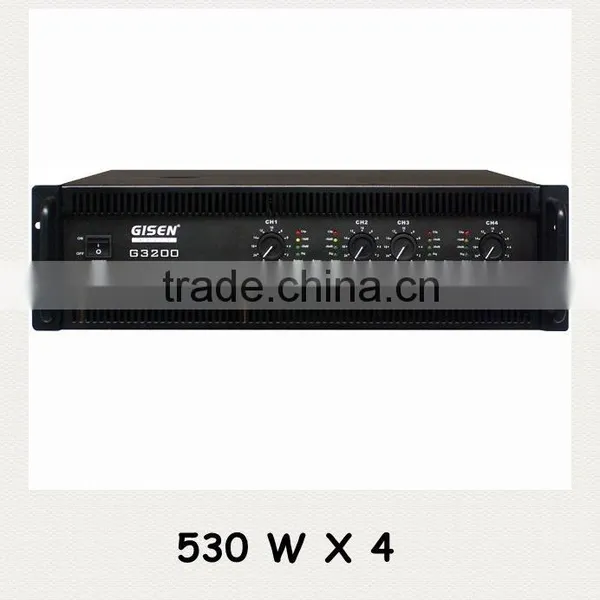

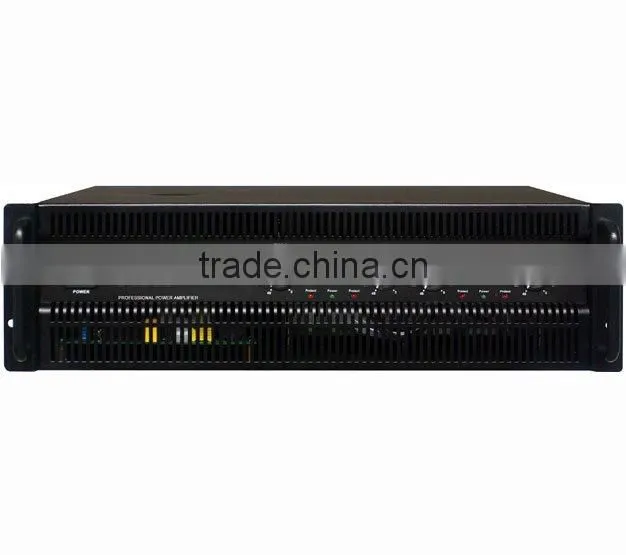

bass amplifier front view:
bass amplifier top view:

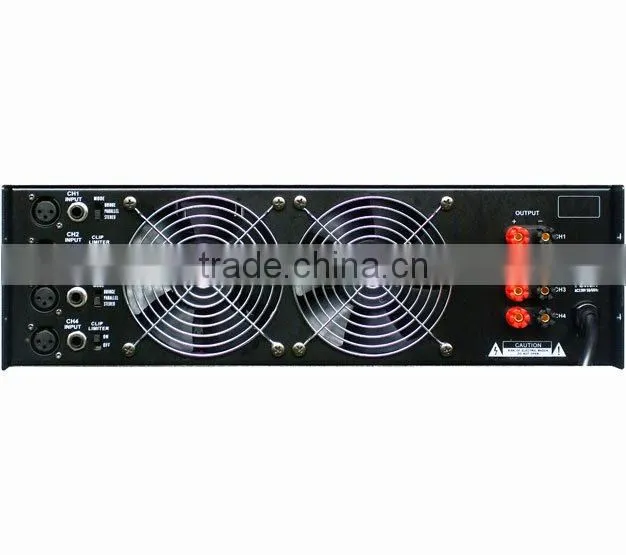

bass amplifier rear view:
