Home > Consumer Electronics > Audio & Sets > Amplifier > Integrated Amplifier (3 Channel)-G35.7

Integrated Amplifier (3 Channel)-G35.7

Integrated Amplifier (3 Channel)-G35.7 thumbnail-1
Integrated Amplifier (3 Channel)-G35.7 photo-1
US$ 1 - 999 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Gisen
Model Number:
G35.7
Type:
Professional Amplifier
Contact Supplier Request Quote Chat Now
Guangzhou Gisen Audio Equipment Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Gisen
Model Number G35.7
Type Professional Amplifier
Channels 3 (2.1)
Place of Origin Guangdong, China

Specifications

integrated amplifier
(1) 8 ohms Stereo Power: 2X350W+750W
(2) 4 ohms Stereo Power: 2X530W+1100W
(3) stable
(4) CE

INTEGRATED AMPLIFIER SPECIFICATIONS

Model                          G35.7
Features

3-channel. Type H Amplificatory Circuit, double-face Circuit Board, SMT process. Exellent self-protection.
Distortion, SMPTE <0.05%
Hum&Noise -101dB
Damping Factor > 400 @ 8Ω
Input Sensitivity 1.22V
Frequency Response 20Hz-20kHz,+0/-1 dB
Input Impedance 10kΩ Unbalanced,20kΩ Balanced Controls
Inputs  XLR
Outputs binding  posts and Speakon outputs
 Cooling continuously variable speed fan,rear to front airflow
Amplifier Protection short circuit,open circuit, thermal,ultrasonic,
and RF protection,stable into reactive/mismatched loads
Power Requirement

220 Volts AC (±10%) 50-60Hz







Dimension & Weight:

Amplifier Dimension(H*W*L): 132mmX483mmX490mm

Carton Dimension(H*W*L): 195mmX600mmX640mm

Net Weight: 27.5kg

Gross Weight: 31.9kg



More pictures:

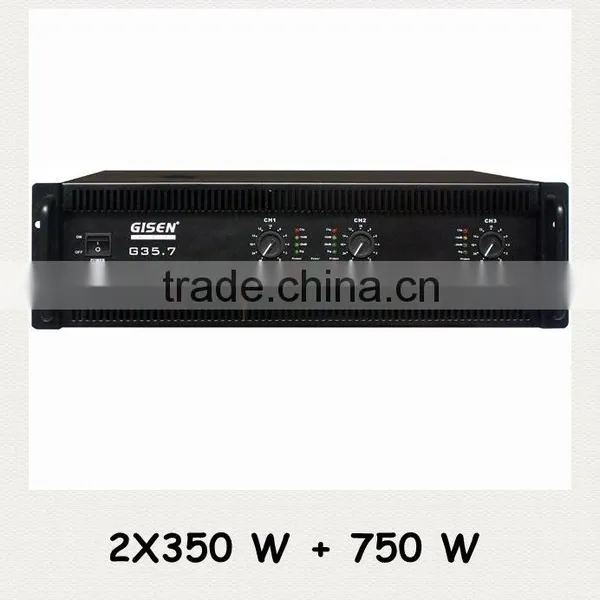

integrated amplifier front view:

integrated amplifier (3 channel)-G35.7

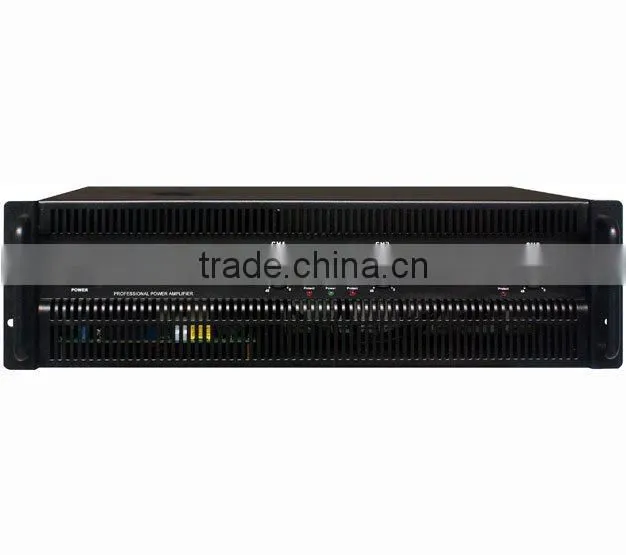

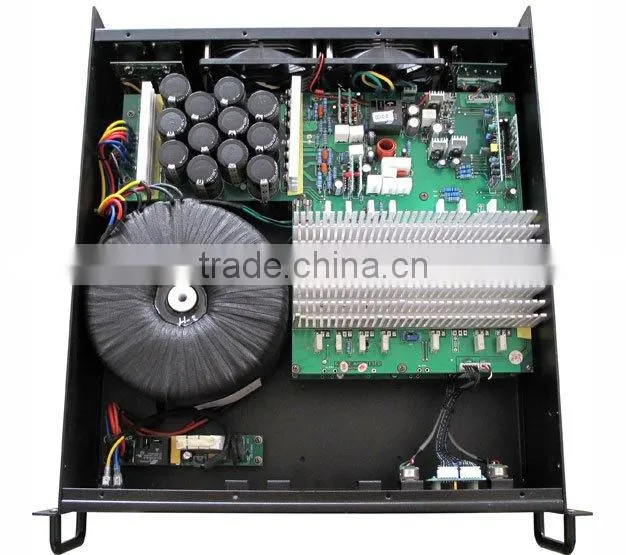

integrated amplifier top view:

 integrated amplifier (3 channel)-G35.7

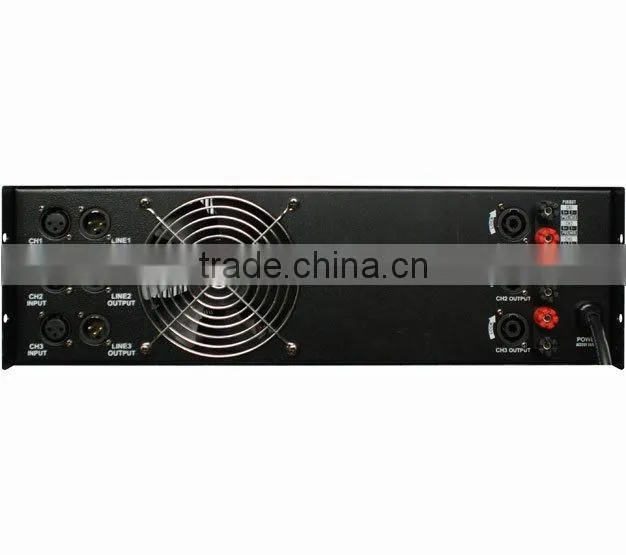

integrated amplifier rear view:

 integrated amplifier (3 channel)-G35.7
