audio pcb board wireless teachers voice amplifier

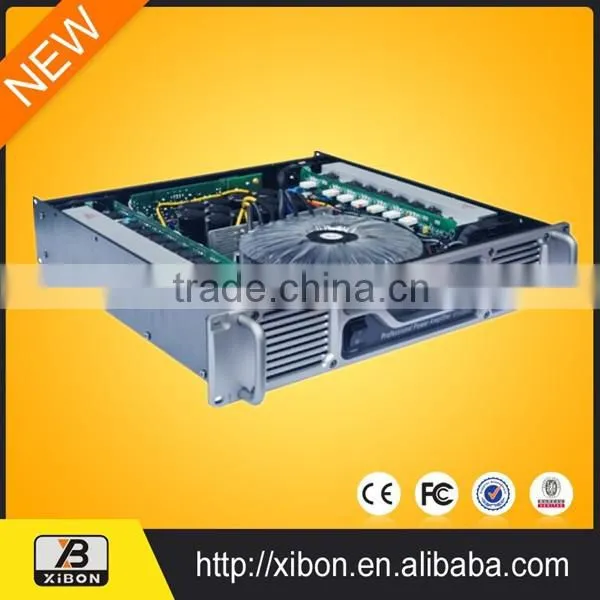

XB series power amplifier enjoys a stable and reliable circuit design, beautiful whole structure. And excellent fine cooling system provides overheating and overload protection, output DC potential protection, ON OFF striking resistant current circuit design, temperature control electrodeless high speed air cooling heat dissipation. Power amplifier adopts the classic Toshiba large power amplifier tube, military-grade large-capacity electrolytic capacitors for current reserve. Output DC voltage protection and self-locking (avoiding damage to the speaker causing by repetitive relay turning on and off under critical state of protection). Overload distortionless compress and limit (when the circuit detects an output overload, it will automatically compress the power amplifier to keep signal output never distorted). Temperature protection, power on delay and temperature control electrodeless speed regulating air cooling heat dissipation.
Application: XB series are applied to multi-functional dancing halls, KTV clubs, theaters and other occasions.
audio pcb board wireless teachers voice amplifier
Technical Parameters:
| Technical Specifications | ||||||
| Model | XB-200 | XB-300 | XB-400 | XB-500 | XB-600 | |
| Stere Power | 8Ω | 200W×2 | 300W×2 | 400W×2 | 500W×2 | 600W×2 |
| 1KHz0.1%THD | 4Ω | 300W×2 | 450W×2 | 600W×2 | 750W×2 | 800W×2 |
| 2Ω | 500W×2 | 650W×2 | 800W×2 | 1000W×2 | 1200W×2 | |
| Bridge Mono Power | 8Ω | 400W | 600W | 800W | 1000W | 1200W |
| 1KHz0.1%THD | 4Ω | 800W | 1200W | 1600W | 2100W | 2700W |
| Signal to Noice | >94dB | >94dB | >94dB | >97dB | >97dB | |
| Slew Rate | 40v/uS | 40v/uS | 40v/uS | 45v/uS | 45v/uS | |
| Damping Factor | 400:1 | 400:1 | 400:1 | 450:1 | 450:1 | |
| Frequency Response | +/-0.1dB,20Hz-20KHz | |||||
| THD | ≤0.03%Rated Power @ 8Ω 1KHz | |||||
| TMD | ≤0.03%Rated Power @ 8W | |||||
| Input Sensitivity | ±1dB(1.23V) | |||||
| Input Impedance | 10KΩ/20KΩ ohms unbalanced or balanced | |||||
| Crosstalk | ≤-75dB | |||||
| LED Indicator | Signal, Protect, Dctive, Limiting | |||||
| Protection | AC Fuse, DC, Short Circuit, Overheat, Overload, Softstart | |||||
| Height | 2U | 2U | 2U | 2U | 2U | |
| Weight | 14Kg | 16Kg | 18Kg | 23Kg | 25Kg | |
| Dimensions(mm) | 483W×430D×88H | 483W×480D×88H | ||||
wireless teachers voice amplifier
wireless teachers voice amplifier
Founded in 2003, Foshan Nanhai XIBON Audio Equipment Factory is a company specializing in research and development, manufacture of professional stage power amplifier, speakers and other audio equipment. All products have passed China's compulsory product certification CCC certificates. Based on the principle of "Quality and Integrity Come First", the company's products not only occupy a certain market share for domestic audio, but also export to more than 20 countries and regions in the global market, with high international presence.
Since the company was founded, we gather a large number of well-known experts in the research and development of audio engineering, audio technology, and process design, increasingly applying international latest technologies and design concepts to the products. The factory always adheres to the idea of sustainable development and innovation. After nearly 10 years of development and growth, the factory has modernized its own manufacturing base. We have
advanced automatic AI production equipment for manufacture, a fairly strong sales team for sales system, and perfect after-sales service for customers, winning their trust.
We believe staffs from XIBON will create a more brilliant tomorrow with a higher degree of enthusiasm and greater efforts, adhere to the "Integrity, Practicability, Innovation, Win-win" business philosophy.
Business Process:
Inquiry ----> Drawing ----> Mould Confirmation ----> Sample Confirmation ----> Placing Order ----> Delivery
Testprogram:
3 steps test program to guarantee the quality of the product Strictly:
Inspection of raw materials+Production testing+Finished product Testing
Terms & Conditions of Trade:
1) Money Transfer; PayPal; Money Gram; Bank Transfer; Escrow; Way of payment T/T or Western Union.
2) Order's payment: T/T 30% deposit, T/T balance before delivery
3) Delivery Time: 15 to 30 days after sample confirmed & down payment.
Professional Audio Peripheral Equipment / Professional Speaker / Professional Active Speaker
(1). OEM
(2). Customize design;
(3). Top perfomance power amplifier;
(4). Mature export market all over the world
(5). Excellent performance, good quality and competitive price
(6). High efficiency toroidal transformer power supply, large high-energy linear power supply device.
(7). HI-FI machine grade material used and the topic level components, carefully selected production.
Sound structured, clear air, clean, solid driving bass speakers.
Package
5steps of packaging process, protected products from being damaged in the long distance transport:
Transparent film+ Color box+ Thick carton+ Environmental Woven bag+ Packing belt
