Home > Products > Metal Machine tools > NEW,CE,ISO Horizontal Lathe, Gap Bed Lathe, CS series ,CS6150

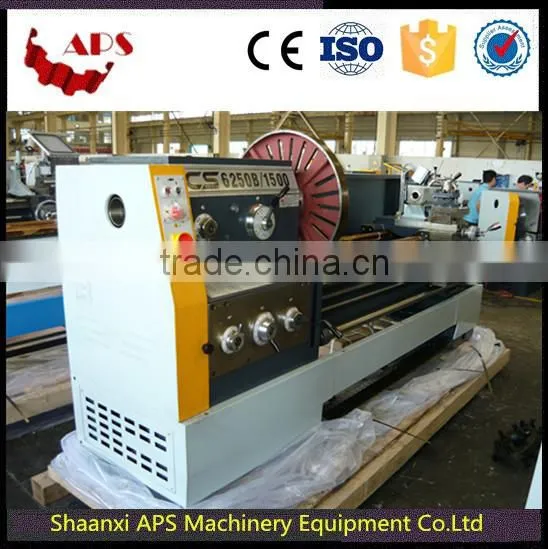

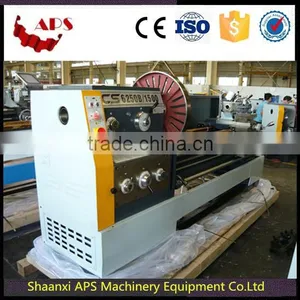

NEW,CE,ISO Horizontal Lathe, Gap Bed Lathe, CS series ,CS6150
- 300 Set / Sets per Month
- shanghai
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Automatic Grade: | Semi-Automatic | Max. Swing Diameter: | 500mm | Place of Origin: | Shaanxi, China |
Brand Name: | APS | Model Number: | Gap Bed Lathe CS BSeries | Voltage: | 110/220/380/400 V/3P |
Weight: | 3750 | Certification: | ISO,CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Gap Bed Lathe C BSeries
Specification:
SPECIFICATIONS | CS6140 CS6240 | CS6150B CS6250B | CS6166B CS6266B | |
Capacity | Swing over bed | 400mm | 500mm | 660mm |
Swing over cross slide | 220mm | 300mm | 420mm | |
Swing in gap(Gap-bed Lathe ) | 630mm | 710mm ( Gap-bed Lathe ) | 830mm ( Gap-bed Lathe ) | |
Length in gap | 240mm (Gap-bed Lathe ) | 240mm ( Gap-bed Lathe ) | 240mm ( Gap-bed Lathe) | |
Max. length of workpieces | 1000/1500/2000/3000mm | |||
Wide of guideway | 390mm | 390mm | 390mm | |
Head Stock | Spindle nose | ISO702/I | ISO702/II NO.8 Camlock | ISO702/II NO.8 Camlock |
Spindle bore | φ52mm | φ82mm | φ82mm | |
Taper of spindle bore | MT6 | φ90mm,1:20 | φ90mm,1:20 | |
Range of spindle speeds | 9-1600rpm, 24steps | 9-1600rpm,24steps | 9-1600rpm, 24steps | |
Max. output of spindle torque | 1500N.m | 1500N.m | 1500N.m | |
Feeds and Threads | Max. travel of compound rest | 145mm | 145mm | 145mm |
Max. travel of cross slide | 320mm | 320mm | 310mm | |
Leadscrew pitch | 12mm or 2TPI | 12mm | 12mm or 2TPI | |
Section of tool | 25x25mm(1x1") | 25x25mm | 25x25mm(1x1") | |
Longitudinal quick moving speed | 4.5mm(15ft)/Min,50Hz; 5.4mm(18ft)/Min,60Hz | 4..5mm/Min | 4.5mm(15ft)/Min,50Hz;5.4mm (18ft)/Min,60Hz | |
Crosswise quick moving speed | 1.9mm(6.37ft)/Min,50Hz; 2.3mm(7.67ft)/Min,60Hz | 1..9mm/Min | 1.9mm(6.37ft)/Min,50Hz; 2.3mm(7.67ft)/Min,60Hz | |
Longitudinal feeds range | 93kinds,0.028-6.43mm/rev | 93kinds,0.028-6.3mm/rev | 93kinds,0.028-6.43mm/rev | |
Cross feeds range | 93kinds,0.012-2.37mm/rev | 93kinds,0.012-2.7mm/rev | 93kinds,0.012-2.37mm/rev | |
Metric threads range | 48kinds,0.5--224mm | 48kinds,0.5-224mm | 48kinds,0.5--224mm | |
Inch threads range | 48kinds,72--1/8TPI | 48kinds,72-1/8TPI | 48kinds,72--1/8TPI | |
Module threads range | 42kinds,0.5--112mm | 42kinds,0.5-112mm | 42kinds,0.5--112mm | |
Diametrical threads range | 45kinds,56--1/4DP | 45kinds,56-1/4DP | 45kinds,56--1/4DP | |
Tail Stock | Dia. of tailkstock sleeve | φ75mm | φ75mm | φ75mm |
Morse taper of tailstock sleeve | MT5 | MT5 | MT5 | |
Travel of tailstock sleeve | 150mm | 150mm | 150mm | |
Cross adjustment | ±15mm | ±15mm | ±15mm | |
Moror | Power of main motor | 7.5KW(10HP),3PH,1450rpm/50Hz; 1750rpm/60Hz | 7.5KW(10HP),1450rpm | 7.5KW(10HP),3PH,1450rpm/ 50Hz; 1750rpm/60Hz |
Power of quick-travel motor | 250W(1/3HP),3PH | 250W(1/3HP),3PH | 250W(1/3HP),3PH | |
Power coolant pump | 120W(1/6HP),3PH | 120W(1/6HP),3PH | 120W(1/6HP),3PH | |
Available voltage/ cycle | 220V,380V,420V/50Hz,60Hz | |||
Overall dimension (LxWxH) cm | 268/313/363/463x100x127 | 268/313/363/463x100x134 | 268/313/363/463x100x127 | |
Packing size (LxWxH) cm | 280/330/380/480x115x188 | 280/330/380/480x115x188 | 280/330/380/480x115x188 | |
Net weight | 2275/2475/2675/3200kg | 2375/2575/2775/3300kg | 2400/2600/2800/3200kg | |
Gross weight | 2475/2675/3200/3750kg | 2575/2775/3200/3750kg | 2800/3100/3300/3700kg |
