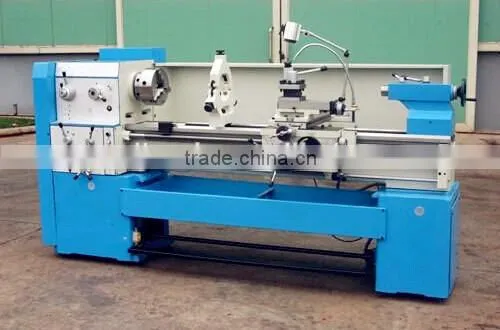

High Speed Precision Lathe CD6140C ,spindle Bore80mm

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Shaanxi APS Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Semi-Automatic

Max. Swing Diameter 400,500,600mm

Brand Name APS

Model Number CD6240c

Voltage 380/220V

Power(W) 4000

Weight 2210

Certification ISO

After-sales Service Provided Engineers available to service machinery overseas

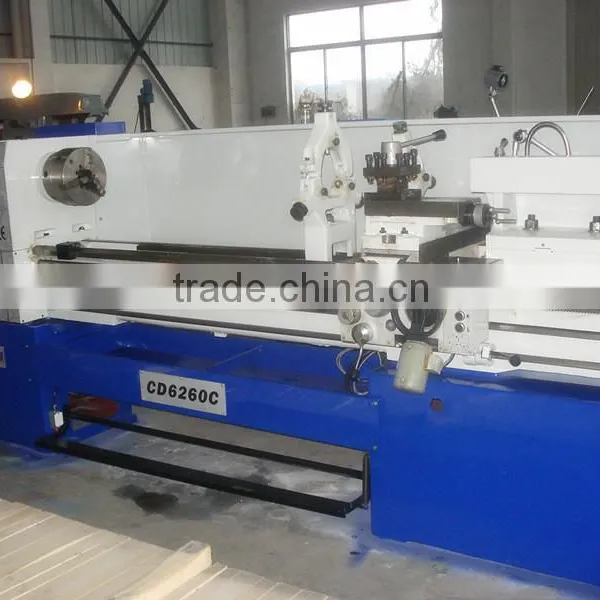

High Speed Precision Lathe CD6240C,CD6250C,CD6260C

Model		CD6140C CD6240C	CD6145C CD6245C	CD6150C CD6250C	CD6160C CD6260C
Max. swing over bed		400mm	450mm	500mm	600mm
Max. swing over cross slide		225mm	285mm	325mm	360mm
Center distance		1000,1500, 2000mm
Max.swing over gap		550mm	580mm	630mm	730mm
Effective length of gap		260mm
Bed width		330mm
Spindle hole		80mm
Spindle nose		ISO-C8 or ISO-D8
Spindle taper		Metric 85mm
Spindle speeds(Number)		24-1600rpm (15 Steps)
Metric threads range (Kinds)		0.5-28MM(66 Kinds)
Inch threads range (Kinds)		1-56inch(66 Kinds)
Module threads range (Kinds)		0.5-3.5mm (33 Kinds)
Diametral threads range (Kinds)		8-56D.P (33 Kinds)
longitudinal feeds range (Kinds)		0.072-4.038mm/rev(0.0027-0.15inch/rev)(66kinds)
Cross feeds range (Kinds)		0.036-2.019mm/rev(0.0013-0.075inch/rev)(66kinds)
Rapid traveling speed of carriage		5m/min(16.4ft/min)
Leadscrew size: Diameter /Pitch		35mm/6mmor35mm/1/4"
Cross slide travel		300mm
Compound rest travel		130mm
Cross-section size of toolshank		25x25mm
Taper of tailstock sleeve		Morse NO.5
Diameter of tailstock sleeve		65mm
Travel of tailstock sleeve		120mm
Main drive motor		4.0 or 5.5 or 7.5kw		7.5kw
Coolantpumpmotor		0.125kw
Rapid traverse moter		0.12kw
Packing size (LxWxH)	1000mm	2420x1150x1800mm
	1500mm	2920x1150x1800mm
	2000mm	3460x1150x1800mm
Net weight /Gross weight(kgs)	1000mm	1640/2290	1680/2330	1700/2350	1800/2500
	1500mm	1850/2500	1890/2590	1910/2610	2010/2760
	2000mm	2090/2860	2130/2880	2150/2920	2250/3070
