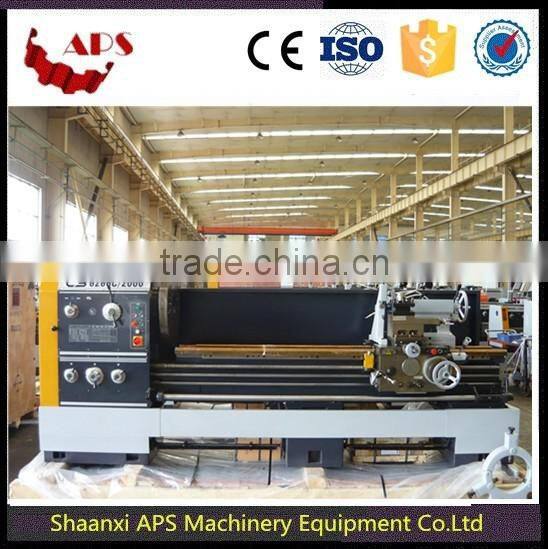

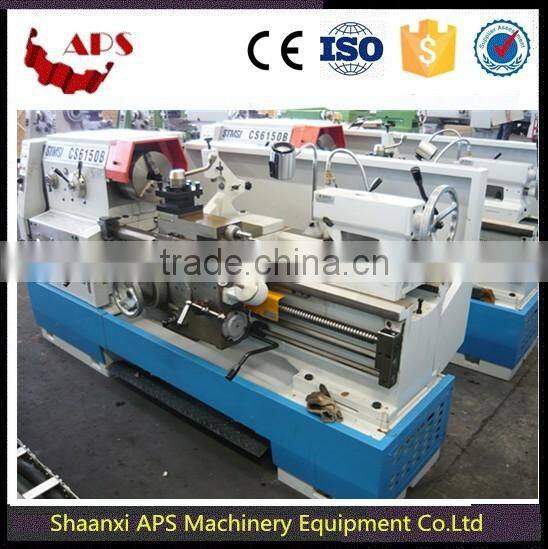

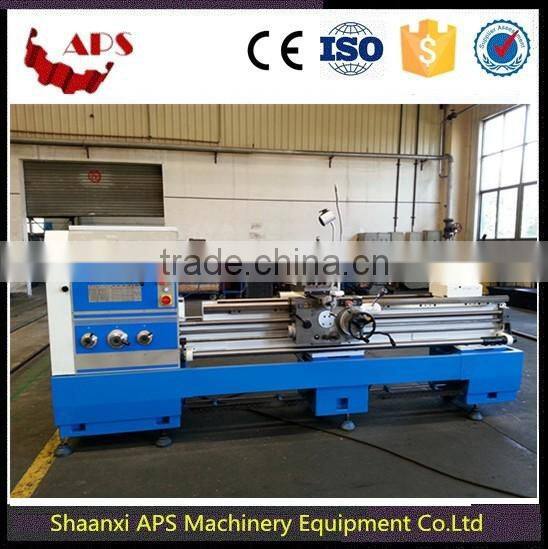

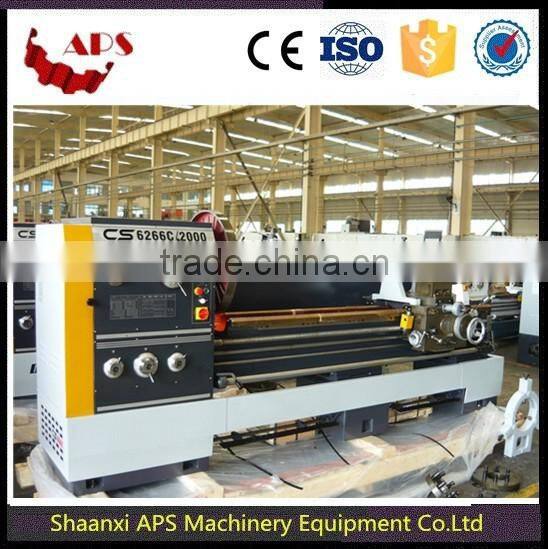

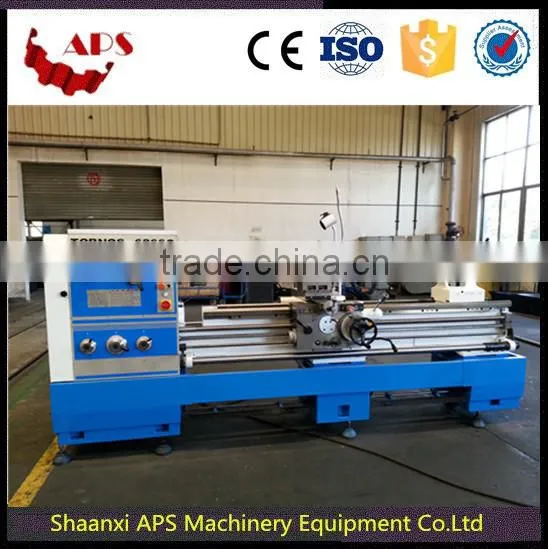

NEW,CE,ISO Horizontal lathe ,Gap Bed Lathe ,CS CSeries CS6150C CS6250C,CS6266,CS6280

Name: NEW,CE,ISO Horizontal lathe ,Gap Bed Lathe ,CS CSeries CS6150C CS6250C,CS6266,CS6280
Brand: APS
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port shanghai
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Horizontal	CNC or Not:	Normal
Automatic Grade:	Semi-Automatic	Max. Swing Diameter:	660mm	Place of Origin:	Shaanxi, China
Brand Name:	APS	Model Number:	Gap Bed Lathe CS CSeries	Voltage:	220/380/400/415V
Certification:	ISO,CE	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Gap Bed Lathe CS CSeries

Specification:

SPECIFICATIONS		CS6150C CS6250C	CS6166C CS6266C	CQ6180C CQ6280C
Capacity	Swing over bed	500mm	660mm	800mm
	Swing over cross slide	300mm	420mm	560mm
	Max. turning diameter	300mm	400mm	540mm
	Swing in gap	710mm	830mm	1000mm
	Length in gap	240mm	240mm	240mm
	Max. length of workpieces	1000/1500/2000/3000mm		2000/3000mm
	Wide of guideway	390mm	390mm	390mm
Head Stock	Spindle nose	ISO702/II NO.8 Camlock
	Spindle bore	φ105mm	φ105mm	φ105mm
	Taper of spindle bore	φ113mm,1:20	φ113mm,1:20	φ113mm,1:20
	Range of spindle speeds	36-1600rpm, 12steps	36-1600rpm, 12steps	36-1400rpm, 12steps
	Max. output of spindle torque	1200N.m	1200N.m	1200N.m
Feeds and Threads	Max. travel of compound rest	145mm	145mm	145mm
	Max. travel of cross slide	320mm	310mm	320mm
	Leadscrew pitch	12mm	12mm or 2TPI	12mm or 2TPI
	Section of tool	25x25mm	25x25mm	25x25mm
	Longitudinal quick moving speed	4..5mm/Min	4.5mm(15ft)/Min,50Hz;5.4mm (18ft)/Min,60Hz
	Crosswise quick moving speed	1..9mm/Min	1.9mm(6.37ft)/Min,50Hz; 2.3mm(7.67ft)/Min,60Hz
	Longitudinal feeds range	65kinds,0.063-2.52mm/rev
	Cross feeds range	65kinds,0.027-1.07mm/rev
	Metric threads range	22kinds, 1-14mm	22kinds, 1--14mm	22kinds, 1--14mm
	Inch threads range	25kinds, 28-2TPI	25kinds, 28--2TPI	25kinds, 28--2TPI
	Module threads range	18kinds, 0.5-7mm	18kinds, 0.5-7mm	18kinds, 0.5-7mm
	Diametrical threads range	24kinds, 56-4DP	24kinds, 56--4DP	24kinds, 56--4DP
Tail Stock	Dia. of tailkstock sleeve	φ75mm	φ75mm	φ75mm
	Morse taper of tailstock sleeve	MT5	MT5	MT5
	Travel of tailstock sleeve	150mm	150mm	150mm
	Cross adjustment	±15mm	±15mm	±15mm
Moror	Power of main motor	7.5KW(10HP),3PH,1450rpm/50Hz; 1750rpm/60Hz
	Power of quick-travel motor	250W(1/3HP),3PH	250W(1/3HP),3PH	370w
	Power coolant pump	120W(1/6HP),3PH
	Available voltage/ cycle	380V/50Hz/3Ph)	220V,380V,420V/50Hz,60Hz
Overall dimension (LxWxH) cm		268/313/363/463x100x134	268/313/363/463x100x127	356/456x134x149
Packing size (LxWxH) cm		280/330/380/480x115x188	280/330/380/480x115x188	380/480x130x188
Net weight kg		2100/2300/2500/2900	2200/2400/2600/3000	3000/3200
