Sanitary 316 Stainless Steel Gas Air Steam Multi Cartridge Filter Housing

FOB Price

USD $220 - $250 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Shanghai or Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	HuFeng Steam Filter Housing
Model Number	HF20006		After-sales Service Provided	No overseas service provided

Product Description

Filter Housing Info

1. Materials of Sanitary 316 Stainless Steel Gas Air Steam Multi Cartridge Filter Housing: 304, 316L

2. Application of Sanitary 316 Stainless Steel Gas Air Steam Multi Cartridge Filter Housing: food, beverage, Biopharmaceutical, oil industry, electronic industry, chemical industry.

Advantage of our Steam Filter Housing HF20006:

● High level of polish, 0.3~0.4μm, absolutely hygienic requests;

● Filter cartridge connection adopts 226 double seal clamp type to ensure the sealing effect.

● PTFE aseptic filter cartridge can be used in sterile gas and fermentation gas filtration;

● Glass fiber filter cartridge can be used in high purity gas filtration;

●Stainless steel filter cartridge can be used in high temperature air filtration;

Product Name	Sanitary 316 Stainless Steel Single Filter Cartridge Housing
Material	Stainless Steel 316L for shell, 304 for eyebolt and ajustable stand.
Surface	Mirror Polish, Sand Blasting, Electrolytic Polish, Pickling
Inspection	D-Grade Pressure Vessel Standard, X-ray Flaw Detection
Disinfection	Online or steam sterilization: 121℃/30min
Brand	Hufeng Steam Filter Housing
Application	Biopharmaceutical Industry, Food and Beverage Industry, Sanitary Request
Customer Design	Available

Filter Housing Parameters	1pc Filter Cartridge Length
Filter Housing Parameters	10 inches	20 inches	30 inches	40 inches
Total Height	550mm	800mm	1050mm	1300mm
Distance from inlet to center	75mm
Shell Diameter	101.6mm
In-outlet size	1 inch
	3pcs Filter Cartridge Length
	10 inches	20 inches	30 inches	40 inches
Total Height	696mm	946mm	1196mm	1446mm
Distance from inlet to center	140mm
Diameter	200mm
In-outlet size	3 inches
	5pcs Filter Cartridge Length
	10 inches	20 inches	30 inches	40 inches
Total Height	728mm	978mm	1228mm	1478mm
Distance from inlet to center	140mm
Shell Diameter	219mm
In-outlet size	3 inches
	9pcs Filter Cartridge Length
	10 inches	20 inches	30 inches	40 inches
Total Height	835mm	1085mm	1335mm	1585mm
Distance from inlet to center	197.5mm
Shell Diameter	219mm
In-outlet size	4 inches
	12pcs Filter Cartridge Length
	20 inches		30 inches	40 inches
Total Height	1325mm		1575mm	1825mm
Distance from inlet to center	380mm(flange)
Shell Diameter	350mm
In-outlet size	DN150(Flange)
Above data is standard, it can be customized by clients requirements.

Qty of Cartridge	Model of Cartridge	Cartridge Connection	Shell Material	In-outlet Connection	O-ring
1P	30	S	6	C	E
1P=1pc	10=10 inches	S=226	6=316L	C=clamp	E=EPDM
	20=20 inches	T=222	4=304		P=PTFE
	30=30 inches				V=Viton
	40=40 inches				S=Silicone

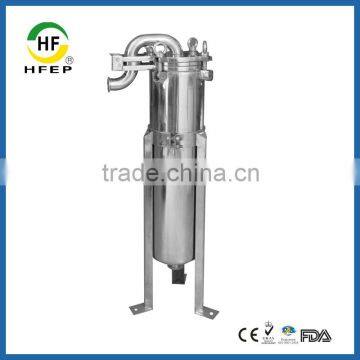

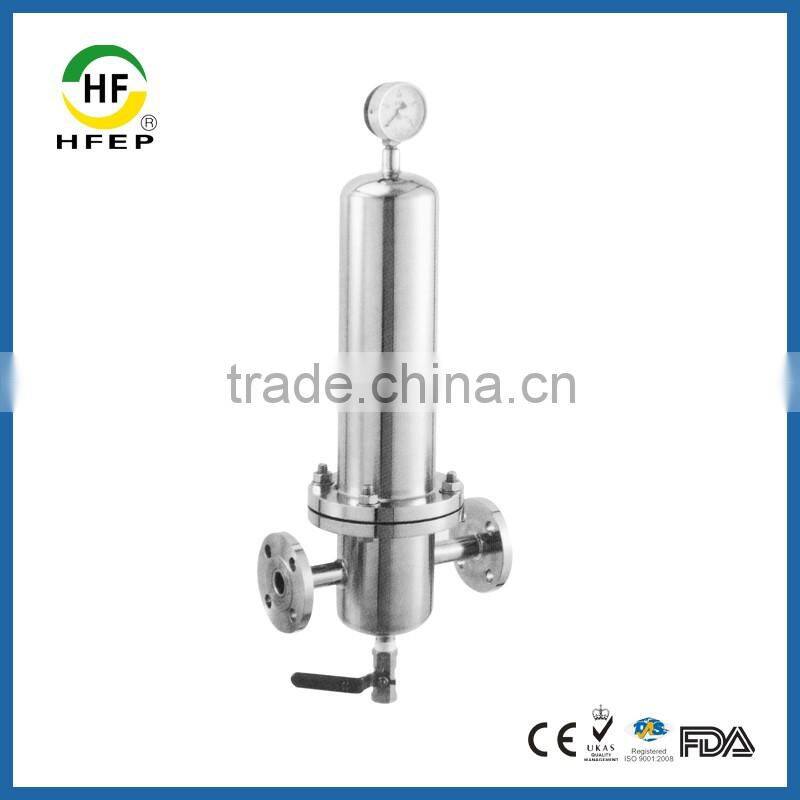

Filter Housing Show

Our Service

Our Company

Warehouse

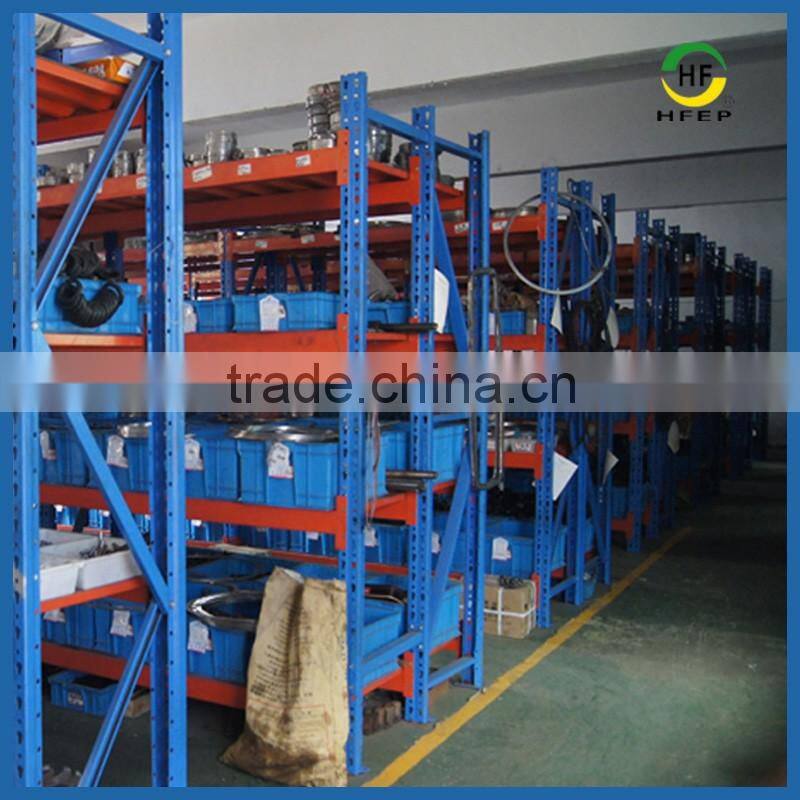

Our Warehouse

Exhibition

Our Team

Packing & Delivery

Packing Details : one bubble bag for a set of Side Entry Single Bag Cartridge Filter Housing, Carton or Plywood Case as external Package according to clients' requests.

Delivery Details : 7-30 days after we confirm deposits of the order.

1. Heat Shrink Film Package

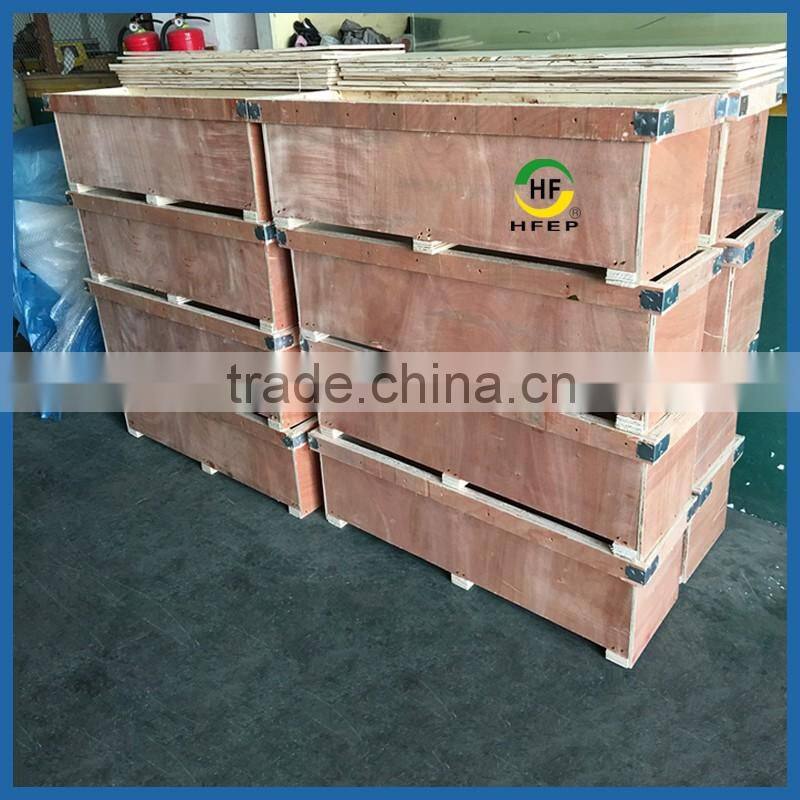

2. Air Bubble Film Bag Inside, Strong Wooden Case Outside

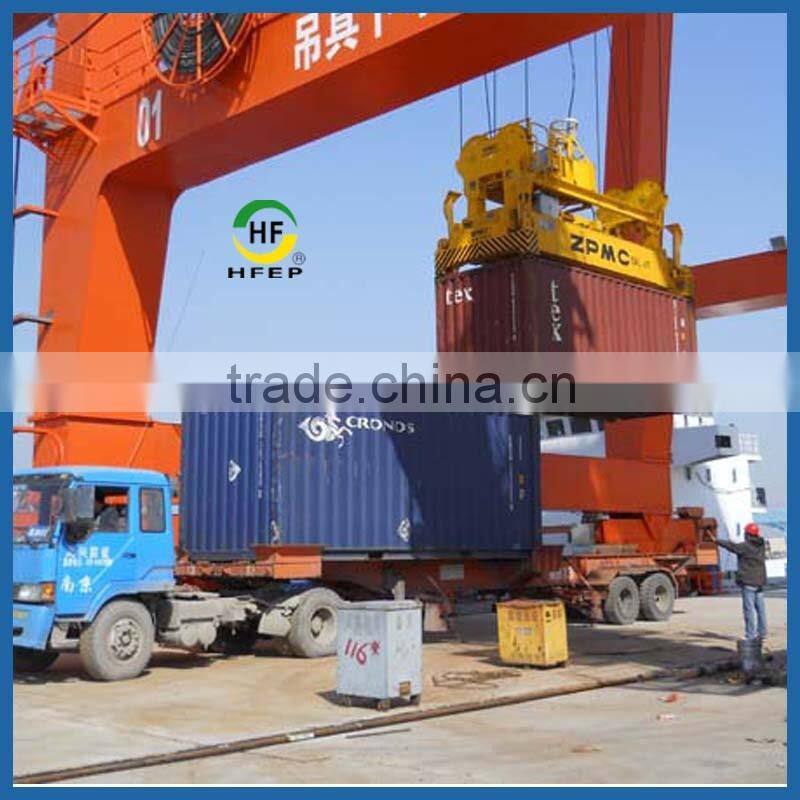

3. Loading

4. Ready to delivery

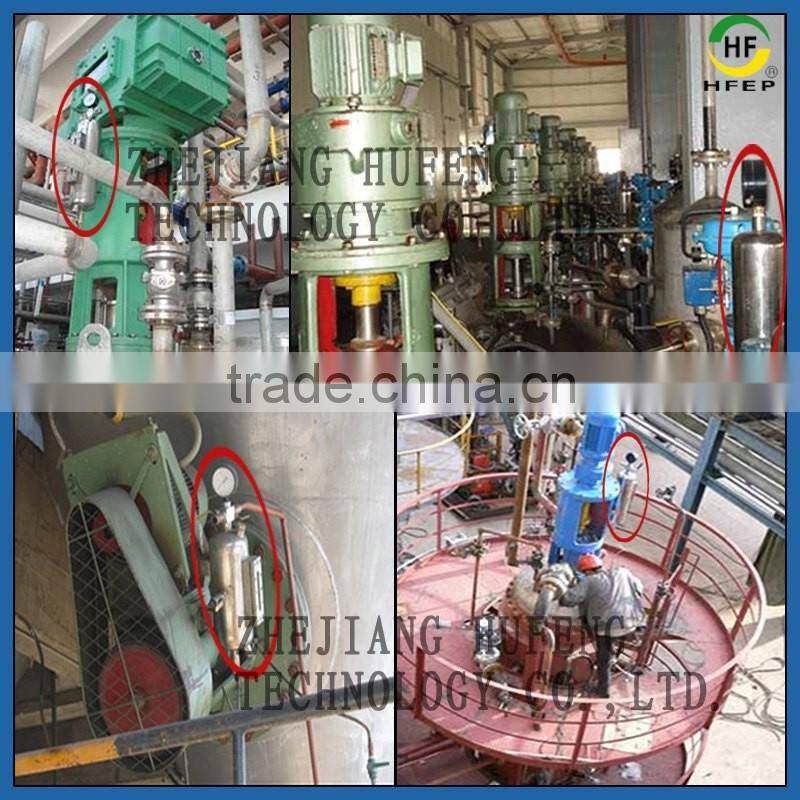

5. Application

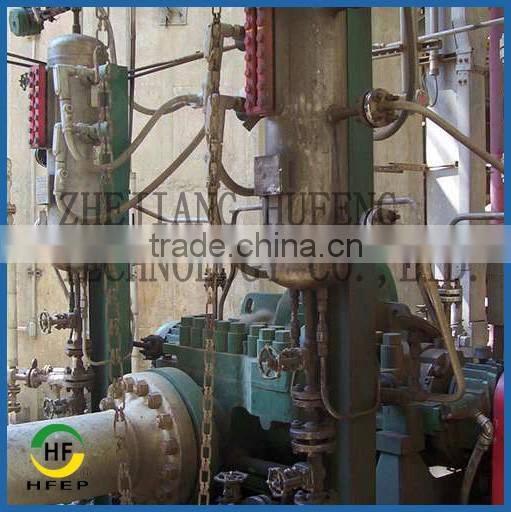

6. Demanding Operating Conditions

Our Certifications

The expertise to solve your problems

We develop solutions for our customers that enhance system availability, reduce downtime, minimize costs and increase reliability. Our experienced scientists, design engineers and technicians apply their in-depth expertise to provide the products and services that meet your needs. We run trials and investigations at more than 10 test stations in our state-of-the-art R&D facilities, working very closely with our customers, suppliers and external research institutions.

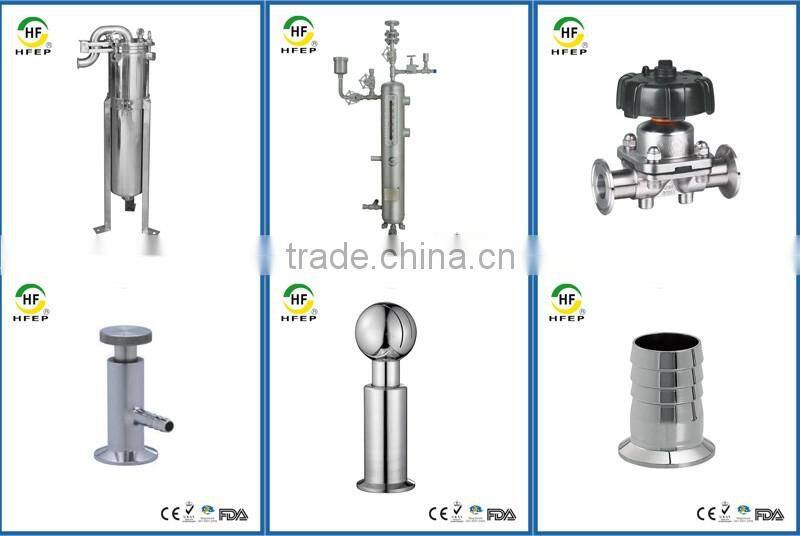

Our Main Products

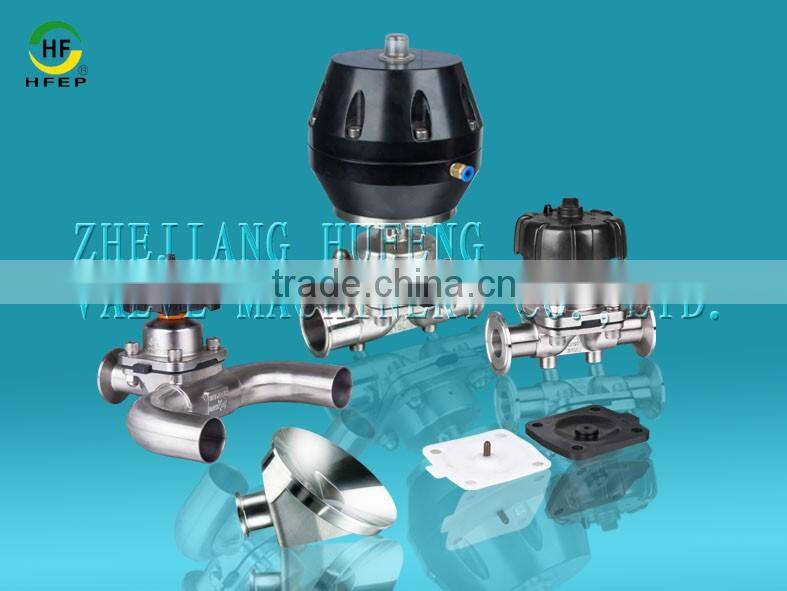

Sanitary Diaphragm Valve

Best stainless steel wing nut anchor bolt for construction fastener bags+cartons+pallets according to customer ' s requirement,Best stainless steel wing nut anchor bolt for construction fastener bags+cartons.

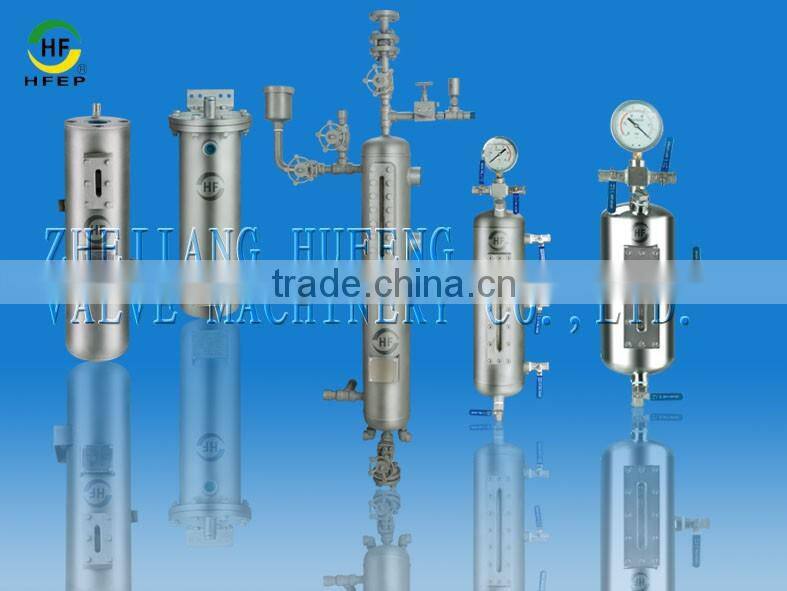

Pressure Vessels as Seal Pot

Welcome to HuFeng Mechanical Technology, your quality provider of seal support systems, reservoirs, heat exchangers and fluid systems.

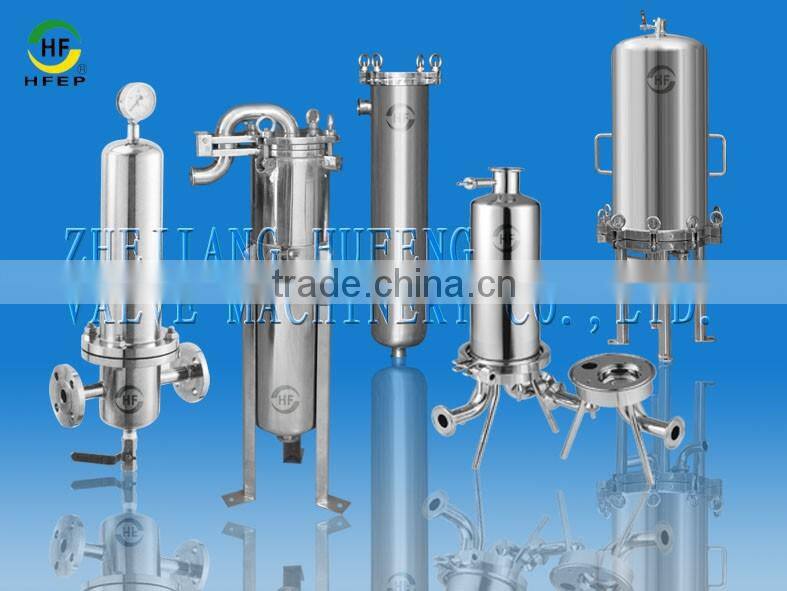

Filter Housing

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Q: Do you provide samples ? is it free or extra ?

A: Regarding to valve and related accessories, we could offer the sample for free charge but do not pay the cost of freight. For mechanical seal TS6000 reservoir, you have to pay its cost.
