Home > Products > Stainless Steel Filter Housing > HF20009 DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer

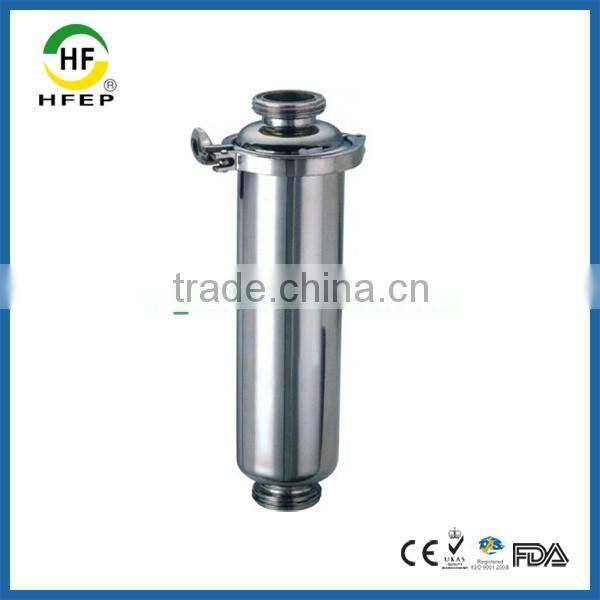

HF20009 DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer

FOB Price

USD $29.5 - $31 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Shanghai or Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	HuFeng Filter Housing
Model Number	HF20009		After-sales Service Provided	No overseas service provided

Product Description

Filter Housing Info

1. Materials of DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer: 304, 316L

2. Application of DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer: food, beverage, Biopharmaceutical, oil industry, electronic industry, chemical industry.

Advantage of DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer:

● High level of polish reach 0.6μm, close to hygienic requests;

● Developped tube to remove solid particles of the fluid as prefiltration, meanwhile protect equipments as pump, compressor and others.

● Quick connection, easy to handle, economical.

Product Name	DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer
Material	Stainless Steel 316L for shell, 304 for eyebolt and ajustable stand.
Surface	Mirror Polish, Sand Blasting, Electrolytic Polish, Pickling
Disinfection	Online or steam sterilization: 121℃/30min
Brand	Hufeng Tube Filter Housing
Application	Food and Beverage Industry, Sanitary Request, Protect Pump and other Equipments
Customer Design	Available

Filter Housing Parameters	one cartridge: 5 inches screen filter
	In-outlet 2 inches	In-outlet 2.5 inches	In-outlet 3 inches
Total Height	621 or 833mm (excluding cover and pressure gauge)
Distance from inlet to center	89mm	108mm	127mm
Shell Diameter	129mm
Height from inlet to filter cover	100mm
	one cartridge: 4 inches screen filter
	In-outlet 2 inches	In-outlet 2.5 inches
Total Height	621 or 833mm (excluding cover and pressure gauge)
Distance from inlet to center	89mm	108mm
Shell Diameter	129mm
Height from inlet to filter cover	100mm
Above data is standard, it can be customized by clients requirements.

Filter Housing Show

Team Work

Chairman

Mr Shao still believes quality is the best way to win clients in this fierce business competition.

Teamwork

We work together and dream of better future together.

R&D

Professional engineer always solve all kinds of special requests from customers.

Company Overview

Factory

Workshop

Warehouse

Exhibition

Packing & Delivery

Packing Details : one bubble bag for a set of DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer, Carton or Plywood Case as external Package according to clients' requests.

Delivery Details : 7-30 days after we confirm deposits of the order.

1. bubble film bag for DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer

2. Plywood case for DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer

3. Loading DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer

4. Ready to delivery DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer

5. Warehouse of DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer

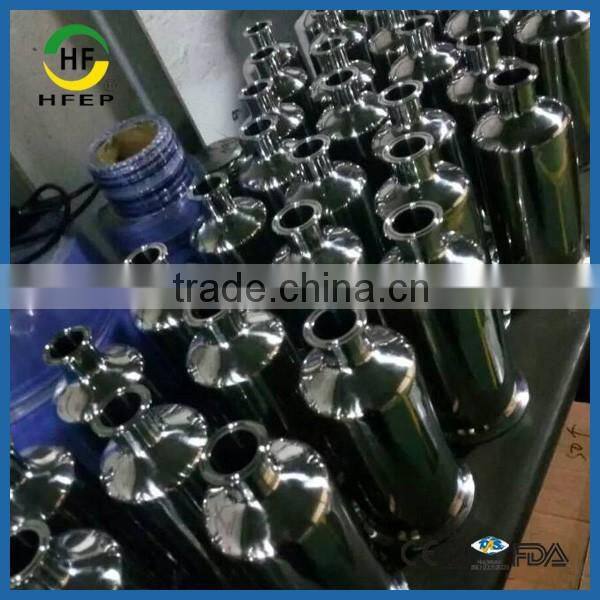

6. Workshop of DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer

Certifications

Main Products

Sanitary Diaphragm Valve

High quality as DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer

Pressure Vessels as Seal Pot

Welcome to HuFeng Mechanical Technology, your quality provider of seal support systems, reservoirs, heat exchangers and fluid systems.

Filter Housing

DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer

FAQ

Q: Are you trading company or manufacturer of DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer?

A: We are factory.

Q: How long is your delivery time for DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment of DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Q: Do you provide samples of DN50 2 Inch Sanitary Stainless Steel Cartridge Fluid Filter Strainer? is it free or extra ?

A: Regarding to valve and related accessories, we could offer the sample for free charge but do not pay the cost of freight. For mechanical seal TS6000 reservoir, you have to pay its cost.
