316 Stainless Steel Multi Cartridge Security Industrial Water Filter Housing

FOB Price

US$ 300 - 500 / Set

1 Set(Min. Order)

Port Shanghai or Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	HuFeng Water Filter Housing
Model Number	HF20007		After-sales Service Provided	No overseas service provided

Product Description

Filter Housing Info

1. Materials of Multi Cartridge Security Industrial Water Filter Housing: 304, 316L

2. Application of Multi Cartridge Security Industrial Water Filter Housing: food, beverage, Biopharmaceutical, oil industry, electronic industry, chemical industry.

Advantage of our Filter Housing HF20003:

● High level of polish, 0.3~0.4μm, absolutely hygienic requests;

● Strong clamp connection, highest operation pressure up to 1.0Mpa;

● Special vent valve and drain valve, thread sleeve is seperated with tower joint, so the connection hose wouldn't rotate during pressure release and fluid discharge;

● Reinforced screw on the leg of filter housing, hard to slide, more durable; there can install adjustable screws on the bottom of the legs, it's convenient to use by adjust height.

Product Name	Multi Cartridge Security Industrial Water Filter Housing
Material	Stainless Steel 316L for shell, 304 for eyebolt and ajustable stand.
Surface	Mirror Polish, Sand Blasting, Electrolytic Polish, Pickling
Inspection	D-Grade Pressure Vessel Standard, X-ray Flaw Detection
Cartridge Connection	DOE, 222
Brand	Hufeng Filter Housing
Application	Water finish, R.O reverse osmosis filtration for drinking water, Food and Beverage Industry, Sanitary Request
Customer Design	Available

Filter Housing Parameters	(4pcs) 5pcs
	10 inches	20 inches	30 inches	40 inches
Total Height	320mm	570mm	820mm	1070mm
Distance from inlet to center	175mm(Flange), 125mm(Clamp), 130mm(Thread)
Shell Diameter	204mm
Height from in-outlet to ground	178mm
Height from drain to ground	76mm
In-outlet size	2 inch
	7 pcs
	20 inches		30 inches	40 inches
Total Height	820		1070	1320
Distance from inlet to center	190mm(Flange), 140mm(Clamp), 145mm(Thread)
Diameter	235mm
Height from in-outlet to ground	178mm
Height from drain to ground	76mm
In-outlet size	2 inch
Above data is standard, it can be customized by clients requirements.

Qty of Cartridge	Model of Cartridge	Cartridge Connection	Shell Material	In-outlet Connection	O-ring
1P	30	S	6	C	E
1P=1pc	10=10 inches	S=226	6=316L	C=clamp	E=EPDM
	20=20 inches	T=222	4=304		P=PTFE
	30=30 inches	D=DOE			V=Viton
	40=40 inches				S=Silicone

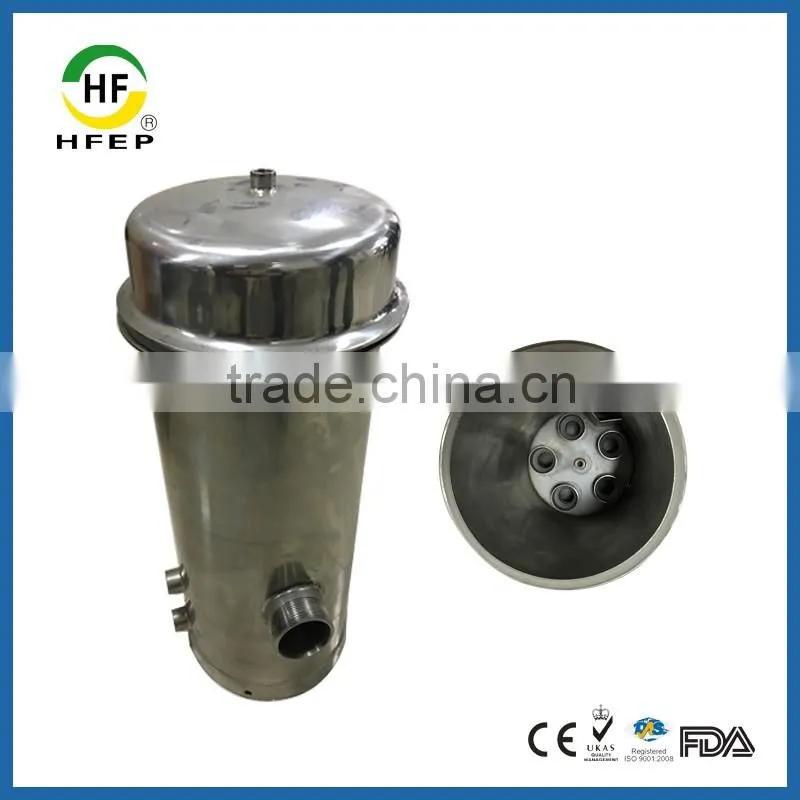

Filter Housing Show

Our Service

Chairman

Mr Shao still believes quality is the best way to win clients in this fierce business competition.

Teamwork

We work together and dream of better future together.

R&D

Professional engineer always solve all kinds of special requests from customers.

Our Company

Factory

Our Factory

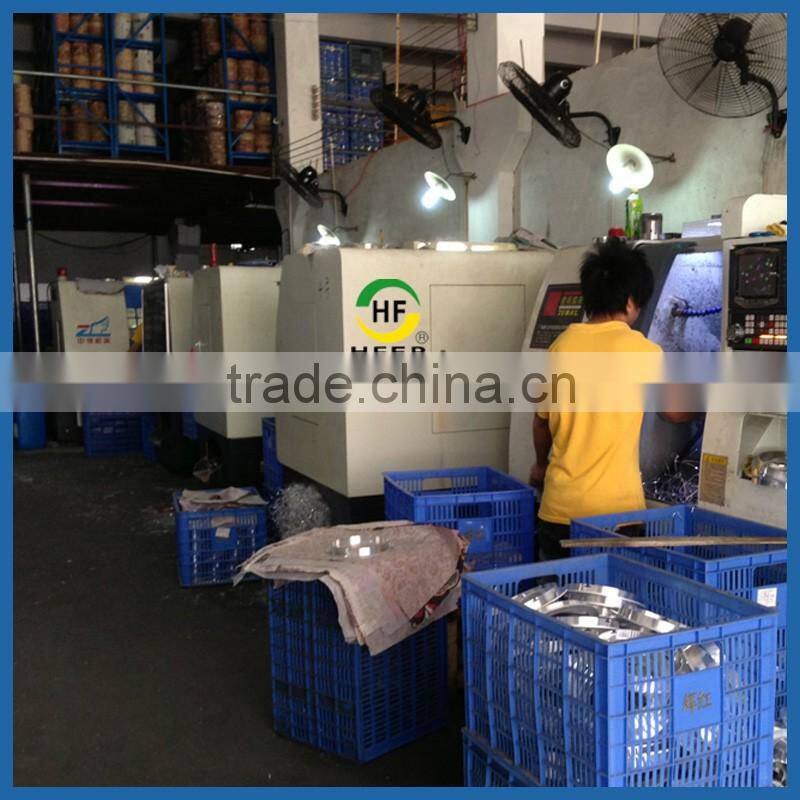

Workshop

Our Workshop

Warehouse

Our Warehouse

Exhibition

Our Team

Packing & Delivery

Packing Details : one bubble bag for a set of Side Entry Single Bag Cartridge Filter Housing, Carton or Plywood Case as external Package according to clients' requests.

Delivery Details : 7-30 days after we confirm deposits of the order.

1. Heat Shrink Film Package

2. Air Bubble Film Bag Inside, Strong Wooden Case Outside

3. Loading

4. Ready to delivery

5. Application

6. Demanding Operating Conditions

Our Certifications

Our Main Products

Sanitary Diaphragm Valve

Best stainless steel wing nut anchor bolt for construction fastener bags+cartons+pallets according to customer ' s requirement,Best stainless steel wing nut anchor bolt for construction fastener bags+cartons.

Pressure Vessels as Seal Pot

Welcome to HuFeng Mechanical Technology, your quality provider of seal support systems, reservoirs, heat exchangers and fluid systems.

Filter Housing

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Q: Do you provide samples ? is it free or extra ?

A: Regarding to valve and related accessories, we could offer the sample for free charge but do not pay the cost of freight. For mechanical seal TS6000 reservoir, you have to pay its cost.
