Home > Manufacturing & Processing Machinery > Machine Tools > Honing Machine > ISO NEW Hotsale Cylinder Honing Machine THM170

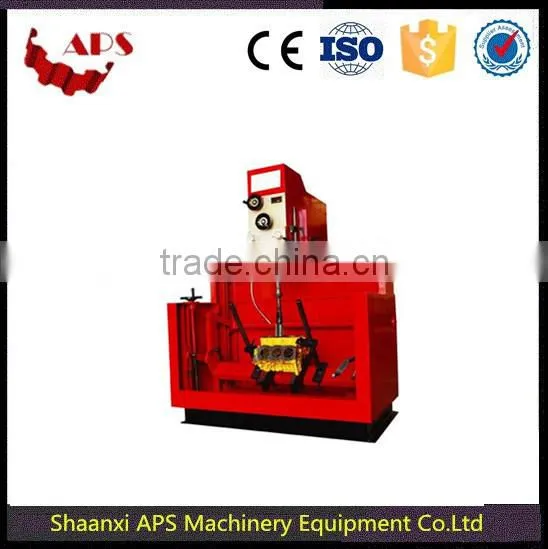

ISO NEW Hotsale Cylinder Honing Machine THM170

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

APS

Model Number:

THM170

Warranty:

1 Years

Contact Supplier Request Quote Chat Now

Shaanxi APS Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name APS

Model Number THM170

Warranty 1 Years

Cylinder boring machine THM170

1. The spindle adopts the stepless variable speed for its reciprocating motion and rotation.

2. Short-stroke honing can be easily realized at any position within the travel of spindle to conveniently revise the workpiece.

3. Diameter of the honing head can be optionally changed during honing.

4. The spindle box is provided with pneumatic system for its convenient and flexible movement and easy centering.

5. Frame type worktable can realize up-down motion and rotation as well as the machining of v-shaped block and any other complicated workpiece even without the special fixture.

Main specifications

Model	THM170
Maximum honing diameter	Φ170 mm
Minimum honing diameter with automatic expansion honer	Φ35 mm
Honer max. stoke	300 mm
Cylinder bearing plate vertical stroke	200 mm
Workpiece max. length	1200 mm
Cylinder bearing plates width	400 mm
Workpiece max. height	600 mm
Spindle head longitudinal stroke	1100 mm
Spindle head transversal stroke	80 mm
Spindle head motor	2 HP
Hydraulic plant motor	1.5 HP
Electropump power	0.30 HP
Spindle rotating speed	100-300 rpm
Spindle alternative motion speed	0-18 m/min
Overall dimensions(L×W×H)	1800×1300×2200 mm
Packing dimensions(L×W×H)	2000×1500×2400 mm
.W./G.W.	1200 /1400 kg
