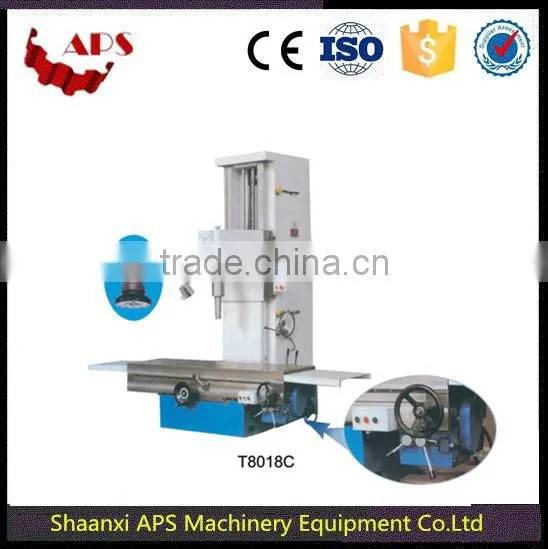

Cylinder Boring Machine - T8018C
The machine is mainly used for boring the cylinder hole of internal combustion engine and the inner hole of cylinder sleeve of cars or tractors, and also for other machine element holeT8018A: mechanical-electronic drive and spindle speed frequency changed speed variation.
T8018C: Cylinder boring-milling
used for processing special heavy motor cylinders
Techinical parameter:
Model | T8018A | T8018B | T8018C | |
Range of boring diameter | Φ30-Φ180 mm | Φ42-Φ180 mm | ||
Max. boring depth | 450 mm | 650 mm | ||
The rotational speed of spindle | 140-610 r/min | 175,230,300,350,460,600 r/min | 140-610 r/min | |
Spindle feed | 0.05,0.10,0.20 mm | 0.05,0.10,0.20 mm | ||
Spindle travel | 500 mm/r | 800 mm/r | ||
The high rising speed of spindle | 2.65 m/min | 2.65 m/min | ||
The distance from the central line of the spindle to the body | 320 mm | 315 mm | ||
Table size | 1200×500 mm | 1680×450 mm | ||
Table travel | Crosswise | 100 mm | 150 mm | |
Lengthwise | 800 mm | 1500 mm | ||
Rapid travel of guide slide | 2800 mm/min | 2800 mm/min | ||
Rapid travel of table | 1400 mm/min | |||
Machine power | Main motor | 3 Kw | 2.4/ 3 Kw | 1400/2800 rpm, |
Motor for quick-moving | 0.75 Kw | 1400 rpm,0.75 Kw | ||
Overall dimensions(L×W×X) | 2000×1235×1920 mm | 2680×1500×2325 mm | ||
Packing dimensions(L×W×X) | 1400×1400×2250 mm | 1578×1910×2575 mm | ||
N.W./G.W. | 2000/2200 kg | 3500/3700 kg | ||

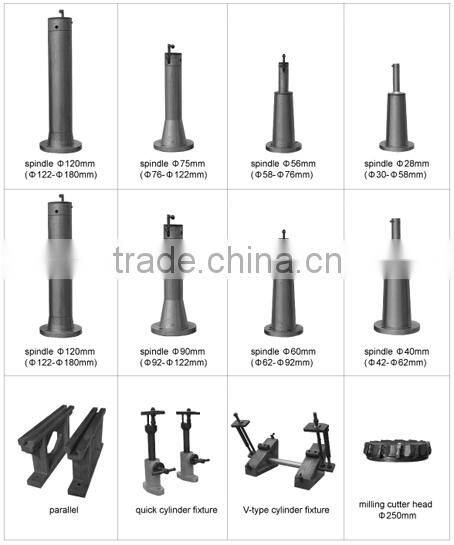

Standard Accessories:
