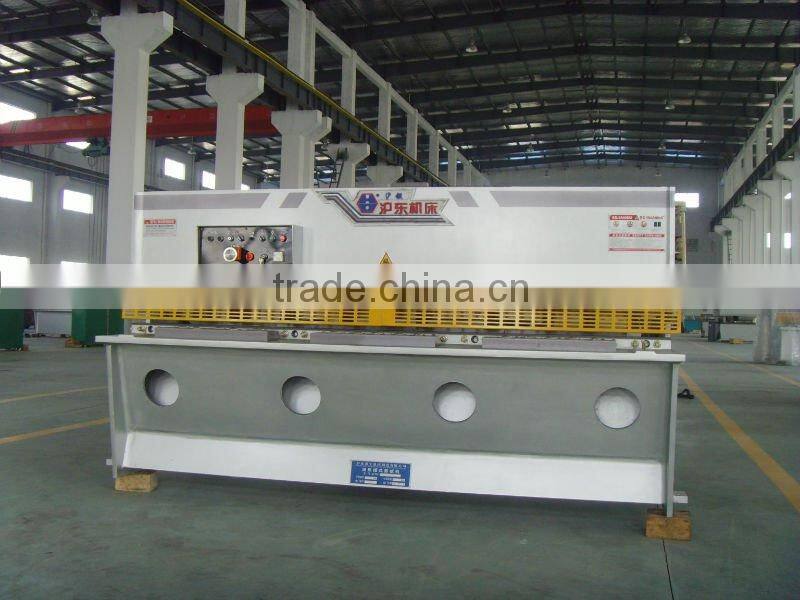

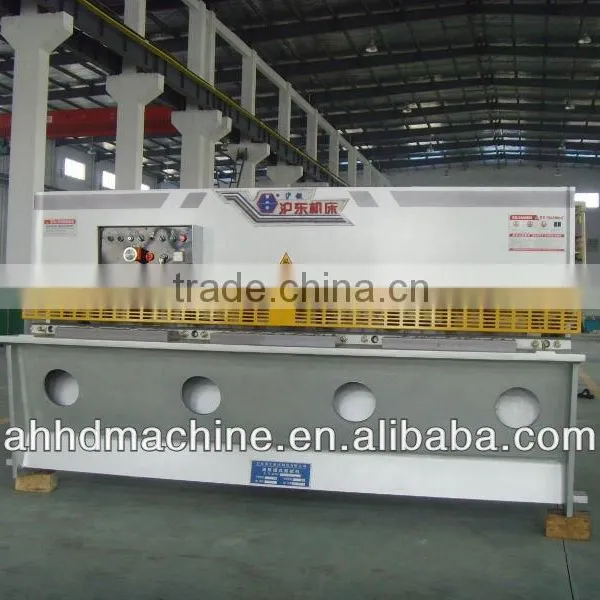

QC12Y-4*2500 cnc hydraulic shearing machine
1. The frame adopts all steel welded structure, with enough strength and rigidity, and by normalizing and high-frequency vibration to eliminate stress, guaranteeing the overall precision.
2. Using the Germany large landing boring and milling machine, use one time processing method, for precision machining, to ensure the accuracy of processing.
3. Hydraulic structure, upper tool carrier with return device, using nitrogen cylinder, fast return speed.
Technical parameters:
1 Shear Max Thickness mm 6
2 Max width mm 3200
3 Travel times times/min 12
4 Back gauge adjust range mm 600
5 Cutting angle ° 1.5
6 worktable height mm 800
7 Throat depth mm 100
8 power KW 7.5
9 Dimension(L x W x H) mm 3840x1700x1620
10 weight kg 5600
Main parts:
1 Hydraulic valve Italy-ATOS

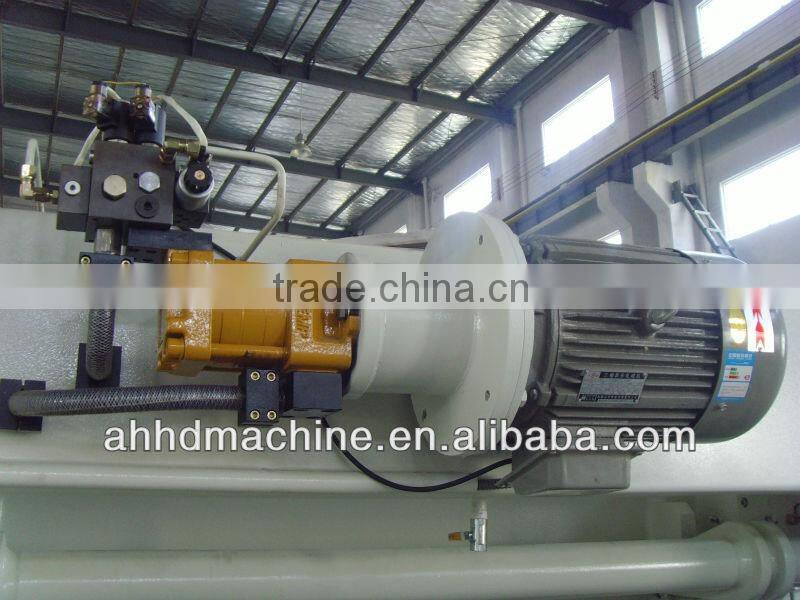

2 Gear pump Chengjie
3 Seal ring Japan NOK
4 Motor Shuangta

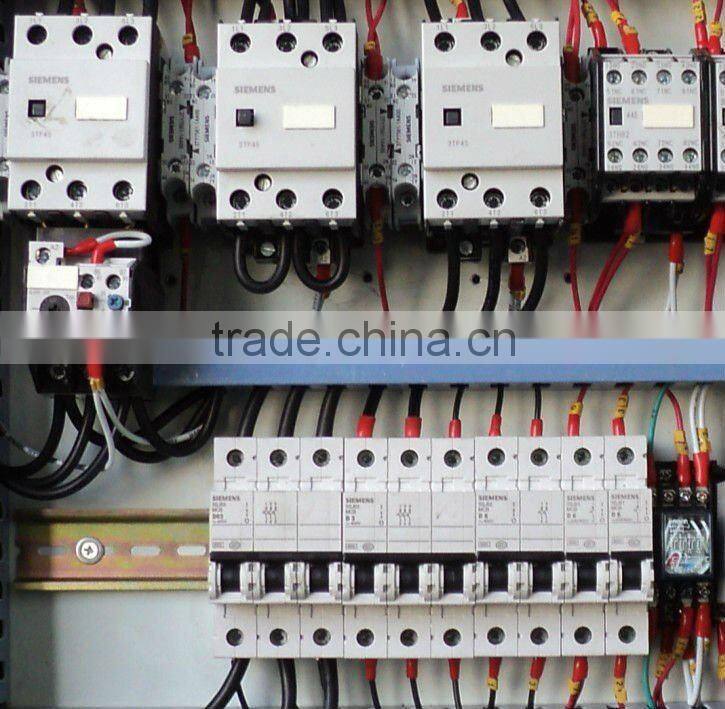

5 Electric components France-Schneider
6 Oil tank Ma’ Anshan
7 Blades Shanghai
8 Oil tube union joint Germany EMB

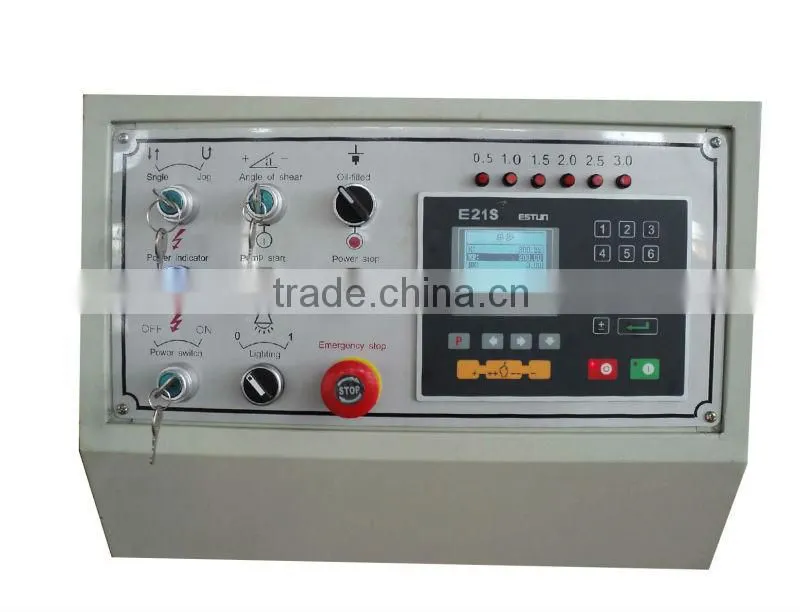

9 E21 NC system ESTUN
