QC12K E200 6X3200 Hydraulic Pendulum Plate Shear

QC12K E200 6X3200 Hydraulic Pendulum Plate Shear thumbnail-1
QC12K E200 6X3200 Hydraulic Pendulum Plate Shear photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
Hudong
Contact Supplier Request Quote Chat Now
Maanshan Hudong Heavy Industry Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name Hudong
Model Number QC12K-E200-6X3200
Rated Power 7.5 KW
Certification CE,ISO9001:2000
Warranty 24months after saling
After-sales Service Provided Engineers available to service machinery overseas
Voltage optional

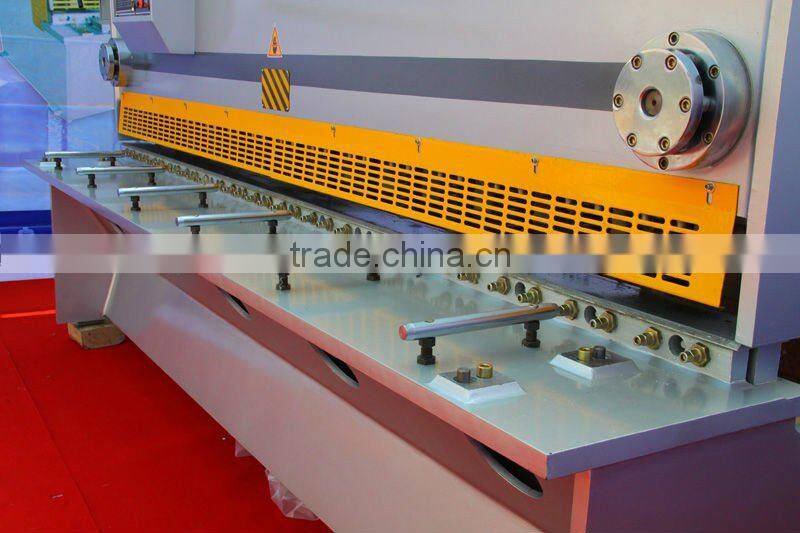

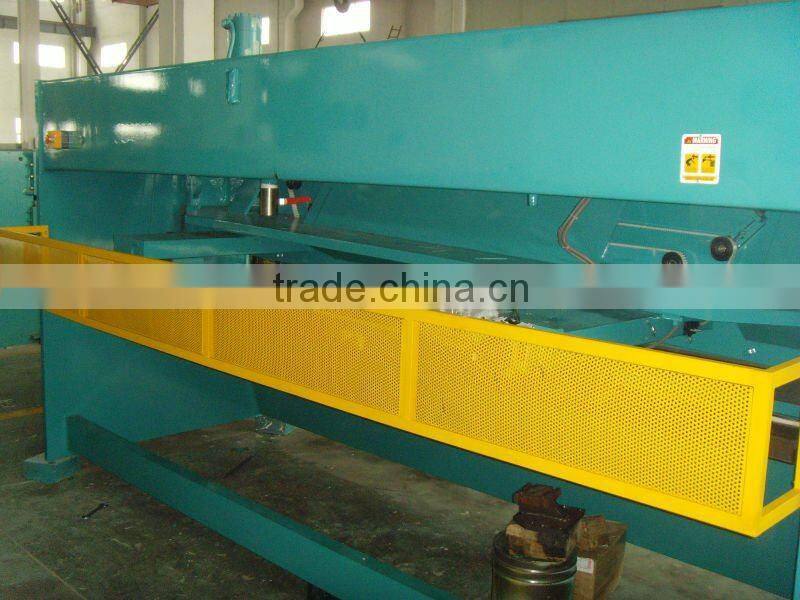

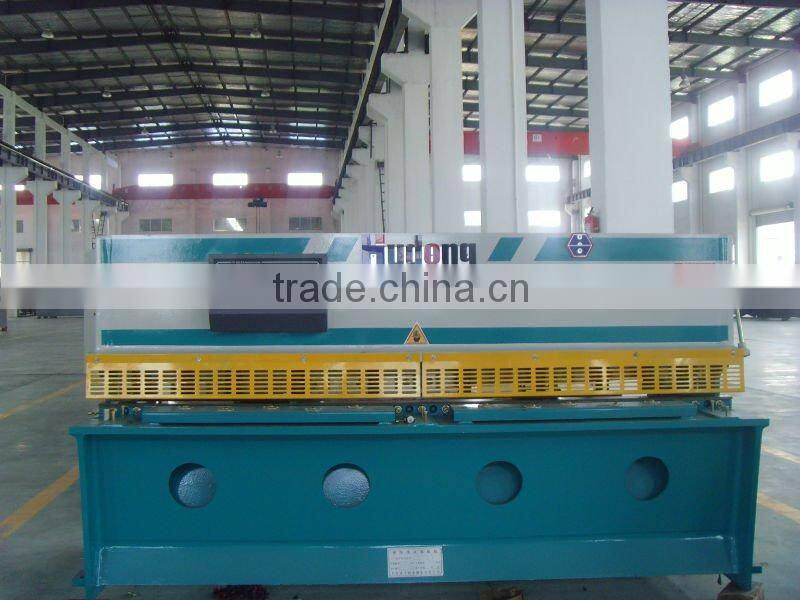

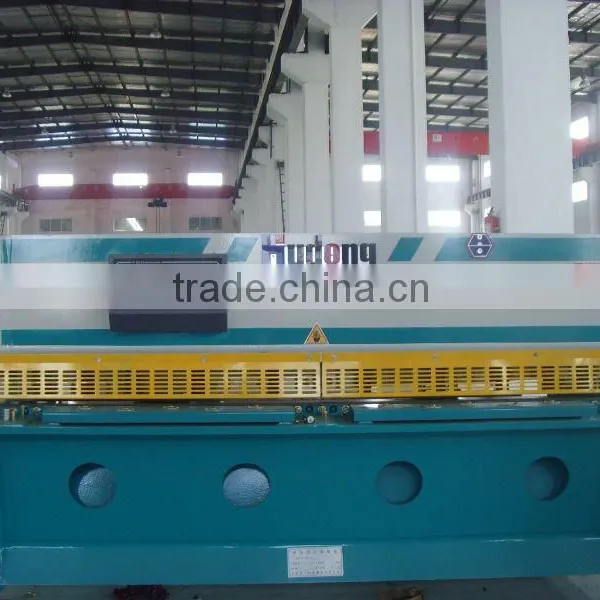

QC12K E200 6X3200 Hydraulic pendulum plate shear



1.The main engine uses the QC12Y series type,equips  cnc system



2.Back gauge with ball screw,liner guide,driven by servo motor with high speed and accuracy.



3.With sheaing counting function,show shearing quantity,system can protect back gauge position, program and parameter after power off.



 4.CNC system has program function, back gauge can run automatically and positioning continuous to achieve automatic adjustment.



QC12Y Series Technical Paremeters



Type  :                              QC12Y-E20-6X3200

 Cutting thickness  :                    6           (mm)

 Cutting Width :                           3200         (mm)

 Cutting Angle  :                           1 ° 30'

 Material  Strength :                     <450        (kn/cm)

 Stopper  Adjust  Range   :         20-500      (mm)

 Ttavel Times   :                          12/min

 Power   :                                     7.5           (kw)

 Dimension   :                     3840X1710X1620   (mm)

QC12K E200 6X3200 Hydraulic pendulum plate shearQC12K E200 6X3200 Hydraulic pendulum plate shearQC12K E200 6X3200 Hydraulic pendulum plate shearQC12K E200 6X3200 Hydraulic pendulum plate shear
