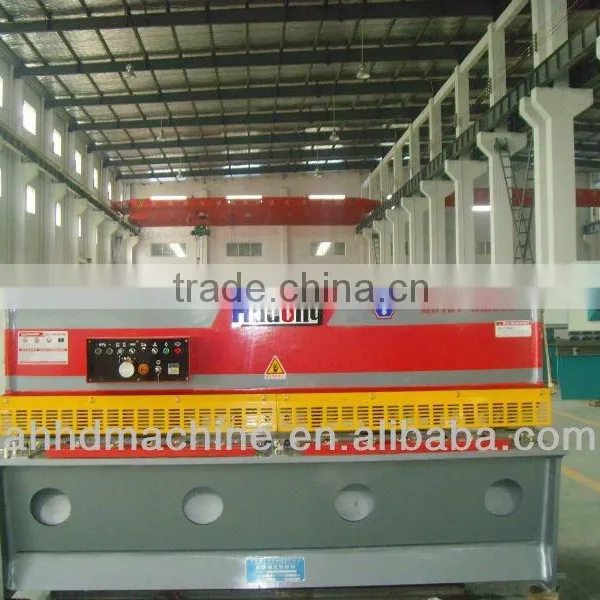

QC12Y CNC Hydraulic Swing Beam Shears

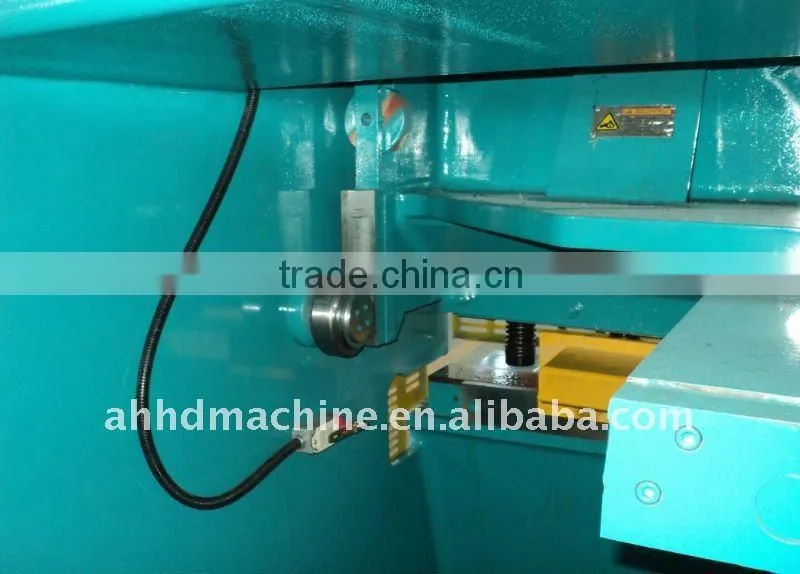

QC12Y Cnc hydraulic swing beam  shears

1 Shear Max Thickness  /mm                               6
2 Max width/ mm                                                3200
3 Travel times times/min                                    12
4 Back gauge adjust range /mm                        600
5 Cutting angle/ °                                                  1.5
6 worktable height /mm                                       800
7 Throat depth /mm                                              100
8 power/ KW                                                         7.5
9 Dimension(L x W x H) /mm                              3840x1700x1620
10 weight /kg                                                         5600

1 Hydraulic valve                                         Italy-ATOS

2 Gear pump                                               Chengjie

3 Seal ring                                                   Japan NOK

4 Motor                                                         Shuangta

5 Electric components                                France-Schneider

6 Oil tank                                                      Ma’ Anshan

7 Blades                                                       Shanghai

8 Oil tube union joint                                    Germany EMB

9 E20  NC system                                       ESTUN

1. The frame adopts all steel welded structure, with enough strength and rigidity, and by normalizing and high-frequency vibration to eliminate stress, guaranteeing the overall precision.
2. Using the Germany large landing boring and milling machine, use one time processing method, for precision machining, to ensure the accuracy of processing.
3. Hydraulic structure, upper tool carrier with return device, using nitrogen cylinder, fast return speed.
