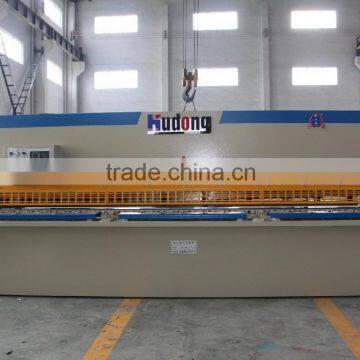

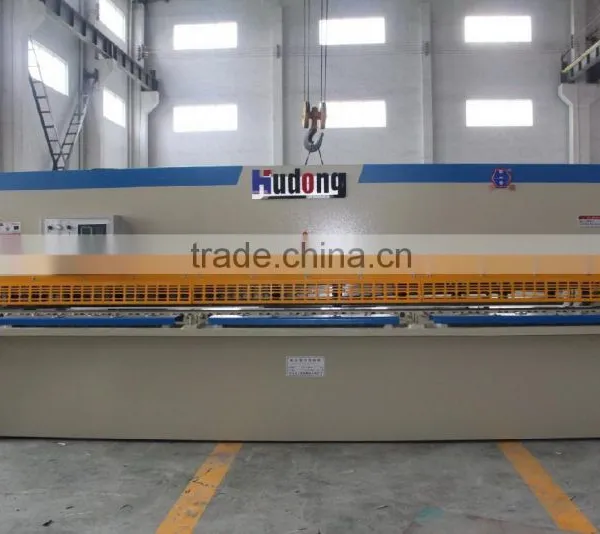

Hydraulic Swing Beam Metal Shearing Machine
US$ 9,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
Huduan
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Pendulum Sheet Metal GuillotineNegotiableMOQ: 1 Set -
QC12K Series Hydraulic CNC Pendulum Plate Shearing MachineUS$ 9,000 - 20,000MOQ: 1 Set
-
QC12Y Series Hydraulic Pendulum Plate ShearsUS$ 9,000 - 20,000MOQ: 1 Set
-
Hydraulic CNC Pendulum Sheet Shearing MachineNegotiableMOQ: 1 Set
-
Hydraulic CNC Pendulum Sheet Metal Shearing MachineNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Anhui, China
Brand Name
Huduan
Model Number
QC12-12x4000-E21
Voltage
220V, optional
Certification
ISO9001:2000
Warranty
12 months after saling
After-sales Service Provided
Engineers available to service machinery overseas

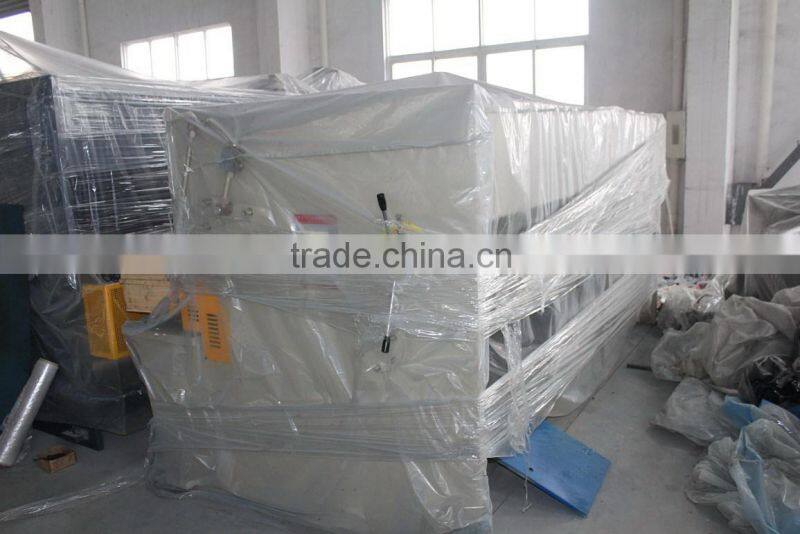

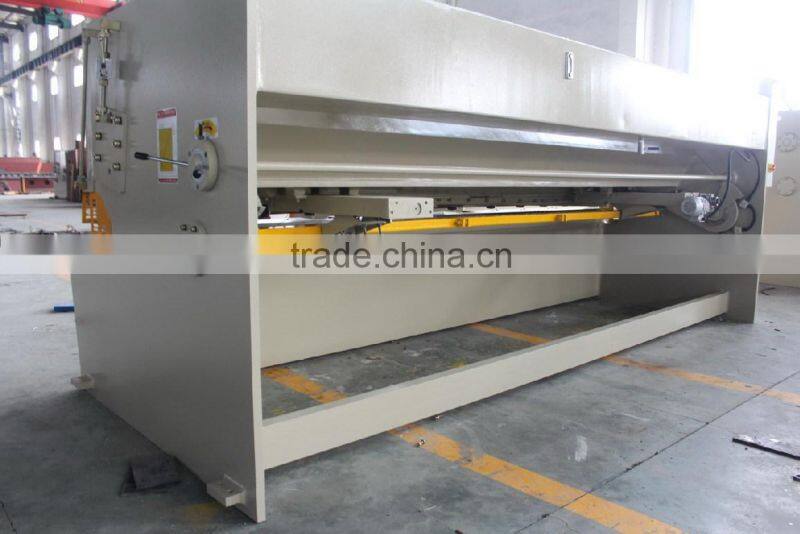

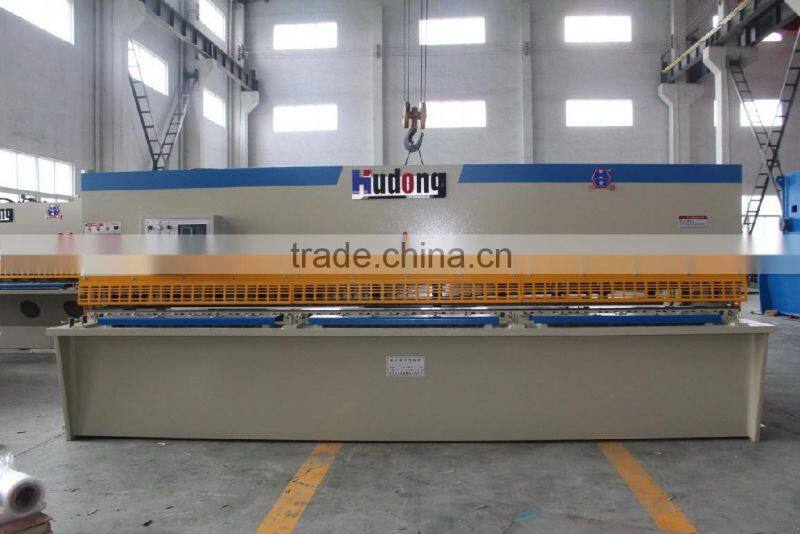

Hydraulic swing beam metal shearing machine
1.30 years manufacturing history
3.ISO9001,CE certificate
3.Good after sale serive
4.Speedy delivery time
Characteristic and structure:
1.stepless control for the stroke,the gap between up blade
and down blade is manually adjusted by handle for high uniformity.
tection fence and the electric interlock to ensure the operation safety.
3.the close loop control system that consists of CNC system and position
coder features fast response speed,high precision and exceptional stablity
and can ensure the accuracy of displacement of backgauge.

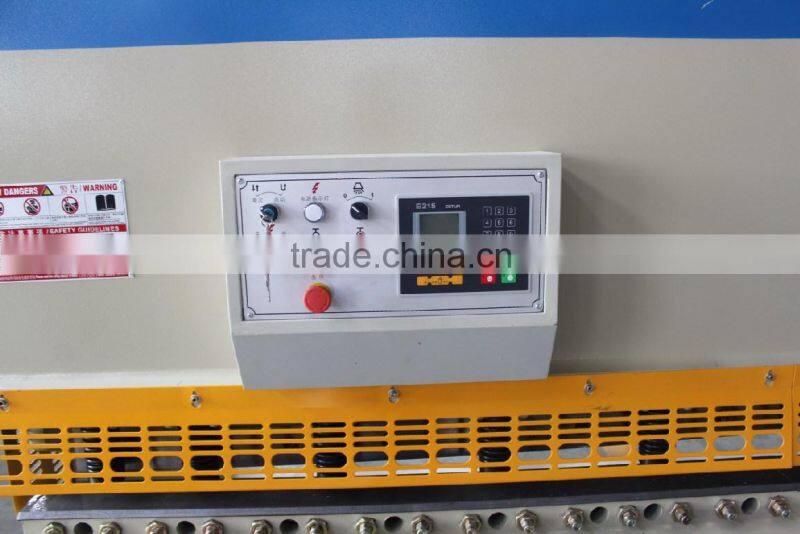

4.E21 CNC system has the accessory functions of compensation
and automatic check.
Technical data:
| Model | Shearing size (T×W)(mm) | Shearing angle | Strokes (min-1) | Adjusting scope of back stop (mm) | Motor power (KW) | Weight (Kg) | Overall dimension (L×W×H)(mm) |
| QC12Y4×2500 | 4×2500 | 1°30’ | ≥16 | 20-600 | 5.5 | 3200 | 3040×1580×1600 |
| QC12Y4×3200 | 4×3200 | 1°30’ | ≥12 | 20-600 | 7.5 | 4600 | 3840×1610×1650 |
| QC12Y4×4000 | 4×4000 | 1°30’ | ≥10 | 20-600 | 7.5 | 5900 | 4640×1880×1700 |
| QC12Y6×2500 | 6×2500 | 1°30’ | ≥16 | 20-600 | 7.5 | 4800 | 3040×1610×1650 |
| QC12Y6×3200 | 6×3200 | 1°30’ | ≥12 | 20-600 | 7.5 | 5600 | 3840×1610×1650 |
| QC12Y6×4000 | 6×4000 | 1°30’ | ≥10 | 20-600 | 7.5 | 7150 | 4640×1880×1700 |
| QC12Y6×5000 | 6×5000 | 1°30’ | ≥8 | 20-600 | 11 | 11000 | 5786×2200×2160 |
| QC12Y6×6000 | 6×6000 | 1°30’ | ≥7 | 20-600 | 15 | 16000 | 6900×2570×2280 |
| QC12Y8×2500 | 8×2500 | 1°30’ | ≥12 | 20-600 | 17.5 | 5500 | 3040×1610×1650 |
| QC12Y8×3200 | 8×3200 | 1°30’ | ≥10 | 20-600 | 17.5 | 6700 | 3840×1610×1650 |
| QC12Y8×4000 | 8×4000 | 1°30’ | ≥8 | 20-600 | 11 | 8300 | 4680×1880×1700 |
| QC12Y8×5000 | 8×5000 | 1°30’ | ≥7 | 20-600 | 15 | 14000 | 5786×2200×2160 |
| QC12Y8×6000 | 8×6000 | 1°30’ | ≥5 | 20-600 | 18.5 | 19000 | 6900×2570×2280 |
| QC12Y10×2500 | 10×2500 | 2° | ≥10 | 20-600 | 11 | 7200 | 3350×2050×1950 |
| QC12Y10×3200 | 10×3200 | 2° | ≥9 | 20-600 | 11 | 8300 | 4050×2050×1950 |
| QC12Y10×4000 | 10×4000 | 2° | ≥8 | 20-600 | 15 | 10700 | 4800×2200×2100 |
| QC12Y12×2500 | 12×2500 | 2° | ≥10 | 20-800 | 15 | 8600 | 3225×2127×2235 |
| QC12Y12×3200 | 12×3200 | 2° | ≥9 | 20-800 | 18.5 | 9800 | 4820×2350×2235 |
| QC12Y12×4000 | 12×4000 | 2° | ≥8 | 20-800 | 18.5 | 11200 | 4820×2350×2300 |
| QC12Y16×2500 | 16×2500 | 2° | ≥8 | 25-800 | 18.5 | 9860 | 3245×2127×2235 |
| QC12Y16×3200 | 16×3200 | 2° | ≥7 | 25-800 | 18.5 | 10800 | 3945×2127×2235 |
| QC12Y16×4000 | 16×4000 | 2° | ≥5 | 25-800 | 22 | 12600 | 4850×2350×2300 |
| QC12Y20×2500 | 20×2500 | 2°30’ | ≥6 | 30-800 | 22 | 15000 | 3440×2088×2570 |
| QC12Y20×3200 | 20×3200 | 2°30’ | ≥5 | 30-800 | 37 | 18000 | 4150×2088×2570 |
| QC12Y20×4000 | 20×4000 | 2°30’ | ≥5 | 30-800 | 37 | 23000 | 4920×2400×2730 |
| QC12Y25×2500 | 25×2500 | 3° | ≥5 | 30-800 | 37 | 17000 | 3500×2400×2500 |
| QC12Y25×3200 | 25×3200 | 3° | ≥4 | 30-800 | 37 | 20000 | 4200×2400×2500 |
| QC12Y25×4000 | 25×4000 | 3° | ≥4 | 30-800 | 37 | 26000 | 4950×2500×2600 |
