Hydraulic CNC Pendulum Sheet Shearing Machine

Hydraulic CNC Pendulum Sheet Shearing Machine thumbnail-1
Hydraulic CNC Pendulum Sheet Shearing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
Hudong
Contact Supplier Request Quote Chat Now
Maanshan Hudong Heavy Industry Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name Hudong
Model Number QC12E18-6*3200
Certification ISO9001:2000
Warranty 24 months after saling
Voltage optional

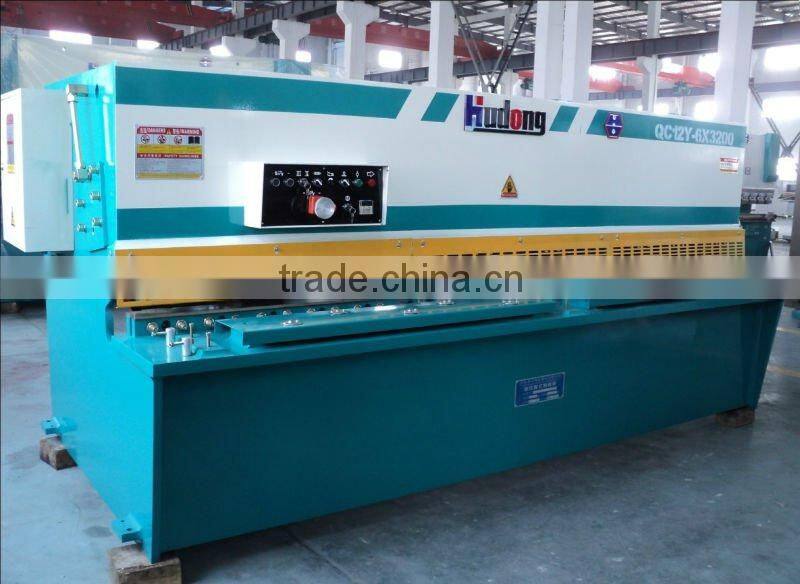

     Hydraulic CNC pendulum sheet shearing machine



1.stepless control for the stroke,the gap between up blade

   and down blade is manually adjusted by handle for high uniformity.

tection fence and the electric interlock to ensure the operation safety.

3.the close loop control system that consists of CNC system and position

   coder features fast response speed,high precision and exceptional stablity

   and can ensure the accuracy of displacement of backgauge.

4.E18 CNC system has the accessory functions of compensation

  and automatic check.

Technical data:

Model Shearing size
(T×W)(mm)		 Shearing angle Strokes
(min-1)		 Adjusting scope of back stop
(mm)		 Motor power
(KW)		 Weight
(Kg)		 Overall dimension
(L×W×H)(mm)
4×2500 4×2500 1°30’ ≥16 20-600 5.5 3200 3040×1580×1600
4×3200 4×3200 1°30’ ≥12 20-600 7.5 4600 3840×1610×1650
4×4000 4×4000 1°30’ ≥10 20-600 7.5 5900 4640×1880×1700
6×2500 6×2500 1°30’ ≥16 20-600 7.5 4800 3040×1610×1650
6×3200 6×3200 1°30’ ≥12 20-600 7.5 5600 3840×1610×1650
6×4000 6×4000 1°30’ ≥10 20-600 7.5 7150 4640×1880×1700
6×5000 6×5000 1°30’ ≥8 20-600 11 11000 5786×2200×2160
6×6000 6×6000 1°30’ ≥7 20-600 15 16000 6900×2570×2280
8×2500 8×2500 1°30’ ≥12 20-600 17.5 5500 3040×1610×1650
8×3200 8×3200 1°30’ ≥10 20-600 17.5 6700 3840×1610×1650
8×4000 8×4000 1°30’ ≥8 20-600 11 8300 4680×1880×1700
8×5000 8×5000 1°30’ ≥7 20-600 15 14000 5786×2200×2160
8×6000 8×6000 1°30’ ≥5 20-600 18.5 19000 6900×2570×2280
10×2500 10×2500 2° ≥10 20-600 11 7200 3350×2050×1950
10×3200 10×3200 2° ≥9 20-600 11 8300 4050×2050×1950
10×4000 10×4000 2° ≥8 20-600 15 10700 4800×2200×2100
12×2500 12×2500 2° ≥10 20-800 15 8600 3225×2127×2235
12×3200 12×3200 2° ≥9 20-800 18.5 9800 4820×2350×2235
12×4000 12×4000 2° ≥8 20-800 18.5 11200 4820×2350×2300
16×2500 16×2500 2° ≥8 25-800 18.5 9860 3245×2127×2235
16×3200 16×3200 2° ≥7 25-800 18.5 10800 3945×2127×2235
16×4000 16×4000 2° ≥5 25-800 22 12600 4850×2350×2300
20×2500 20×2500 2°30’ ≥6 30-800 22 15000 3440×2088×2570
20×3200 20×3200 2°30’ ≥5 30-800 37 18000 4150×2088×2570
20×4000 20×4000 2°30’ ≥5 30-800 37 23000 4920×2400×2730
25×2500 25×2500 3° ≥5 30-800 37 17000 3500×2400×2500
25×3200 25×3200 3° ≥4 30-800 37 20000 4200×2400×2500
25×4000 25×4000 3° ≥4 30-800 37 26000 4950×2500×2600

Hydraulic CNC pendulum sheet shearing machine
