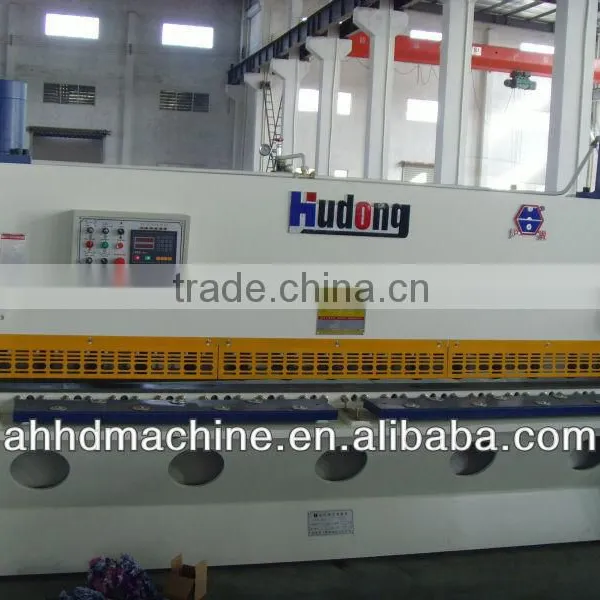

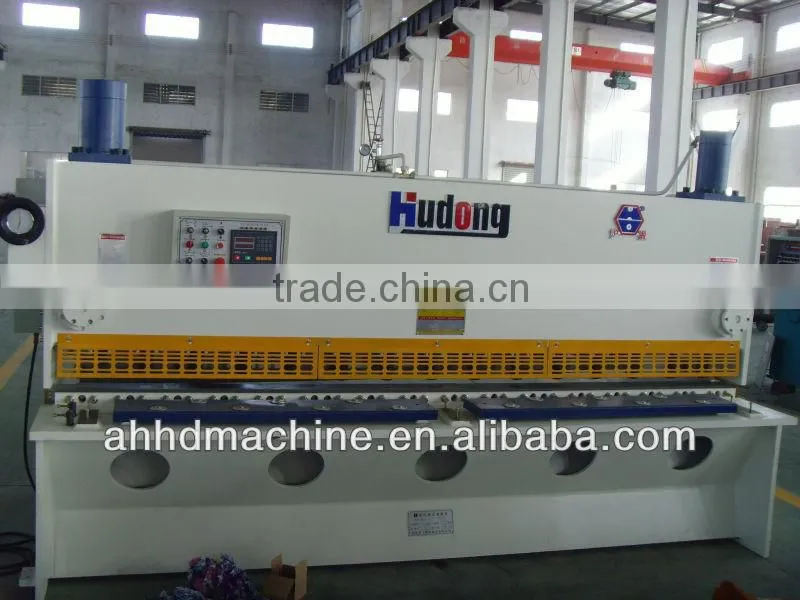

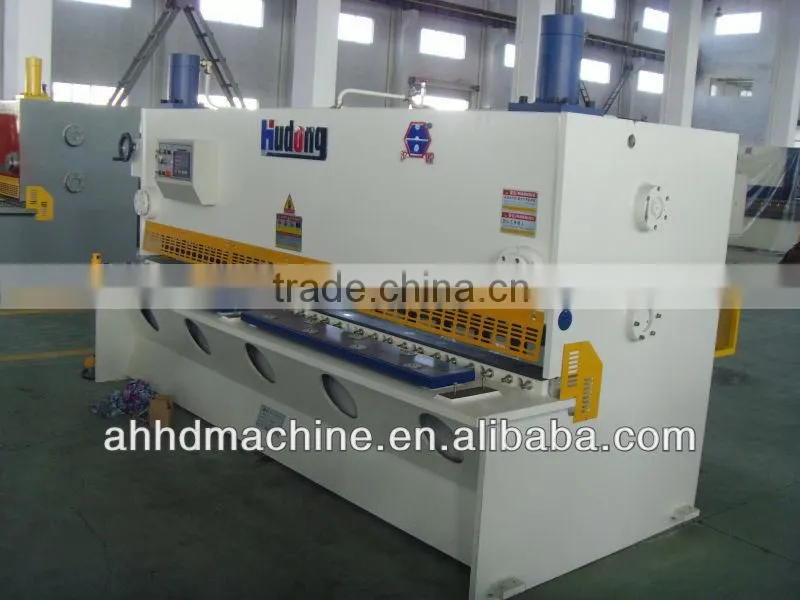

Hydraulic cnc guillotine shears with digital display
Properties and characters:
1.It is the second generation of hydraulic plate shearing machine.
2.Machine frame and knife rest are welded integral. Vibration eliminates stress. Precision is kept well.

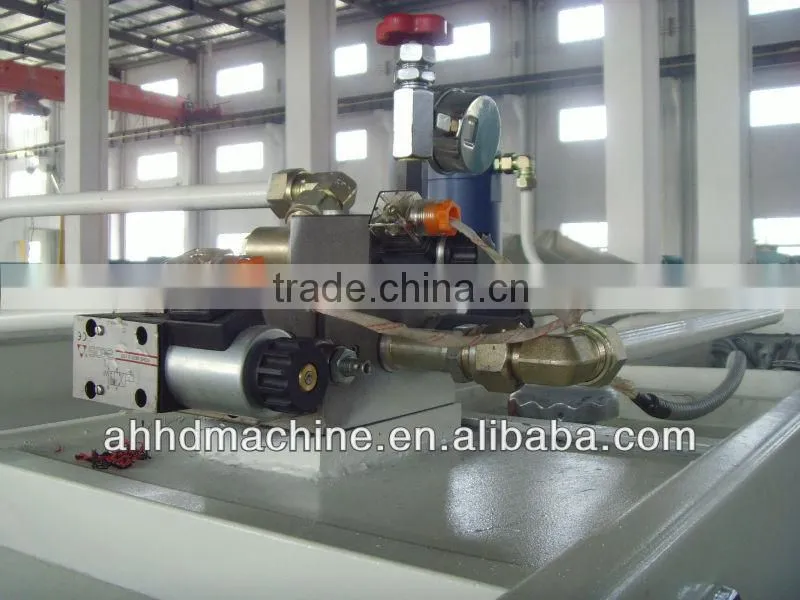

3.The advanced integrated hydraulic system is reliable.
4.Adopt three-point support rolling guide to eliminate gas between supports and improve shearing quality.
5.Gap between blades is adjusted with hand-operated wheels, so it is quick, exact and convenient.
6.The four rectangular blades all can be used for a long time.
7.The up knife rest adopts interior inclining structure for falling conveniently and improving precision.
8.It has the function of shearing by stages.
9.It has the lighting function.

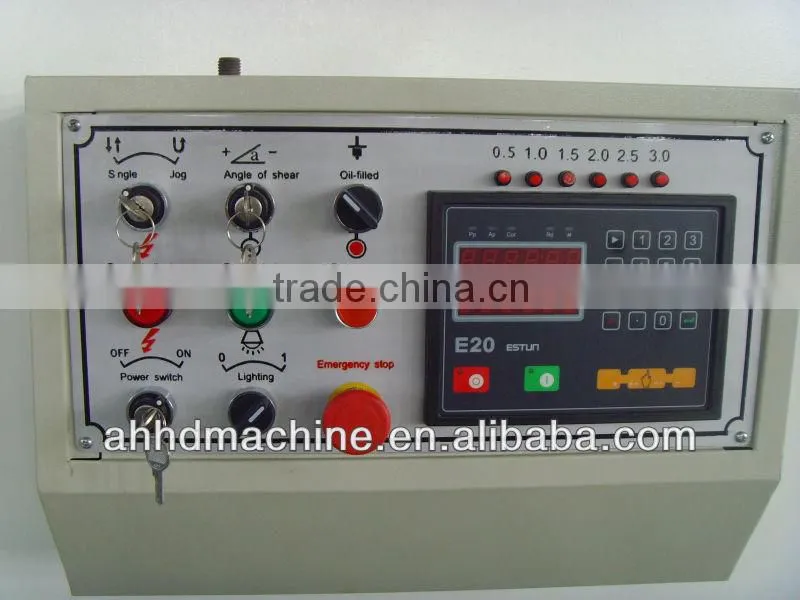

10.Back stop is controlled with E18 numerical control system.
Technical data:
No. | value | unit | remark | ||||
1 | Max cutting thickness | 6 | mm | σb≤450N/mm | |||
2 | Max cutting width | 3200 | mm | ||||
3 | Throat depth | 100 | mm | ||||
4 | Shearing angle | 0.5-1.5 | ° | ||||
5 | Strokes time | 16-45 | Min-1 | ||||
6 | Max stroke volume of up knife | 100 | mm | ||||
7 | Max shearing force | 140 | KN | ||||
8 | Max compressive force feeding | KN | Change with the load | ||||
9 | Max working force of system | 12 | MPa | ||||
10 | Adjustment of back gauge | 10-600 | mm | ||||
11 | Oil pump | model | 25MCY14-1B | ||||
flow | 32 | ml/r | |||||
12 | Master motor | model | Y132M-4 | ||||
power | 7.5 | kW | |||||
Rota e speed | 1440 | r/min | |||||
13 | dimension | length | 3730 | mm | |||
width | 2075 | mm | No including the former ruler | ||||
height | 1970 | mm | |||||
